Product Description
FSLEDV3NW/120/TL Landscape 96 Lumens Steplight Recessed Vertical 3W 120V 4000K is a RAB Lighting trimless, vertical steplight designed for clean, glare-controlled illumination in stairways, corridors, theaters, and outdoor paths. It installs into a recessed 2" x 4" junction box, delivers 96 lumens at neutral 4000K, and carries an IP66 wet-location rating for durable indoor/outdoor performance.
Product Summary
- FSLEDV3NW/120/TL — Trimless, recessed vertical steplight; white finish
- Light output: 96 lm; Wattage: 3.1W (3W LED); Efficacy: ~31 lm/W
- CCT: 4000K neutral; CRI: 82; L70 life: 100,000 hours
- Voltage: 120V; Driver: Constant current (0.108A @120V)
- Rating: IP66, UL Listed wet location; indoor/outdoor
Free shipping on orders over $250
Benefits
- Architectural, trimless look with concealed hardware for a seamless finish in modern interiors and exteriors.
- Glare control from the deep-regressed aperture provides comfortable step and pathway lighting.
- Fast installation into a standard 2" x 4" recessed junction box reduces labor on retrofits and new builds.
- All-weather reliability with IP66 protection, tempered glass lens, and silicone gaskets for dust and water resistance.
Key Features
- Trimless spackle flange for mud-in installation and a clean, flush appearance.
- Die-cast aluminum housing with tempered glass lens and high-temperature silicone gaskets for longevity.
- 100,000-hour L70 LED life for minimal maintenance.
- UL Listed for wet locations and IP66 rated; suitable for indoor or outdoor use.
- 5-year warranty covering light output, color stability, driver, and finish.
Specifications
Technical Specs
| Model | FSLEDV3NW/120/TL (RAB FSLED Series) |
| LED / Driver | Surface-mount LEDs; constant-current driver 0.108A @120V |
| Input Power | 3.1W (3W LED) |
| Voltage | 120V (FSLEDV3…/120) |
| Power Factor / THD | PF ~94.4%; THD ~31.4% @120V |
| Controls | On/Off (no integral dimming specified) |
Physical Specs
| Orientation / Mount | Vertical, recessed into 2" x 4" junction box |
| Trim | Trimless (spackle flange) — concealed hardware |
| Finish | White (W) |
| Construction | Precision die-cast aluminum; tempered glass lens; silicone gaskets |

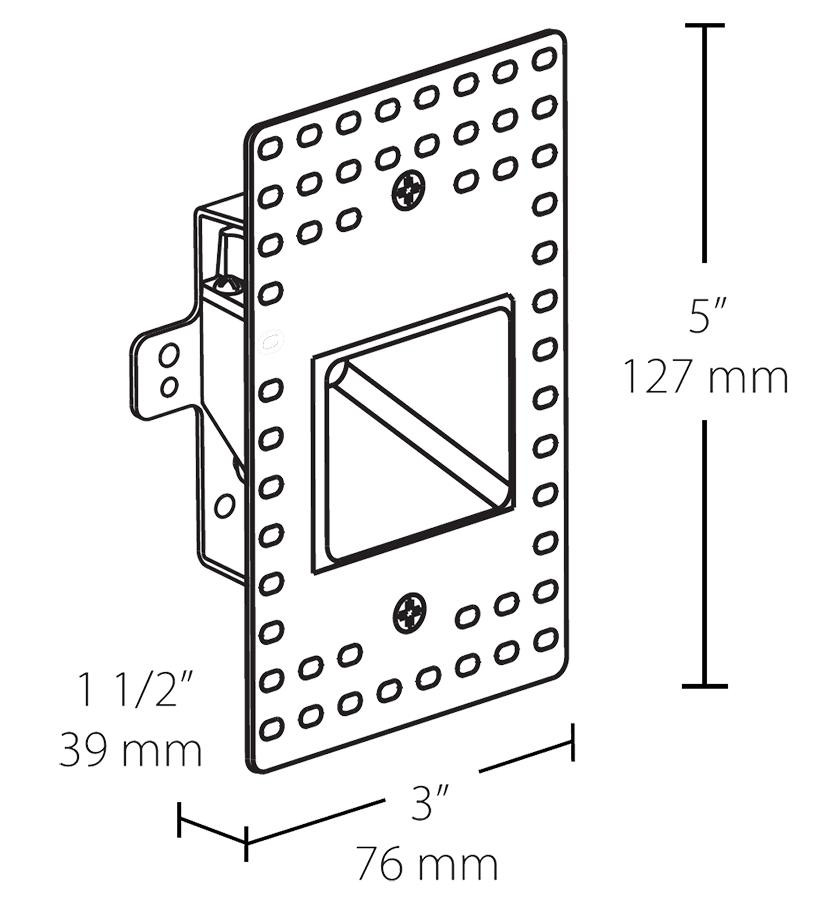

| Dimensions | H 5" × W 3" × D 1-1/2" (trimless plate outline) |
| Weight | 0.6 lb |
Performance Specs
| Lumen Output | 96 lm |
| Color Temperature | 4000K (Neutral White) |
| CRI | 82 |
| Efficacy | ~31 lm/W |
| Rated Life | 100,000 hours (L70) |
Compliance & Safety
| Listings | UL Listed wet location |
| Ingress Protection | IP66 dust/water protection |
| Testing | LM-79 and LM-80 tested components |
| Warranty | 5-year limited |
| Max Ambient | Up to 40°C (104°F); cold start to −40°C (−40°F) |
Application Examples
- Stair treads, landings, and corridor step-marking
- Hospitality paths, theaters, and auditoriums where glare control matters
- Residential entries and decks; commercial vestibules and walkways
- Indoor/outdoor projects seeking a trimless, mud-in aesthetic
Installation Tips
- Use a standard 2" x 4" recessed junction box; connect line (black), neutral (white), and ground per the wiring diagram.
- For trimless installs, fasten the LED housing and spackle flange to the box, then spackle flush and level with the wall.
- For outdoor use, apply a weatherproof silicone sealant around the housing, flange, and box to prevent moisture ingress.
- Do not expose wiring to sharp edges; de-energize the circuit before service.
- Lens replacement: remove LED holder (4 screws), replace frosted lens in gasket, and reassemble.
FAQ
Q: What junction box does FSLEDV3NW/120/TL require?
A: It installs into a 2" x 4" recessed junction box supplied by others.
Q: Is the fixture rated for outdoor/wet locations?
A: Yes. It is UL Listed for wet locations and carries an IP66 ingress protection rating.
Q: What are the light output and color specs?
A: The luminaire delivers 96 lumens at 4000K with 82 CRI.
Q: What is the expected service life?
A: It’s rated for an L70 of 100,000 hours based on LM-80 results and TM-21 calculations.
Q: Can I mud this in for a flush, trimless look?
A: Yes. The /TL version includes a spackle flange for trimless installations; spackle level with the wall surface.
Q: What are the overall dimensions?
A: The trimless plate is approximately 5" H × 3" W × 1-1/2" D.
Q: Are there other CCTs or finishes?
A: Family options include 2700K, 3000K, and 4000K, and finishes of bronze, white, black, and matte silver; this model is 4000K in white.
Q: What maintenance is recommended?
A: Clean with a non-abrasive solution; do not open the fixture to clean the LED. The frosted lens can be replaced following the steps in the guide.
