Product Description

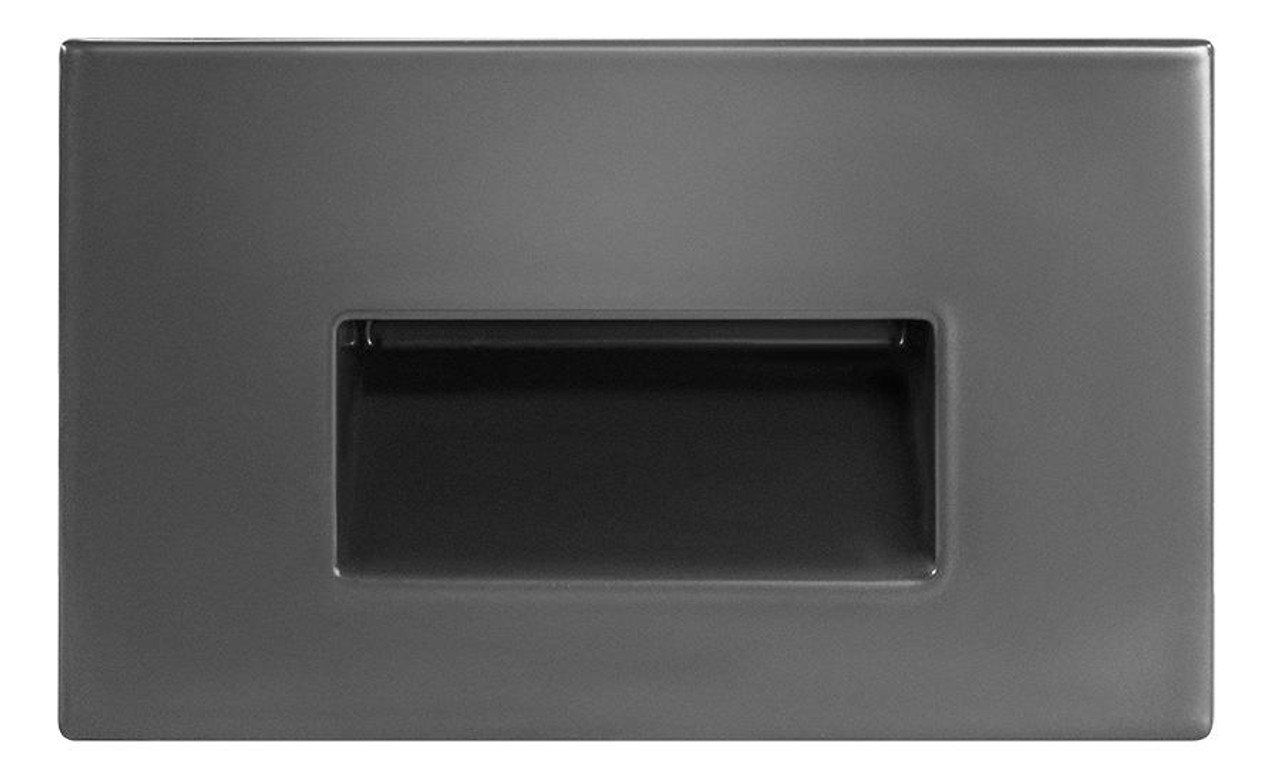

RAB FSLEDH3Y/120 Landscape 37 Lumens Recessed Horizontal Steplight is a compact, energy-efficient lighting solution designed for safe pathway illumination in both indoor and outdoor environments. Built by RAB Lighting, this 3W recessed steplight delivers warm 3000K illumination with a clean architectural look, making it ideal for residential and commercial applications requiring subtle, glare-free lighting.
Product Summary
- Lumen Output: 37 lm
- Wattage: 3W
- Color Temperature: 3000K
- Voltage: 120V
- CRI: 82
- IP Rating: IP66
- Lifespan: 100,000 hours
- Mounting: Recessed 2" x 4" junction box
- Location Rating: Wet location rated
- Finish: Bronze
- Warranty: 5-Year
- Shipping: Free shipping on orders over $250
Product Benefits
- Provides low-level, glare-free illumination for steps, pathways, and corridors, improving safety and visibility.
- Designed for indoor and outdoor applications, with durable construction and wet location rating.
- Offers energy-efficient performance with only 3W consumption and long 100,000-hour lifespan.
- Delivers a clean architectural aesthetic with concealed hardware and recessed mounting.
Key Features
- Deep Regressed Light Source: Minimizes glare while providing subtle illumination.
- Recessed Installation: Fits standard 2" x 4" junction boxes for easy installation.
- Durable Construction: Precision die-cast aluminum housing with tempered glass lens.
- Weather Resistant: IP66 rated for protection against dust and water.
- Long Lifespan: 100,000-hour LED performance reduces maintenance.
- High Reliability: Constant current driver with stable performance.
- Environmentally Friendly: Mercury and UV free, RoHS compliant.
Specifications
Technical Specifications
| Wattage | 3W |
| Voltage | 120V |
| Current | 0.108A |
| Power Factor | 94.8% |
| THD | 31.4% |
Performance Specifications
| Lumen Output | 37 lm |
| Efficacy | 12.3 lm/W |
| Color Temperature | 3000K |
| CRI | 82 |
| Lifespan | 100,000 hours |
Physical Specifications
| Housing | Die-cast aluminum |
| Lens | Tempered glass |
| Finish | Bronze |
| Mounting | Recessed 2" x 4" junction box |
| Weight | 0.4 lbs |
Compliance & Ratings
| UL Listed | Wet location rated |
| IP Rating | IP66 |
| Testing | IES LM-79, LM-80 |
| Operating Temperature | -40°C to 40°C |
Applications
- Residential and commercial stairways
- Walkways and pathways
- Hallways and corridors
- Outdoor landscaping and hardscaping features
- Hospitality and architectural lighting
Installation Tips
- Install into a standard 2" x 4" junction box for secure recessed mounting.
- Ensure proper grounding and wiring connections according to code.
- Apply weatherproof silicone sealant when installing outdoors for maximum protection.
- Turn off power before installation or maintenance to ensure safety.
FAQ
Is this steplight suitable for outdoor use?
Yes, it is UL listed for wet locations and features an IP66 rating, making it suitable for outdoor environments.
What type of mounting does this fixture require?
This steplight is designed for recessed installation into a standard 2" x 4" junction box.
What color temperature does this light provide?
The fixture provides a warm 3000K color temperature ideal for ambient and pathway lighting.
How long does the LED last?
The LED has a rated lifespan of up to 100,000 hours based on LM-80 testing and TM-21 calculations.
Is the light glare-free?
Yes, the deep recessed light source design helps reduce glare while maintaining visibility.
Can this be used in cold weather?
Yes, it can start and operate in temperatures as low as -40°C.
Does the fixture require maintenance?
Minimal maintenance is required. Clean with a non-abrasive solution and avoid opening the fixture.
Is this product energy efficient?
Yes, it operates at only 3W while delivering efficient pathway illumination.
