Product Description

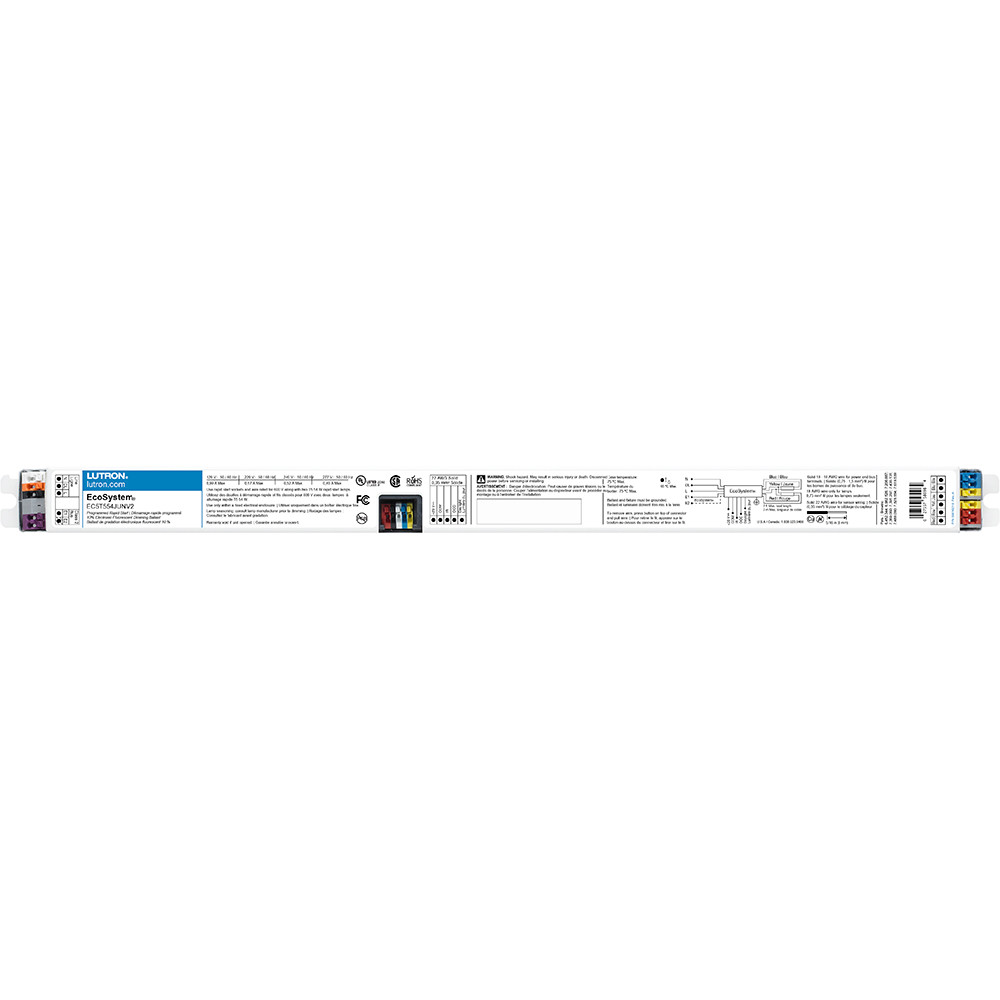

EC5T554JUNV2 Ecosystem 10 Percent 3-WIRE And Ecosystem Digital Link Controlled is a Lutron EcoSystem five-control-input digital dimming ballast designed for 2 F54T5 lamps. It provides continuous, flicker-free dimming from 100% to 10% and supports EcoSystem digital link control, 3-wire phase control, daylight sensing, occupancy sensing, and personal control through an IR receiver or wallstation.
Product Summary
- Lamp Type: F54T5, 54W
- Number of Lamps: 2
- Input Voltage: 120V, 220/240V, 277V at 50/60Hz
- Dimming Range: 100% to 10% relative light output
- Ballast Factor: 1.0
- Case Type: J
Free shipping on orders over $250
Product Benefits
- Provides continuous, flicker-free dimming from 100% to 10% for flexible fluorescent lighting control.
- Supports multiple control methods, including EcoSystem digital link, 3-wire phase control, daylight sensor, occupancy sensor, and personal control.
- Integral sensor connections can power and respond to one occupancy sensor, one daylight sensor, and one personal control input.
- Programmed rapid start operation is designed to support full rated lamp life while dimming and cycling.
Key Features
- Five control inputs: EcoSystem digital link, 3-wire phase control input, daylight sensor, occupancy sensor, and personal control.
- Continuous dimming: 100% to 10% relative light output.
- Lamp startup: Lamps turn on to any dimmed level without flashing to full brightness.
- Programmed rapid start: Supports rated lamp life during dimming and switching cycles.
- Low harmonic distortion: Less than 10% THD.
- Power factor: 0.95 minimum.
- Output regulation: Constant ±2% light output for line voltage variations of ±10%.
- Non-volatile memory: Restores ballast settings after a power failure.
- End-of-lamp-life protection: Protection circuitry supports safe operation throughout lamp life.
- Ultra-quiet operation: Sound Rating Class A.
Specifications
Technical Specifications
| Model | EC5T554JUNV2 |
| Ballast Type | EcoSystem Ballast |
| Control Type | 5 control inputs: EcoSystem digital link, 3-wire phase control input, daylight sensor, occupancy sensor, and personal control |
| Lamp Type | F54T5 |
| Lamp Wattage | 54W |
| Number of Lamps | 2 |
| Input Voltage | 120V, 220/240V, 277V |
| Frequency | 50/60Hz |
| Case Type | J |
| Ballast Factor | 1.0 |
Performance Specifications
| Dimming Range | 100% to 10% measured relative light output |
| Lamp Starting | Programmed rapid start |
| Power Factor | 0.95 minimum |
| Total Harmonic Distortion | Less than 10% |
| Lamp Current Crest Factor | Less than 1.7 |
| Light Output Variation | Constant ±2% light output for line voltage variations of ±10% |
| Maximum Inrush Current | 3A per ballast at 277V; 7A per ballast at 120V |
| Class 2 Output | +20V, 50mA maximum |
Model Performance
| 277V Input Current | 0.40A |
| 277V Input Power | 110.1W |
| 240V Input Current | 0.52A |
| 240V Input Power | 119.0W |
| 120V Input Current | 0.99A |
| 120V Input Power | 119.3W |
| System Lumens | 10,000 lm |
| System Efficacy at 277V | 91 lm/W |
| System Efficacy at 240V | 84 lm/W |
| System Efficacy at 120V | 84 lm/W |
Physical Specifications
| Case Length A | 18.0 in (457 mm) |
| Case Length B | 17.68 in (449 mm) |
| Dimension C | 6.82 in (173 mm) |
| Dimension D | 0.394 in (10 mm) |
| Dimension E | 1.0 in (25 mm) |
| Dimension F | 1.18 in (30 mm) |
| Maximum Case Temperature | 167°F (75°C) |
| Minimum Lamp Starting Temperature | 50°F (10°C) |
| Relative Humidity | Less than 90% non-condensing |
| Sound Rating | Class A |
Compliance & Safety
| UL | UL Listed, evaluated to the requirements of UL935 |
| CSA | CSA certified, evaluated to the requirements of C22.2 No. 74 |
| Thermal Protection | Class P thermally protected |
| Ballast Standard | Meets ANSI C82.11 High Frequency Ballast Standard |
| Surge Protection | Meets ANSI C62.41 Category A surge protection standards up to and including 4kV |
| FCC | Complies with Part 18 Non-Consumer Limits of the FCC Rules |
Applications
- Lighting systems requiring 100% to 10% fluorescent dimming.
- EcoSystem digital-link lighting control installations.
- 3-wire phase-control applications using compatible Lutron controls.
- Installations using daylight sensors, occupancy sensors, wallstations, or IR receivers.
- 2-lamp F54T5 fluorescent fixtures.
Installation Tips
- The ballast and fixture must be grounded for proper dimming.
- Turn the supply breaker OFF before wiring the ballast, EcoSystem digital link, or connected sensors.
- For T5 lamps, ballast-to-lamp socket wiring must not exceed 7 ft (2 m).
- Mount T5 and T5HO lamps 1/16 in to 3/8 in (1.6 mm to 9.5 mm) away from the grounded metal surface.
- Lamps must never touch the ground plane and should be installed without obstruction.
- Keep Class 1 and Class 2 wiring separate and follow all applicable national and local electrical codes.
- Class 2 sensor terminals accept only one 22 AWG (0.25 mm²) solid conductor per terminal.
- Power wiring, lamp wiring, and EcoSystem digital link terminals accept only one 16 or 18 AWG (0.75 or 1.5 mm²) solid conductor per terminal.
Frequently Asked Questions
What lamps does the EC5T554JUNV2 operate?
It is configured for 2 F54T5 54W lamps.
What is the dimming range?
The ballast provides continuous dimming from 100% to 10% measured relative light output.
What input voltages does the EC5T554JUNV2 support?
It supports 120V, 220/240V, and 277V operation at 50/60Hz.
What control inputs are supported?
The five control inputs are EcoSystem digital link, 3-wire phase control, daylight sensor, occupancy sensor, and personal control through an IR receiver or wallstation.
Can sensors connect directly to the ballast?
Yes. The integral sensor connection provides power for and responds to one occupancy sensor, one daylight sensor, and one personal control input.
How many devices can an EcoSystem digital link support?
Each EcoSystem digital link supports up to 64 digital ballasts, 64 occupancy sensors, 16 daylight sensors, and 64 wallstations or IR receivers.
Are the EcoSystem digital link wires polarity sensitive?
No. E1 and E2 are polarity insensitive and may be wired in any topology.
What is the maximum ballast case temperature?
The ballast case temperature must not exceed 167°F (75°C) at any point on the ballast.
