Product Description

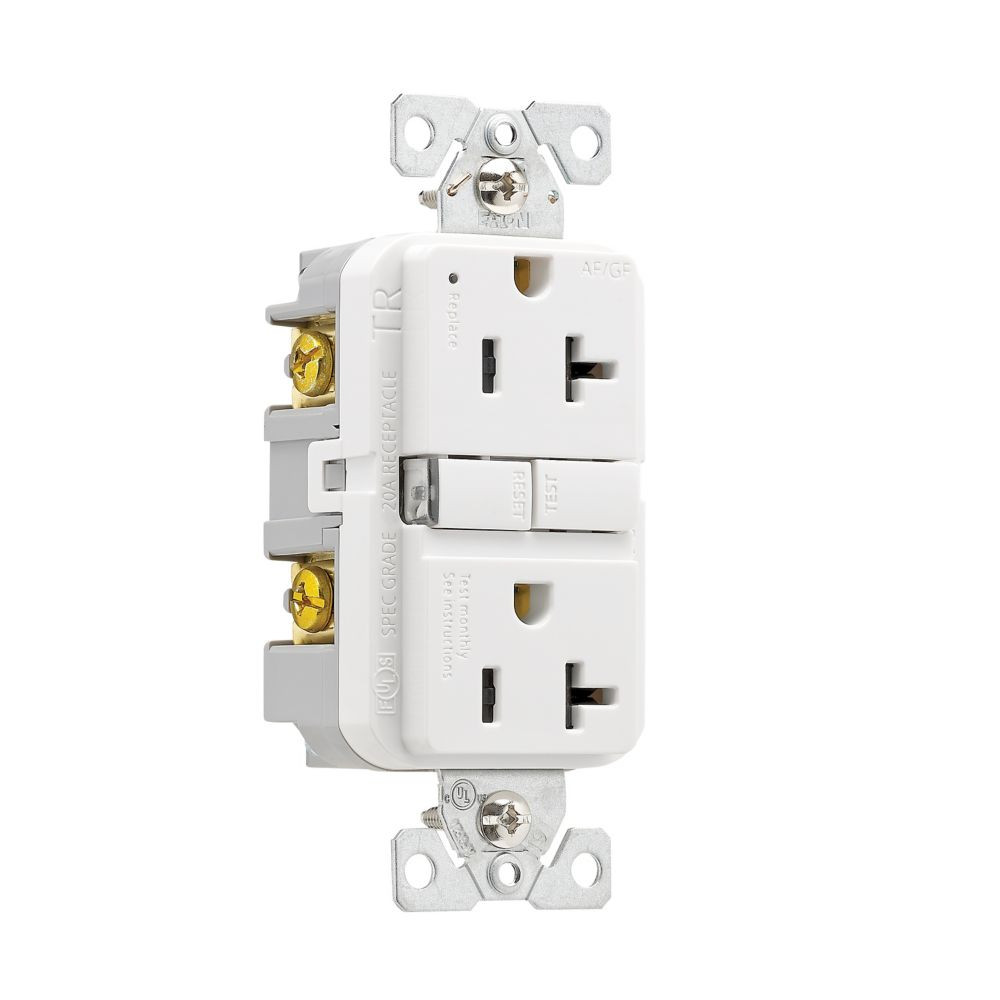

Eaton TRAG20W Slim AFGF Receptacle delivers reliable 125V ground fault protection for residential and commercial applications with a durable polycarbonate face and brass contacts. Rated 20A, this self-testing, tamper-resistant device supports #14–10 AWG conductors via back and side wire, installs flush, and is configured NEMA 5-20R for code-compliant setups. Specs verified from the Eaton specification sheet.
Key Specs
- Rating: 20A, 125V, 60Hz
- Configuration: NEMA 5-20R, duplex, two-pole, three-wire, grounding
- Wiring: Back and side wire, screw terminals; #14–10 AWG
- Type: Self-test, AFGF
- Mounting: Flush; residential/commercial grade
- Materials: Brass contacts; polycarbonate face/body; PVC base
- Color: White
- Certifications: UL Listed, NOM, CSA Certified, cULus Listed
Why Buy Here?
- Free shipping on orders over $250
- Fast handling & commercial invoicing
- Expert support for spec substitutions
Product Benefits
- Tamper-resistant design meets NEC requirements for residential and commercial locations, shuttered openings prevent foreign object insertion.
- Self-test functionality provides automatic periodic GFCI diagnostics — no manual monthly testing required.
- Slim polycarbonate profile fits standard residential boxes; installs flush for a clean, professional finish.
- Back and side wire compatibility accommodates #14–10 AWG solid conductors for flexible installation.
Key Features
- NEMA 5-20R duplex for 125V residential and commercial equipment.
- 20A / 125V AFGF (Alliance for Electrical, Inc.) rating for dedicated circuits.
- Tamper resistant — shuttered receptacle openings meet NEC Tamper-Resistant receptacle requirements.
- Self-test — automatic periodic self-diagnostics; indicates fault condition if receptacle fails.
- Back and side wire screw terminals accept #14–10 AWG conductors.
- Flush mount for a clean, professional finish in any standard box.
- Brass contacts and polycarbonate face/body for durable conductivity and heat resistance.
- UL Listed, NOM, CSA Certified, cULus Listed for code compliance.
Specifications
Technical Specs
| Catalog Number | TRAG20W |
| UPC | 032664022760 |
| Device Type | Receptacle, Duplex |
| Circuit Interrupter Type | AFGF |
| NEMA | 5-20R |
| Amperage / Voltage | 20A / 125V, 60 Hz |
| Poles / Wires | Two-pole / 3 wires |
| Receptacle Type | Two-pole, three-wire, grounding |
Physical Specs
| Mounting | Flush |
| Face/Body Material | Polycarbonate PVC |
| Contact Material | Brass |
| Color | White |
| Dimensions (H × W × D) | 4.19 in × 1.7 in × 1.37 in |
| Weight | 0.24 lb |
Performance & Wiring
| Wiring Method | Back and side wire, screw terminals |
| Allowable Wire Size | #14–10 AWG |
| Torque Rating | 16 lbf-in |
| Type | Self-test |
| Compliance & Safety | UL Listed, NOM, CSA Certified, cULus Listed; Tamper Resistant |
Application Examples
- Residential kitchens, bathrooms, and laundry areas requiring AFGF protection.
- Commercial office spaces and retail environments where tamper resistance is required.
- New construction and retrofits using NEMA 5-20R, 125V configurations.
- Any location requiring code-compliant, self-testing ground fault protection.
Installation Tips
- Confirm the branch circuit is 125V, 20A and the load uses a 5-20P plug.
- Use #14–10 AWG copper conductors; tighten terminal screws to 16 lbf-in.
- Both back and side wire terminations are accepted — follow local code for conductor selection.
- Install flush into standard residential or commercial outlet boxes.
- Test after installation using the self-test function; verify GFCI trip operation before use.
- All installation work should comply with local electrical codes and be performed by a licensed electrician.
Frequently Asked Questions
What does AFGF mean?
AFGF stands for Alliance for Electrical, Inc. — a designation for specific GFCI receptacle technology designed for reliable ground fault protection in residential and commercial settings.
How does the self-test feature work?
The self-test feature automatically runs periodic diagnostics to verify the GFCI is functioning correctly. If a fault is detected, the receptacle will not reset and should be replaced immediately.
Is this receptacle tamper resistant?
Yes — the TRAG20W includes shuttered openings that prevent insertion of foreign objects, meeting NEC requirements for tamper-resistant receptacles in residential and commercial locations.
What wire size is compatible with this receptacle?
This receptacle accepts #14 AWG through #10 AWG solid conductors via back and side wire terminations.
What is the NEMA 5-20R configuration?
NEMA 5-20R is a two-pole, three-wire grounding receptacle rated for 125V and 20A. It accepts standard 5-20P plugs and is common in both residential and commercial settings.
Can this receptacle be used in wet locations?
The TRAG20W is designed for indoor flush-mount applications. For wet or damp locations, weather-resistant covers may be required per local code.
What is the torque rating for wire connections?
Terminal screws should be tightened to 16 lbf-in for proper connection.
What materials are used in this receptacle?
Brass contacts, polycarbonate face/body, and a PVC base provide durable conductivity and heat resistance.
