Product Description

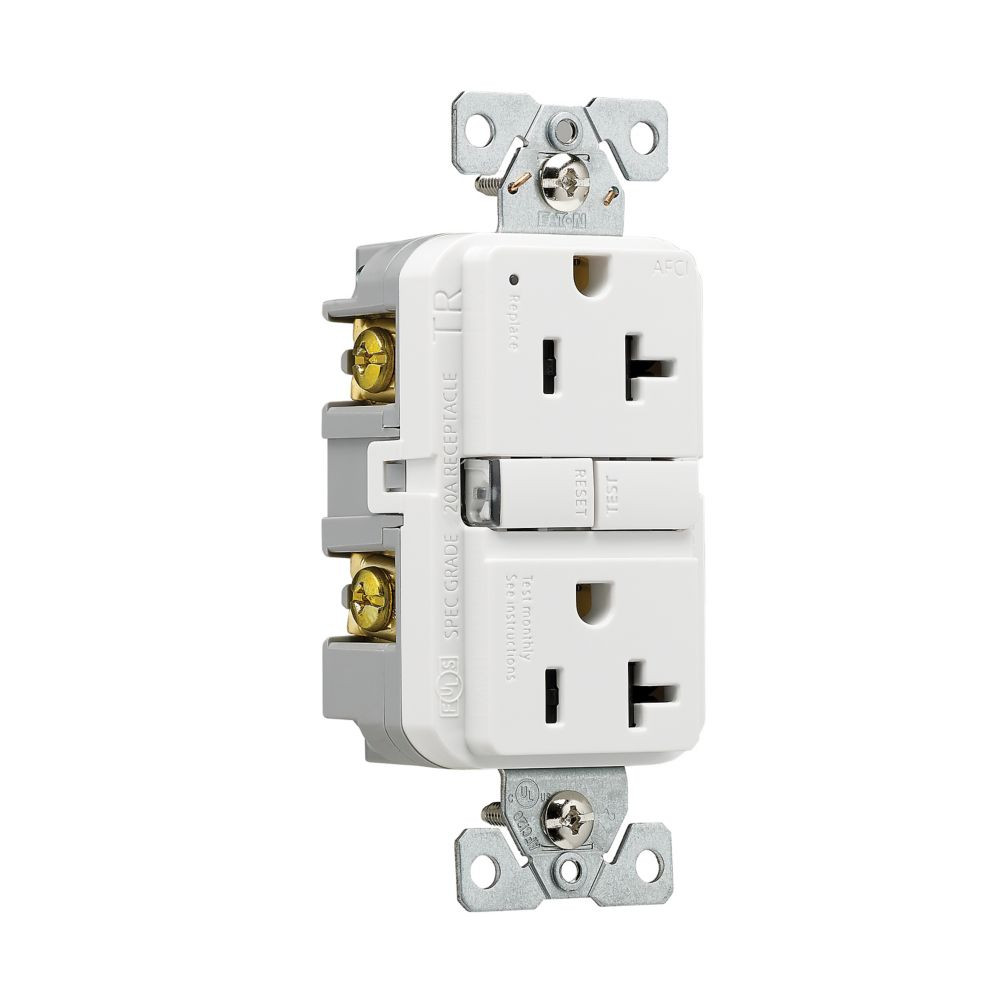

TRAF20W 20A 125V DUPLEX RECEPTACLE WH from Eaton is a white slim AFCI receptacle designed for 20A, 125V applications. This tamper resistant receptacle features a 5-20R NEMA configuration, back and side wire termination, flush mounting, and a two-pole, three-wire grounding design for residential and commercial use.
Product Summary
- Product Type: Slim AFCI receptacle
- Amperage Rating: 20A
- Voltage Rating: 125V
- NEMA Configuration: 5-20R
- Color: White
- Wiring Method: Back and side wire
- Free shipping on orders over $250
Product Benefits
- Supports residential and commercial receptacle applications.
- Tamper resistant design helps meet safety-focused installation requirements.
- Back and side wire termination supports flexible wiring installation.
- Slim AFCI receptacle design provides 20A, 125V performance in a flush-mounted device.
Key Features
- Slim AFCI receptacle: Eaton slim AFCI receptacle with tamper resistant features.
- 20A rating: Rated for 20A and 125V applications.
- 5-20R configuration: NEMA 5-20R receptacle configuration.
- Back and side wire: Wiring method supports back and side wire installation.
- Allowable wire size: Accepts #14 - 10 AWG wire.
- Flush mounting: Designed for flush mounting installations.
- Grounding receptacle: Two-pole, three-wire, grounding receptacle type.
- cULus Listed: Certified as cULus Listed.
Specifications
Technical Specifications
| Product Name | Eaton slim AFCI receptacle |
| Catalog Number | TRAF20W |
| UPC | 032664022593 |
| Product Type | Slim AFCI receptacle |
| Device Type | Receptacle |
| Amperage Rating | 20A |
| Voltage Rating | 125V |
| Circuit Interrupter Type | AFCI |
| NEMA Configuration | 5-20R |
| Wiring Method | Back and side wire |
| Allowable Wire Size | #14 - 10 AWG |
| Torque Rating | 16 lbf-inch |
Physical Specifications
| Color | White |
| Product Length/Depth | 1.37 in |
| Product Height | 4.19 in |
| Product Width | 1.7 in |
| Product Weight | 0.24 lb |
| Contact Material | Brass |
| Face/Body Material | PVC Polycarbonate |
| Mounting Method | Flush |
| Receptacle Type | Two-pole, three-wire, grounding |
Compliance & Safety
| Certifications | cULus Listed |
| Features | Tamper resistant |
| Environmental Conditions | Tamper resistant |
Applications
- Residential receptacle applications.
- Commercial receptacle applications.
- Flush-mounted 20A, 125V AFCI receptacle installations.
- Installations requiring a white 5-20R tamper resistant receptacle.
Installation Tips
- Use back and side wire termination as specified for this receptacle.
- Use allowable wire size #14 - 10 AWG.
- Use a torque rating of 16 lbf-inch.
- Install using the flush mounting method.
Frequently Asked Questions
What type of receptacle is the TRAF20W?
The TRAF20W is an Eaton slim AFCI receptacle.
What is the amperage rating?
The TRAF20W is rated for 20A.
What voltage is this receptacle rated for?
The voltage rating is 125V.
What NEMA configuration does this receptacle use?
The TRAF20W uses a 5-20R NEMA configuration.
Is the TRAF20W tamper resistant?
Yes. The TRAF20W has tamper resistant features.
What wiring method does this receptacle use?
The wiring method is back and side wire.
What wire size is allowed?
The allowable wire size is #14 - 10 AWG.
What color is the TRAF20W?
The TRAF20W is white.
What certifications are listed?
The TRAF20W is cULus Listed.
