Product Description

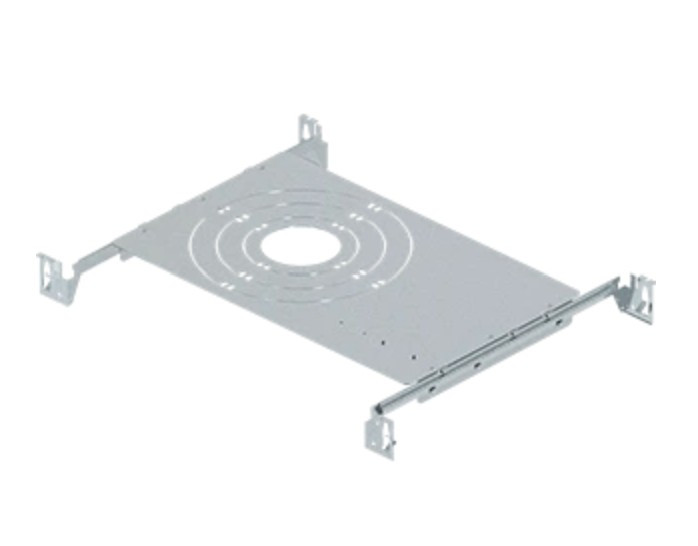

RAB Lighting DLPLATE/WFR3468/NB/BP Mounting Plate With Nailer Bar For Wafer 3"/4"/6"/8" Bulk (10 Pack) is a versatile recessed mounting solution designed to simplify installation of compatible wafer downlights in new construction and retrofit applications. Manufactured by RAB Lighting, this steel mounting plate features adjustable nailer bars and multiple circular knockout options to support 3", 4", 6", and 8" wafer fixtures in dry and damp indoor environments.
Product Summary
- Product Type: Mounting Plate
- Compatible Sizes: 3", 4", 6", 8"
- Material: Steel
- Finish: Gray
- Installation Type: Recessed
- Environment: Dry and damp locations
- Pack Size: Bulk (10 Pack)
- Free shipping on orders over $250
Product Benefits
- Supports multiple wafer downlight sizes with integrated circular knockouts for flexible installation.
- Adjustable nailer bars allow secure mounting in a wide range of ceiling configurations.
- Durable steel construction provides reliable support for recessed lighting applications.
- Ideal for residential, commercial, and renovation projects requiring clean wafer downlight installation.
Key Features
- Multi-Size Compatibility: Designed for 3", 4", 6", and 8" wafer downlights.
- Integrated Circular Knockouts: Pre-marked knockout sizes simplify fixture preparation.
- Adjustable Nailer Bars: Expands from 14 3/8" to 25 3/16" for flexible mounting.
- Steel Housing Construction: Durable design for long-lasting performance.
- Recessed Installation: Suitable for T-grid and ceiling tile installations.
- Dry & Damp Rated: Approved for indoor dry and damp environments.
Specifications
Technical Specifications
| Product Name | DLPLATE/WFR3468/NB/BP |
| Product Type | Mounting Plate |
| Installation Type | Recessed |
| Compatible Fixture Sizes | 3" / 4" / 6" / 8" |
| Pack Quantity | 10 Pack |
Construction Specifications
| Shape | Rectangle |
| Finish | Gray |
| Housing Material | Steel |
| Weight | 1.9 lbs |
Environmental & Compliance
| Environment | Suitable for dry and damp environments. Not suitable for direct sunlight. |
| Listings | None |
| California Title 20 Compliant | No |
| California Title 24 JA8 Compliant | No |
| CEC Status | Lawful for Sales in California |
| Trade Agreements Act Compliant | Yes |
| Country of Origin | Cambodia |
Dimensions
| Overall Width | 18 1/16" |
| Overall Length | 15 1/4" |
| Height | 1 11/16" |
| Adjustable Bar Range | 14 3/8" Min – 25 3/16" Max |
| Knockout Sizes | Ø3", Ø4-5/16", Ø6-5/16", Ø8-5/16" |
Applications
- Wafer downlight mounting in suspended T-grid ceilings.
- Commercial office lighting installations.
- Residential recessed lighting projects.
- Retail and hospitality ceiling applications.
- Compatible with edge-lit, field adjustable, and deep regressed wafer downlights.
Installation Tips
- Wear safety gloves and appropriate protective equipment during installation.
- Secure brackets to the mounting plate before positioning in the ceiling grid.
- Use cutting pliers to remove only the required circular knockout section.
- Install the plate directly onto the T-grid before cutting the ceiling tile opening.
- Follow the compatible wafer downlight installation guide for final fixture installation.
Frequently Asked Questions
What wafer downlight sizes are supported?
This mounting plate supports 3", 4", 6", and 8" compatible wafer downlights.
Can this mounting plate be used in damp locations?
Yes, the DLPLATE/WFR3468/NB/BP is suitable for dry and damp indoor environments.
Is this mounting plate rated for direct sunlight exposure?
No, this product is not suitable for applications with direct sunlight exposure.
What material is the mounting plate made from?
The plate is constructed from durable steel with a gray finish.
Does this product include adjustable mounting bars?
Yes, it includes adjustable nailer bars that accommodate different ceiling widths.
Can this plate be installed in T-grid ceilings?
Yes, the mounting plate is specifically designed for recessed installation in T-grid ceiling systems.
Are downlights included with the mounting plate?
No, this product includes only the mounting plate assembly and does not include downlight fixtures.
Which RAB downlights are compatible?
Compatible products include Edge-lit Wafer 3", 4", 6", and 8" models, Field Adjustable Edge-lit Wafer 4" and 6", and Deep Regressed Wafer 4" and 6" fixtures.
