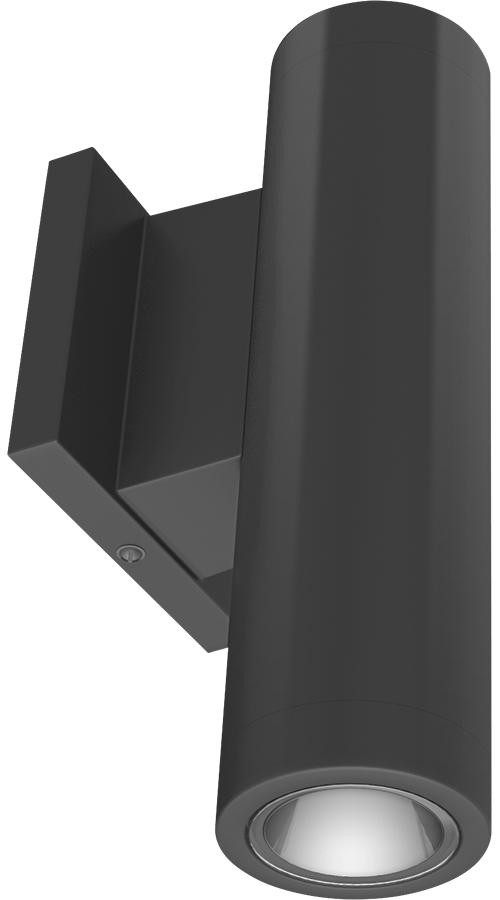

CDLED2WD-10W-40D940-Z Cylinders 755 Lumens CDLED 10W 2 Inches Wall Direct(downlight) from RAB Lighting is a 2" architectural LED cylinder designed for wall direct downlight applications. This bronze 10W cylinder delivers 755 lm at 4000K with 93 CRI, a 40° optic, universal 120-277V operation, and dimming support for 0-10V, TRIAC, and ELV systems as specified.
Product Summary
- Fixture Type: LED Cylinder
- Size: 2"
- Mounting: Wall Direct (Downlight) Only
- Wattage: 10W
- Lumens: 755 lm
- Color Temperature: 4000K (Neutral)
- CRI: 93 CRI
- Finish: Bronze
- Free shipping on orders over $250
Product Benefits
- Sleek, contemporary, architectural-grade design supports indoor and outdoor cylinder lighting applications.
- Wall direct downlight configuration provides focused downward illumination from a wall-mounted cylinder.
- Universal dimming driver supports 0-10V, TRIAC, and ELV dimming as specified for flexible lighting control.
- Wet location rating and durable extruded aluminum construction support exterior and interior installations.
Key Features
- 2" LED cylinder: Compact CDLED cylinder in a wall direct downlight configuration.
- High color quality: 4000K neutral light with 93 CRI and R9 of 67.
- 40° optic: 40° optical distribution using TIR-Polycarbonate lens design.
- Universal voltage: Constant Current, Class 2 driver supports 120-277V, 50/60 Hz operation.
- Dimming flexibility: 0 - 10V at 120-277V, TRIAC and ELV at 120V only.
- Long LED life: 50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations.
- Durable housing: Extruded aluminum housing with high-temperature silicone gaskets.
- RoHS-compliant: Mercury and UV free with RoHS-compliant components.
Specifications
Technical Specifications
| Catalog Number | CDLED2WD-10W-40D940-Z |
| Family | CDLED |
| Size | 2" |
| Mounting | WD = Wall Direct (Downlight) Only |
| Wattage | 10W |
| Optic | 40D = 40° |
| CRI / Color Temp | 940 = 90 CRI, 4000K |
| Finish | Z = Bronze |
| Driver Type | Constant Current |
| Driver | Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.10A, 208V: 0.06A, 240V: 0.05A, 277V: 0.05A |
| Input Watts | 12W |
| 120V Current | 0.10A |
| 208V Current | 0.06A |
| 240V Current | 0.05A |
| 277V Current | 0.05A |
| THD | 10.2% at 120V, 25.9% at 277V |
| Power Factor | 99.2% at 120V, 87.9% at 277V |
Performance Specifications
| Lumens | 755 lm |
| Watts | 10W |
| Color Temperature | 4000K (Neutral) |
| Color Accuracy | 93 CRI |
| R9 | 67 |
| L70 Lifespan | 50,000 Hours |
| Efficacy | 62.9 lm/W |
| Optics | 40° |
| Dimming Driver | 0 - 10V (at 120-277V), TRIAC and ELV (at 120V only) |
| LEDs | Long-life, high-efficacy, surface-mount LEDs |
| Color Stability | LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period |
Physical Specifications
| Color | Bronze |
| Weight | 2.4 lbs |
| Mounting | Wall direct light only |
| Lens | TIR-Polycarbonate (Total Internal Reflection) |
| Reflector | Vacuum-metalized polycarbonate |
| Housing | Extruded aluminum |
| Gaskets | High-temperature silicone |
| Finish | Formulated for high durability and long-lasting color |
| Fixture Height | 10-3/8" / 263mm |
| Cylinder Diameter | 2-3/4" / 70mm |
| Wall Offset | 4-5/8" / 119mm |
| Wall Plate Height | 4-1/2" / 113mm |
| Wall Plate Width | 1-3/4" / 46mm |
| Cold Weather Starting | The minimum starting temperature is -4°F (-20°C) |
| Maximum Ambient Temperature | Suitable for use in up to 104°F (40°C) |
Compliance & Safety
| UL Listed | Suitable for wet locations |
| IESNA LM-79 & LM-80 Testing | RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80. |
| Green Technology | Mercury and UV free. RoHS-compliant components. |
| Warranty | 5-Year, No-Compromise Warranty |
Applications
- Wall-mounted architectural downlighting.
- Indoor and outdoor cylinder lighting applications.
- Wet location wall direct lighting installations.
- Commercial or architectural spaces requiring a bronze 2" LED cylinder.
- Projects requiring 4000K neutral light with high color rendering.
Installation Tips
- Read carefully before installing fixture and retain these instructions for future reference.
- RAB fixtures must be wired in accordance with the National Electrical Code and all applicable local codes.
- Proper grounding is required for safety.
- Make certain power is OFF before installing or maintaining fixture.
- Fixture is suitable for wet location.
- Fixture must be mounted a minimum of 4 feet above ground level.
- For smooth mounting surfaces use gasket. For rough mounting surfaces remove gasket and apply silicone sealant around mounting arm base to insure water tight fit.
- Mount Junction Box Adaptor Plate to junction box supplied by other with Angled Sides aligned with Mounting Arm screw holes.
- Suspend the fixture with pre-installed Tether Cable using Tether Slot in Junction Box Adaptor Plate before connecting supply wires.
- For 0-10V dimming, connect the purple fixture lead to the (V+) DIM lead and the gray fixture lead to the (V-) DIM lead.
