Product Description

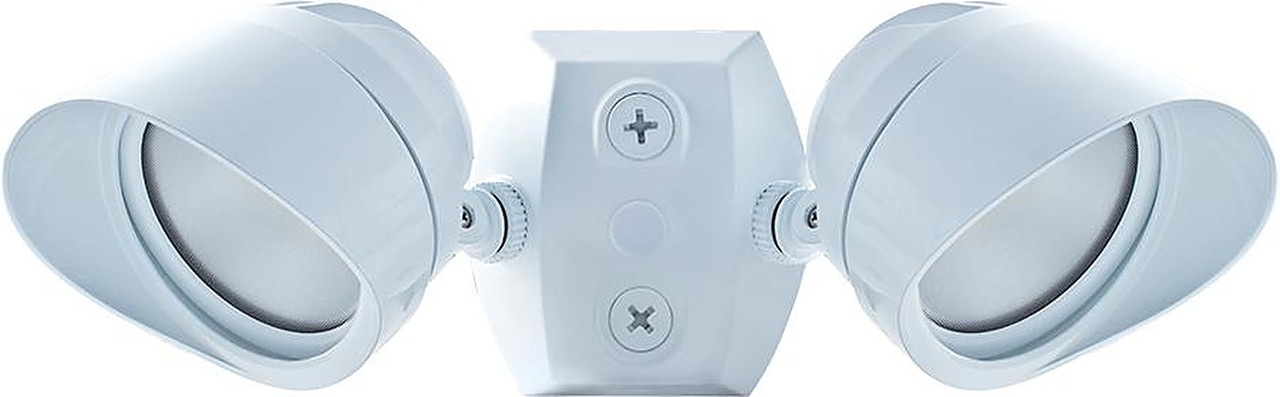

BULLET2X12W Bullet Flood Kit 2 X 12W Cool LED 120V W/ CU4 & Hood White from RAB Lighting is a field-adjustable BULLET 2X12 LED flood kit with two pre-wired BULLET12 heads assembled on a CU4 Plate. This white 120V flood light delivers 1,279-2,645 lm with selectable 24/18/12W light output, selectable 3000K/4000K/5000K color temperature, TRIAC dimming, and a wet-location rated design.
Product Summary
- Fixture Type: BULLET 2X12 LED flood kit
- Wattage: 24/18/12W
- Lumens: 1,279-2,645 lm
- Color Temperature: 3000/4000/5000K
- Voltage: 120V
- Finish: White
- Free shipping on orders over $250
Product Benefits
- Field-adjustable 24W/18W/12W output lets one fixture support multiple lighting needs.
- Selectable 3000K, 4000K, and 5000K color temperature allows the light appearance to be adjusted in the field.
- Two BULLET12 heads come pre-wired and assembled on a CU4 Plate for mounting on round, rectangular, or octagonal surface or recessed junction boxes.
- Suitable for wet locations with IP65 ingress protection for dust and water.
Key Features
- Field Adjustable Light Output: 24W/18W/12W with factory default 24W.
- CCT selectable: 3000K, 4000K, and 5000K with factory default 4000K.
- TRIAC dimming: TRIAC compatible dimmer with dimming as low as 10%.
- Long LED life: 100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations.
- Wet location rated: UL Listed suitable for wet locations.
- IP65 rating: Ingress protection rating of IP65 for dust and water.
- Durable construction: Die-cast aluminum housing with glass lens.
- Heavy-duty mounting: Heavy-duty mounting arm with "O" ring seal and stainless steel screws.
Specifications
Technical Specifications
| Catalog Number | BULLET2X12W |
| Family | BULLET |
| Wattage | 2X12 = 24/18/12W |
| Color Temp | 3000/4000/5000K |
| Finish | W = White |
| Driver | 120V, TRIAC Dimming |
| Driver Type | Constant Current |
| Driver | Constant Current, Class 1, 120V, 50/60Hz, 120V: 0.20A |
| 120V Current | 0.20A |
| Input Watts | 11.4-24.3W |
| THD | 13.64% at 120V |
| Power Factor | 99.1% at 120V |
| Surge Protection | L/N:1 kV, L/N-PE:1 kV |
Performance Specifications
| Field Adjustable Light Output | 24W/18W/12W (factory default 24W) |
| Color Temperature Selectable | 3000K, 4000K and 5000K (factory default 4000K) |
| Color Accuracy | 82-85 CRI |
| L70 Lifespan | 100,000 Hours |
| Lumens | 1,279-2,645 lm |
| Efficacy | 101.4-120.9 lm/W |
| Dimming Driver | TRIAC compatible dimmer with dimming as low as 10%. |
| NEMA Type | NEMA Beam Spread 6H x 6V |
| LEDs | Long-life, high-efficacy, surface-mount LEDs |
Physical Specifications
| Color | White |
| Weight | 2.0 lbs |
| Lens | Glass |
| Housing | Die-cast aluminum |
| Reflector | Polyethylene Terephthalate (PET) |
| Mounting | Heavy-duty mounting arm with "O" ring seal and stainless steel screws |
| Width | 13 3/8" |
| Height | 14 15/16" |
| Depth | 6" |
| Finish | Formulated for high durability and long-lasting color |
| Cold Weather Starting | The minimum starting temperature is -40°F (-40°C) |
| Maximum Ambient Temperature | Suitable for use in up to 104°F (40°C) |
Compliance & Safety
| UL Listed | Suitable for wet locations |
| IESNA LM-79 & LM-80 Testing | RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80. |
| IP Rating | Ingress protection rating of IP65 for dust and water |
| Trade Agreements Act Compliant | This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act |
| Green Technology | Mercury and UV free. RoHS-compliant components. |
| Warranty | 5-Year Limited Warranty |
Applications
- Wet location flood lighting applications.
- Wall or ceiling mounting on round, rectangular, or octagonal junction boxes.
- Surface or recessed junction box installations.
- Adjustable dual-head lighting applications requiring selectable wattage and selectable CCT.
Installation Tips
- Read carefully before installing fixture and retain these instructions for future reference.
- RAB fixtures must be wired in accordance with the National Electrical Code and all applicable local codes.
- Proper grounding is required for safety.
- Make certain power is OFF before installing or maintaining fixture.
- For proper weatherproof function, all gaskets must be seated properly and all screws inserted and tightened firmly.
- Apply weatherproof silicone sealant around the edge of the ceiling or wall mounting box and/or junction box.
- Silicone all plugs and unused conduit entries.
- Two BULLET12 heads come pre-wired and assembled on CU4 Plate for mounting on round, rectangular or octagonal surface or recessed Junction Boxes.
- Aim BULLET12 heads in the desired direction and tighten locknut and arm screw.
- Operates only at 120V, 60 Hz.
Frequently Asked Questions
What wattage settings are available on the BULLET2X12W?
The BULLET2X12W has field adjustable light output settings of 24W/18W/12W with factory default 24W.
What color temperatures can this fixture be set to?
The color temperature is selectable between 3000K, 4000K, and 5000K with factory default 4000K.
What is the lumen output range?
The BULLET2X12W delivers 1,279-2,645 lm.
Is this fixture dimmable?
Yes. It uses a TRIAC compatible dimmer with dimming as low as 10%.
What voltage does this fixture use?
The BULLET2X12W operates at 120V, 60 Hz.
Is this fixture suitable for wet locations?
Yes. The fixture is UL Listed suitable for wet locations and has an IP65 rating for dust and water.
What is included for mounting?
Two BULLET12 heads come pre-wired and assembled on CU4 Plate for mounting on round, rectangular or octagonal surface or recessed Junction Boxes.
What is the NEMA beam spread?
The NEMA Beam Spread is 6H x 6V.
What is the LED lifespan?
The fixture has a 100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations.
What finish is this model?
The BULLET2X12W has a white finish.
