Product Description
BULKH20W Wall Sconce by RAB Lighting delivers durable, field-adjustable LED performance in a compact, white oval bulkhead design. Featuring selectable wattage, color temperature, and photocell control, this versatile fixture provides efficient, reliable lighting for outdoor walls, corridors, and entrances while maintaining a modern aesthetic.
Product Summary
- Product Type: Field-Adjustable LED Wall Sconce (Oval)
- Wattage: Selectable 20W / 16W / 12W (factory default 20W)
- Lumen Output: 1,174 – 2,043 lumens
- Color Temperature: Selectable 3000K / 4000K / 5000K (factory default 5000K)
- CRI: 82–84
- Efficacy: Up to 115.7 lm/W
- Voltage: 120–277V AC
- Lifespan: 100,000 hours (L70)
- Photocell: Selectable On/Off (factory ON)
- Housing Finish: White powder-coated die-cast aluminum
- Lens: Tempered glass diffuser with integrated protective guard
- IP Rating: IP65 – Wet Location Rated

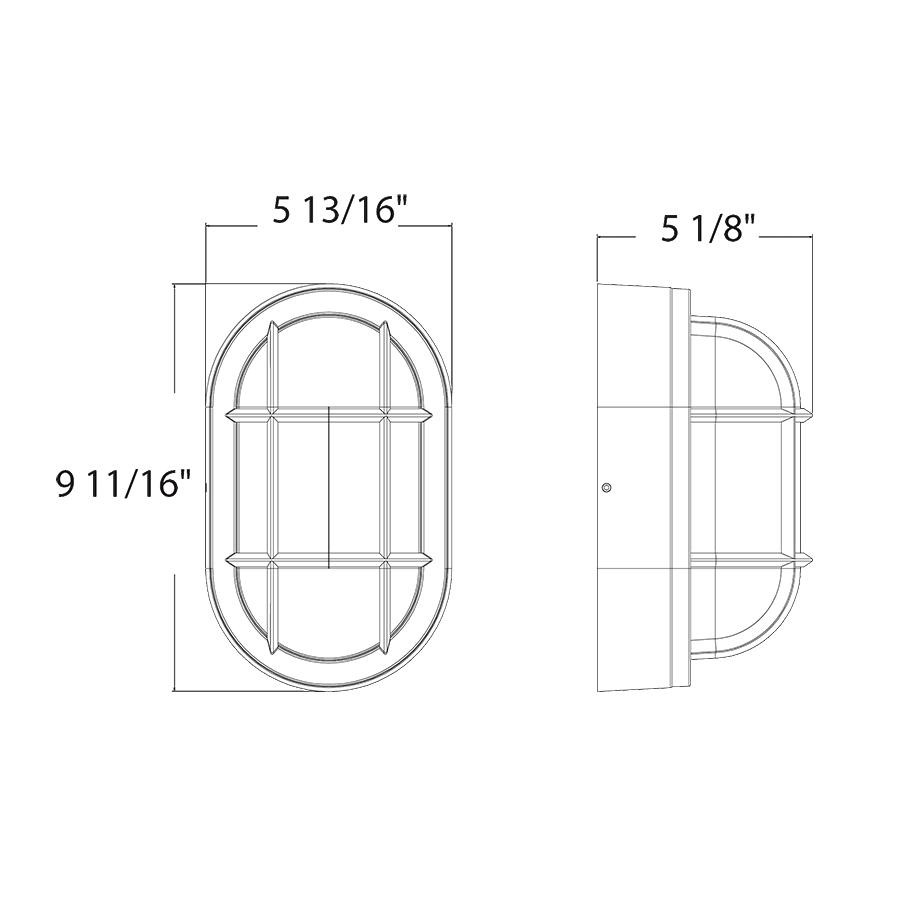

- Dimensions: 9-11/16” H × 5-13/16” W × 5-7/8” D
- Warranty: 5-Year Limited
Free shipping on orders over $250
Product Benefits
- Field adjustable performance: Choose wattage and color temperature to suit your installation needs.
- Integrated photocell: Automatically turns light on at dusk and off at dawn for energy savings.
- Durable construction: Die-cast aluminum body and glass lens withstand outdoor conditions.
- Low maintenance: Long 100,000-hour lifespan reduces replacement and servicing costs.
Key Features
- Selectable wattage: Field-adjustable 20W / 16W / 12W for precise energy control.
- Selectable color temperature: 3000K / 4000K / 5000K via dip switch for flexible color tuning.
- Photocell control: On/Off function for automatic dusk-to-dawn operation.
- Weatherproof rating: IP65 for dust and water resistance.
- High efficacy: Up to 115.7 lumens per watt for maximum output and efficiency.
- Cold-weather operation: Starts reliably down to -40°F (-40°C).
Enhanced Specifications
Performance Specs
| Lumen Output | 1,174 – 2,043 lm (based on wattage/CCT) |
| Color Temperature | Selectable 3000K / 4000K / 5000K |
| CRI | 82–84 |
| L70 Lifespan | 100,000 hours |
| Efficacy | 93 – 115.7 lm/W |
Electrical Specs
| Input Voltage | 120–277V AC, 50/60Hz |
| Driver Type | Constant Current, Class 1 |
| Power Factor | Up to 98.5% (120V) |
| THD | ≤18% |
| Photocell | Selectable On/Off (factory “On”) |
| Surge Protection | 2kV |
Construction & Environment
| Housing | Die-cast aluminum |
| Finish | White powder coat, UV resistant |
| Lens | Tempered glass with integrated protective guard |
| Operating Temperature | -40°F to +113°F (-40°C to +45°C) |
| IP Rating | IP65 (wet location rated) |
Compliance & Certifications
| Certifications | UL Listed, RoHS Compliant |
| BUG Rating | B1 U3 G1 |
| Warranty | 5-Year Limited Warranty |
Application Examples
- Building exteriors and entrances
- Outdoor hallways and corridors
- Commercial and industrial facilities
- Walkways, loading zones, and parking areas
Installation Tips
- Disconnect power before installation or maintenance.
- Mount securely using the provided mounting plate and tether cable for hands-free wiring.
- Use UL-rated connectors for wire splicing per NEC requirements.
- Set wattage and color temperature before final mounting using the dip switches on the housing back.
- Seal around the junction box edges with weatherproof silicone for watertight integrity.
Frequently Asked Questions
What is the difference between BULKH20 and BULKH20W?
The BULKH20W has a white finish, while the BULKH20 features a bronze finish. Both share identical performance specifications.
Can I disable the photocell?
Yes, move the photocell switch to “Off” to disable the dusk-to-dawn function.
Is it suitable for wet locations?
Yes, it’s IP65 rated and UL listed for wet conditions.
Can it be mounted horizontally?
Yes, the oval design allows for both vertical and horizontal wall mounting.
How do I adjust the CCT or wattage?
Access the dip switches located behind the housing to set 3000K–5000K CCT and 20W/16W/12W wattage options.
