Product Description

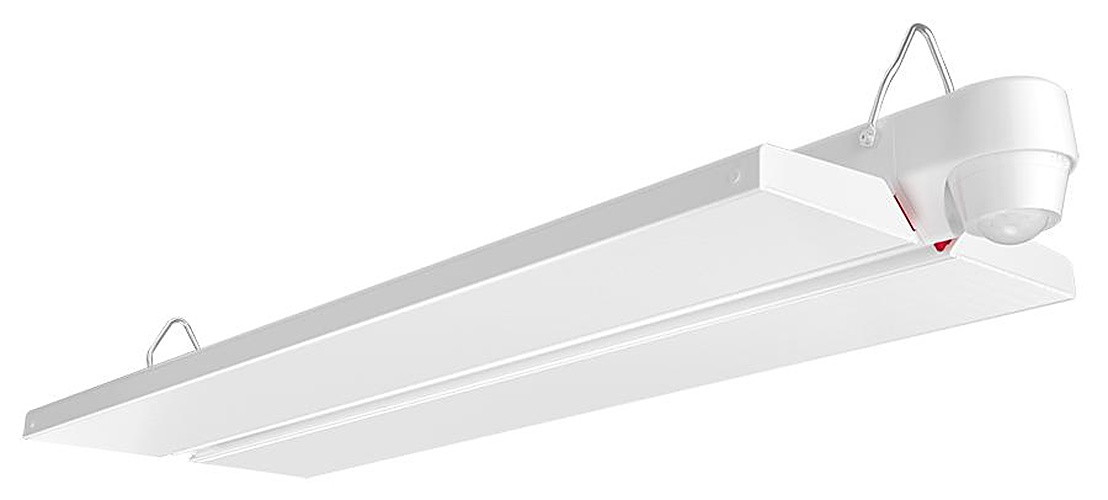

ARS/PIR Arbay 160/120/80W 2' FA 4000K/5000K PIR 120-277V from RAB Lighting combines field-adjustable power, selectable color temperature, and a Passive Infrared (PIR) sensor in a 2' LED fixture. Choose 160W, 120W, or 80W and 4000K or 5000K to match your lighting requirements, with standard 0-10V dimming and a 120-277V driver.
Selectable Power: 160W / 120W / 80W
Selectable Color Temperature: 4000K / 5000K
Light Output: 11,855-22,991 lm
Voltage: 120-277V, 50/60Hz
Controls: PIR sensor and 0-10V dimming down to 10%
Dimensions: 24" L × 10" W × 2 1/2" H
Free shipping on orders over $250
Product Benefits
- Adjust output at the fixture: Select 160W, 120W, or 80W to match application requirements using the field-adjustable power switch.
- Choose your color temperature: Switch between 4000K and 5000K without changing fixtures.
- Support occupancy-based lighting: The PIR sensor provides motion detection, while standard 0-10V dimming allows light levels down to 10% with a separate dimming circuit.
- Adapt the mounting method: Included V-hooks support chain suspension, with separately purchased accessories available for pendant and surface mounting.
Key Features
- 3 Power Presets: 100% (160W), 75% (120W), and 50% (80W).
- Selectable CCT: 4000K and 5000K; factory settings are 100% power and 4000K.
- PIR Sensor: Passive Infrared occupancy sensing.
- 0-10V Dimming: Dims down to 10%; requires a separate 0-10V DC dimming circuit.
- Long-Life LEDs: 100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations.
- Durable Construction: Aluminum housing, polycarbonate lens, and Polyethylene Terephthalate (PET) reflector.
- Surge Protection: 6 kV.
- Warranty: 5-Year, No-Compromise Warranty, subject to RAB warranty terms and conditions.
Specifications
Technical Specifications
| Model | ARS/PIR |
| Selectable Power | 160W / 120W / 80W |
| Power Presets | 100% / 75% / 50% |
| Input Watts | 72-157W |
| Input Voltage | 120-277V |
| Frequency | 50/60Hz |
| Driver | Constant Current, Class 1 |
| Dimming | 0-10V dimming down to 10%; separate 0-10V DC dimming circuit required |
| Sensor | Passive Infrared (PIR) |
| Surge Protection | 6 kV |
| Power Factor | 99.9% at 120V; 99.5% at 277V |
| THD | 3.24% at 120V; 9.37% at 277V |
Performance Specifications
| Light Output | 11,855-22,991 lm |
| Efficacy | 143.6-164.7 lm/W |
| Selectable Color Temperature | 4000K / 5000K |
| Factory Settings | 100% Power, 4000K CCT |
| Color Accuracy | 83-85 CRI |
| L70 Lifespan | 100,000 Hours |
| Minimum Starting Temperature | -20°C (-4°F) |
| Maximum Ambient Temperature | 122°F (50°C) |
Physical Specifications
| Nominal Length | 2' |
| Dimensions | 24" L × 10" W × 2 1/2" H |
| Weight | 6.6 lbs |
| Color | White |
| Housing | Aluminum |
| Lens | Polycarbonate |
| Reflector | Polyethylene Terephthalate (PET) |
| Standard Mounting | V-hooks for chain mounting; chain and appropriate mounting hardware supplied separately |
| Optional Mounting | Pendant and surface mounting accessories purchased separately |
| Compatible Pendant Kit | ARP-ADJ adjustable pendant kit for ARS 120-277V; ordered separately |
Compliance & Safety
| UL Listing | UL Listed; suitable for damp locations |
| DLC Listing | DLC Premium listed |
| IP Rating | IP65 |
| Environmental Suitability | Suitable for dry, damp, or wet environments in indoor applications |
| Testing | Independently tested in accordance with IESNA LM-79 and LM-80 |
| Color Uniformity | Follows ANSI C78.377-2017 guidelines |
| Trade Agreements Act | Trade Agreements Act compliant; product of Cambodia |
| Materials Compliance | Mercury and UV free; RoHS-compliant components |
| Supply Conductors | Min. 90°C supply conductors |
Applications
- Indoor lighting installations in dry, damp, or wet environments.
- Suspended installations using the included V-hooks with separately supplied chain and mounting hardware.
- Pendant installations using the separately ordered ARP-ADJ adjustable pendant kit.
- Lighting systems using a separate 0-10V DC dimming circuit.
Installation Tips
- WARNING: Make certain power is OFF before installing or maintaining fixture. No user serviceable parts inside.
- The fixture must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved. Wire in accordance with the National Electrical Code and all applicable local codes. Proper grounding is required for safety.
- Use Min. 90°C supply conductors. Mount to a sturdy ceiling structure, and determine fixture mounting height and spacing by application requirements.
- For V-hook mounting, use the 2 provided V-hooks with 2 lengths of chain and/or appropriate mounting hardware supplied separately. Use approved wiring connectors and avoid pinching wires when reinstalling the access plate.
- Locate the field-adjustable switches on the fixture center housing channel to select power and CCT. Factory settings are 100% power and 4000K CCT. For maximum light output, use 4000K.
- For 0-10V dimming, connect the purple fixture lead to DIM V+ and the pink fixture lead to DIM V-. Do not connect DIM V+ (purple)/DIM V- (pink) to line voltage or supply ground.
- Before cleaning, make sure the fixture is cool enough to touch and is not energized. Do not open the fixture to clean the LED. Do not touch the LED.
Frequently Asked Questions
What wattage settings does the RAB ARS/PIR offer?
The fixture offers 160W, 120W, and 80W presets, corresponding to 100%, 75%, and 50% power. The power selection switch is located on the fixture center housing channel.
Can I switch between 4000K and 5000K?
Yes. The field-adjustable CCT switch selects 4000K or 5000K. The factory setting is 4000K, which is also the setting specified for maximum light output.
Is the ARS/PIR dimmable?
Yes. The driver supports 0-10V dimming down to 10%. A separate 0-10V DC dimming circuit is required.
What input voltage does this model support?
The ARS/PIR uses a universal voltage driver for 120-277V operation at 50/60Hz.
What type of occupancy sensor is included?
The /PIR configuration includes a Passive Infrared sensor.
What mounting hardware comes with the fixture?
2 V-hooks are provided for suspension mounting. Chain and appropriate mounting hardware are supplied separately. Pendant and surface mounting accessories are purchased separately; the ARP-ADJ adjustable pendant kit is compatible with ARS 120-277V.
What are the fixture dimensions?
The fixture measures 24" L × 10" W × 2 1/2" H and weighs 6.6 lbs.
What warranty covers the RAB ARS/PIR?
RAB provides a 5-Year, No-Compromise Warranty covering defects in materials and workmanship from the date of delivery to the end user, including light output, color stability, driver performance, and fixture finish. Coverage is subject to RAB warranty terms and conditions.
