Product Description

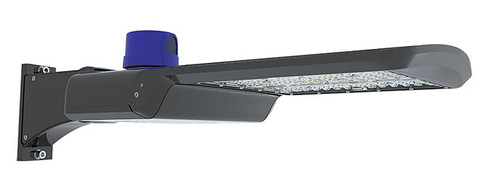

The A17XFU150 Arealights offers a versatile and energy-efficient lighting solution with field-adjustable wattage and color temperature. Designed for area lighting applications, this robust fixture delivers exceptional performance with a lumen output ranging from 11,168 to 21,875 lumens and an adjustable wattage of 70W, 100W, or 150W.
Key Features:
- Field-adjustable wattage: 70W, 100W, and 150W.
- Selectable color temperatures: 3000K, 4000K, and 5000K.
- Delivers up to 21,875 lumens with an efficacy of up to 165.9 lm/W.
- UL listed for wet locations with an IP65 rating for dust and water resistance.
- Die-cast aluminum housing with a durable bronze finish.
- Integrated 0-10V dimming for enhanced energy savings.
- 100,000-hour LED lifespan for long-lasting performance.
Specifications:
- Model Number: A17XFU150
- Lumen Output: 11,168 to 21,875 lumens
- Color Temperature: Field adjustable (3000K, 4000K, 5000K)
- CRI: 71-73
- Wattage: 70W, 100W, 150W
- Voltage: 120-277V
- IP Rating: IP65
- Construction: Die-cast aluminum housing
Installation Tips:
- Ensure power is turned off at the circuit breaker before installation.
- Use the included universal mounting arm for easy installation on square or round poles.
- Adjust the wattage and color temperature using the selector switches before final mounting.
- Follow all local electrical codes and consult a licensed electrician for complex installations.
Frequently Asked Questions:
Q: What are the field-adjustable settings for this fixture?
A: The wattage can be adjusted to 70W, 100W, or 150W, and the color temperature can be set to 3000K, 4000K, or 5000K.
Q: Is this fixture suitable for outdoor use?
A: Yes, it is UL listed for wet locations and has an IP65 rating for dust and water resistance.
Q: Does this fixture support dimming?
A: Yes, it includes 0-10V dimming capability.
Q: What is the rated lifespan of this fixture?
A: The A17XFU150 is rated for 100,000 hours of operation.
Q: Can this fixture be used on both square and round poles?
A: Yes, it includes a universal mounting arm and adaptor for compatibility with square or round poles.
