Product Description

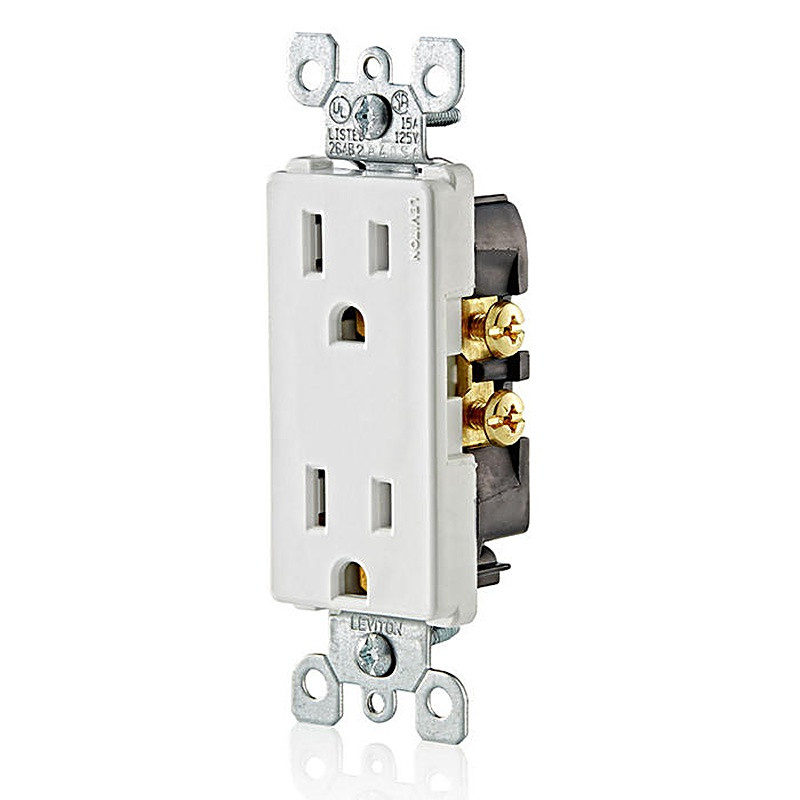

5325-W White Duplex Receptacle-N5-15R by Leviton is a durable and efficient residential-grade outlet. Featuring a sleek design and robust construction, it ensures reliable performance for various electrical applications.
Key Features:
- Rated for 15A and 125V, suitable for standard residential applications.
- Quickwire push-in and side wiring options for ease of installation.
- Grounding feature for enhanced safety.
- Impact-resistant thermoplastic nylon construction for durability.
- Sleek white finish complements modern Decora wallplates.
Specifications:
- Amperage: 15A
- Voltage: 125V
- Type: Duplex Receptacle
- Wiring Options: Quickwire push-in and side wiring
- Wire Compatibility: #10, #12, and #14 AWG copper or copper-clad wire
- Material: Thermoplastic body and face with a steel strap
- Compliance: UL Listed, CSA Certified, NOM Certified
- Operating Temperature: -40°C to 60°C
- Warranty: 2-Year Limited Warranty
Installation Tips:
- Ensure compatibility with your electrical system before installation.
- Use the Quickwire push-in terminals for #14 AWG solid copper wires.
- Side wire terminals are compatible with #10, #12, and #14 AWG copper or copper-clad wires.
- Follow the wiring diagram included in the spec sheet for proper setup.
Frequently Asked Questions:
Q: What types of wires are compatible with this receptacle?
A: It supports #10, #12, and #14 AWG copper or copper-clad wires for side wiring and #14 AWG solid copper wires for push-in terminals.
Q: Is this receptacle suitable for residential use?
A: Yes, it is designed as a residential-grade outlet for standard applications.
Q: What certifications does this product have?
A: It is UL Listed, CSA Certified, and NOM Certified.
Q: Does this receptacle work with Decora wallplates?
A: Yes, it is compatible with Leviton Decora wallplates.
Q: What is the operating temperature range?
A: The receptacle operates between -40°C and 60°C.
