Product Description
X34XSW 16W/13W/10W Knuckle White 3000K/4000K/5000K Selectable is a compact, field-adjustable LED floodlight from RAB Lighting that offers exceptional flexibility in light output and color temperature. Ideal for accent and security lighting, this durable fixture features a sleek white finish, weatherproof construction, and selectable wattage and CCT settings for tailored performance in any application.

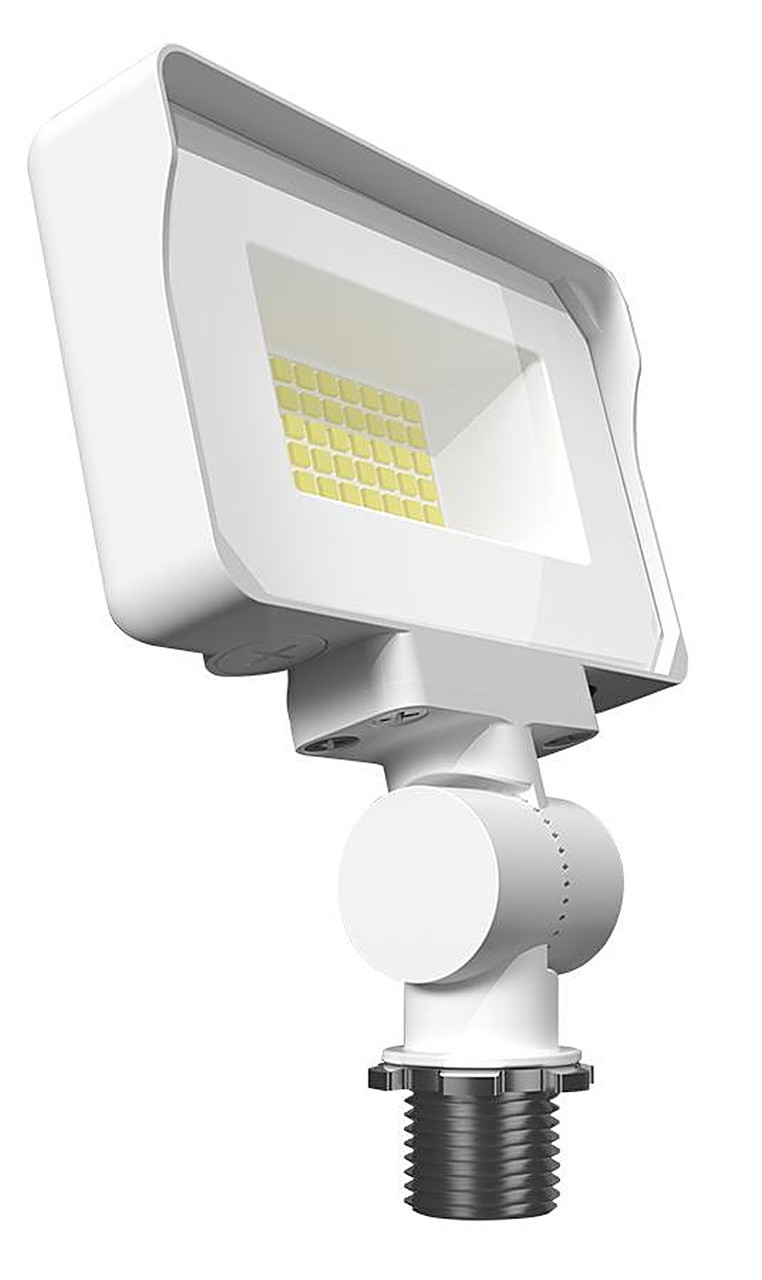

X34XSW Field-Adjustable LED Floodlight
Wattage: 16W / 13W / 10W
Color Temperature: 3000K / 4000K / 5000K Selectable
Lumens: 1,468–2,353 lm
CRI: 81–84
Mounting: Knuckle Mount
Finish: White
Voltage: 120V or 277V
IP Rating: IP65 (wet location rated)
Free shipping on orders over $250
Product Benefits
- Field-adjustable wattage and color temperature for custom lighting needs
- Compact design and knuckle mount enables precision aiming
- Weather-resistant IP65-rated housing for outdoor use
- DLC 5.1 Qualified for rebates and high energy efficiency
Key Features
- Adjustable Power: 16W, 13W, or 10W
- CCT Selectable: 3000K, 4000K, 5000K
- Lumen Output: Up to 2,353 lm
- Efficacy: Up to 150.6 lm/W
- Mounting: Knuckle mount for ½” NPS hole in junction box
- Housing: Die-cast aluminum with glass lens and polycarbonate reflector
- IP Rating: IP65 for wet locations
- Certifications: UL Listed, DLC Listed, RoHS compliant
- Warranty: 5-Year limited warranty
Specifications
| Technical Specs | |
|---|---|
| Voltage | 120V or 277V, 50/60 Hz |
| Driver Type | Constant Current, Class 1 |
| THD (Total Harmonic Distortion) | Max 16.4% |
| Power Factor | Up to 98.6% at 120V |
| Surge Protection | 2kV |
| Physical Specs | |
|---|---|
| Finish | White, weather-resistant powder coat |
| Lens | Glass |
| Reflector | Polycarbonate |
| Mounting | Knuckle mount with 180° vertical adjustment |
| Weight | 0.8 lbs |
| Performance Specs | |
|---|---|
| Lumen Output | 1,468–2,353 lumens |
| Color Temperature | Selectable: 3000K, 4000K, 5000K |
| CRI | 81–84 |
| Lifespan | 100,000 hours (L70) |
| NEMA Beam | 7H x 7V |
Application Examples
- Residential security and perimeter lighting
- Landscape lighting for architectural features
- Small commercial signage or accent lighting
- Garage or shed entrances
Installation Tips
- Secure to ½” NPS junction box hole using knuckle mount
- Use Teflon tape or silicone sealant for watertight installation
- Adjust fixture vertically up to 180° for optimal aim
- Select desired wattage and CCT before energizing fixture
- Use weatherproof sealant around the box for uneven surfaces
Frequently Asked Questions
What wattage options are available?
You can choose between 16W, 13W, or 10W settings via a built-in selector switch.
What color temperatures can I choose from?
This model offers selectable CCTs of 3000K, 4000K, and 5000K.
Is this fixture suitable for wet locations?
Yes, it is IP65 rated for outdoor use in wet environments.
What mounting method does it use?
The X34XSW uses a knuckle mount that fits into a ½” NPS hole on a junction box or post.
Does this qualify for DLC rebates?
Yes, it is DLC 5.1 qualified and may be eligible for utility rebates.
Can I install this on uneven surfaces?
Yes, just ensure you apply weatherproof silicone around the junction box edge for a proper seal.
What is the expected lifespan?
The fixture is rated for 100,000 hours based on LM-80 and TM-21 testing.
What is included in the warranty?
RAB’s 5-year limited warranty covers light output, driver, and finish.
Can I adjust the beam direction?
Yes, the knuckle mount allows 180° vertical aiming for targeted illumination.
Is it BAA compliant?
Yes, Buy American Act compliance is available upon request.
