Product Description
The RAB X34XLT is a field-adjustable, high-efficacy LED floodlight designed for outdoor commercial and industrial lighting. With trunnion mounting, selectable wattage, and CCT control, it offers powerful performance and application flexibility—all within a rugged bronze-finished housing.
Color Temperature: 3000K / 4000K / 5000K Selectable
Mounting: Trunnion
Finish: Bronze
Voltage: 120-277V
IP Rating: IP65 Rated
CRI: 83-85
Lumens: 14,615 - 20,065 lm
Efficacy: 135.3 - 162.5 lm/W
Warranty: 5-Year Limited Warranty
Free shipping on orders over $250
Benefits of the X34XLT Floodlight
- Multi-Wattage Design: Select between 130W, 110W, or 95W based on lighting needs without changing the fixture.
- Selectable Color Temperatures: Choose between 3000K, 4000K, or 5000K to suit different applications and environments.
- Weatherproof & Durable: Bronze-finished die-cast aluminum housing is IP65 rated for long-lasting outdoor use.
- DLC Premium Listed: Qualifies for top-tier utility rebates and promotes energy savings through high efficacy performance.
Key Features
- Adjustable Wattage: 130W, 110W, 95W
- Color Temperature Options: 3000K / 4000K / 5000K
- 0-10V Dimming: Dims to 10% with compatible dimming systems
- Integrated Photocell: User-switchable ON/OFF functionality
- NEMA Beam Pattern: 7H x 7V wide flood distribution
- Cold Weather Starting: Rated down to -40°C
Technical Specifications
Electrical Specs
| Input Voltage | 120-277V, 50/60Hz |
|---|---|
| Input Current | 1.13A–0.85A at 120V depending on wattage |
| Power Factor | >93.9% at all wattage levels |
| THD | Less than 8.8% |
Physical Specs
| Weight | 7.4 lbs |
|---|---|

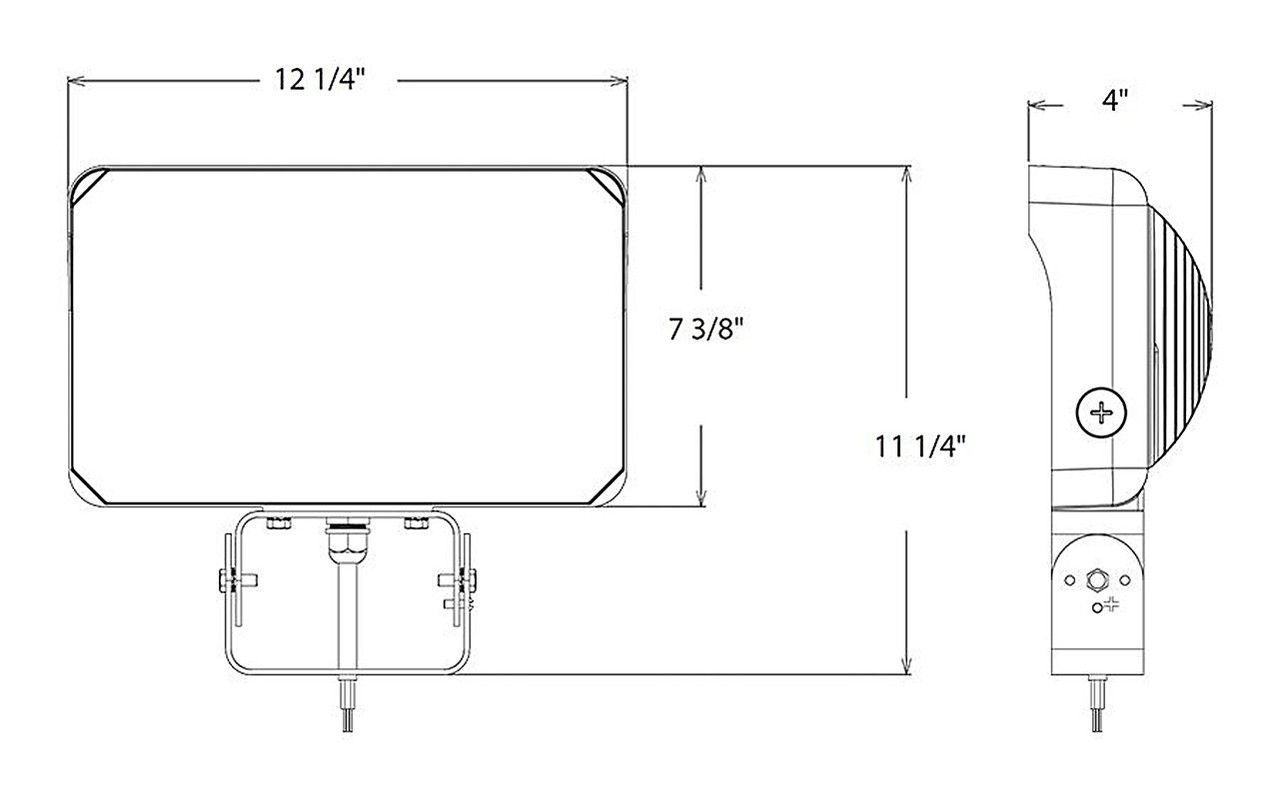

| Dimensions | 11 1/4" H x 12 1/4" W x 4" D |
| Mounting | Trunnion mount with -90° to +90° adjustment |
| Lens | Tempered glass |
| Housing | Bronze powder-coated die-cast aluminum |
Performance Specs
| Lumen Output | 14,615 – 20,065 lumens |
|---|---|
| Efficacy | 135.3 – 162.5 lm/W |
| Color Rendering Index (CRI) | 83 – 85 |
| IP Rating | IP65 |
| Lifespan | 100,000 hours (L70) |
Application Examples
- Commercial building exteriors
- Warehouse security lighting
- Signage and billboard illumination
- Perimeter and parking lot lighting
Installation Tips
- Turn off power before wiring or maintenance
- Use the angle-adjustable trunnion to position the beam precisely
- Ensure wiring follows 0-10V dimming standards if dimming is needed
- Adjust wattage, color temperature, and photocell setting using the onboard switches
- Verify secure ground connection and wet-location rated junction box
Frequently Asked Questions
Q: What is the default setting of the fixture?
A: It ships set to 130W, 4000K, and photocell OFF.
Q: Can I control brightness with a dimmer?
A: Yes, the fixture supports 0-10V dimming down to 10%.
Q: Is this model suitable for coastal or wet locations?
A: Yes, it is UL Listed for wet locations and features an IP65-rated enclosure.
Q: How do I change the color temperature?
A: Use the selector switch on the side to toggle between 3000K, 4000K, and 5000K.
Q: What is the fixture made of?
A: Die-cast aluminum housing with tempered glass lens and durable bronze finish.
Q: Does this unit qualify for rebates?
A: Yes, it is DLC Premium listed and eligible for many utility rebate programs.
Q: Is a slipfitter mount available?
A: This model is trunnion-mounted, but a slipfitter version is available separately.
