Product Description
X34M 65W/55W/45W Knuckle Bronze 3000K/4000K/5000K Selectable is RAB Lighting’s field-adjustable small flood with a rugged knuckle mount and wide 7H x 7V distribution. It delivers 6,346–9,718 lumens at 80–83 CRI with IP65 protection and a long 100,000-hour L70 life, ideal for signs, facades, and landscape accents.
Model: X34M
Type: Field-adjustable LED floodlight (knuckle mount)
Lumens: 6,346–9,718 lm (by setting)
Wattage: 65/55/45W (factory default 65W)
CCT (Selectable): 3000K / 4000K / 5000K (factory default 4000K)
CRI: 80–83
Efficacy: 128.9–166.2 lm/W
Voltage: 120/277V, 50/60 Hz
Beam: NEMA 7H x 7V
IP Rating: IP65
Listings: UL Wet Location; DLC 5.1 (Code: S-MZAHRW)
Finish / Weight: Bronze; 2.3 lbs
Warranty: 5-Year Limited
Free shipping on orders over $250
Product Benefits
- On-site flexibility—set wattage and color temperature at the fixture to match each application.
- Wide, uniform coverage from the 7H x 7V beam for signage, walls, and general floodlighting.
- Outdoor-ready durability—IP65 enclosure, die-cast aluminum housing, and glass lens.
- High efficiency up to 166 lm/W with DLC 5.1 listing for potential utility rebates.
Key Features
- Selectable output: 65/55/45W and Selectable CCT: 3000K/4000K/5000K (factory 65W/4000K).
- Electrical quality: PF ≈99% @120V; THD as low as 3.6% (65W @120V).
- Surge protection: 2kV; cold-start to -40°C, suitable up to 40°C ambient.
- Green design: RoHS components; mercury and UV free.
Specifications
| Technical Specs | |
|---|---|
| Input Voltage | 120/277V, 50/60 Hz (Class 1 driver) |
| Selectable Wattage | 65 / 55 / 45W (factory 65W) |
| Selectable CCT | 3000K / 4000K / 5000K (factory 4000K) |
| Power Factor | Up to 99.8% @120V |
| THD | As low as 3.6% @120V (65W) |
| Surge Protection | 2kV |
| Performance Specs | |
|---|---|
| Lumen Output | 6,346–9,718 lm (setting dependent) |
| Efficacy | 128.9–166.2 lm/W |
| CRI | 80–83 |
| L70 Lifespan | 100,000 hours (LM-80/TM-21) |
| NEMA Distribution | 7H x 7V (very wide) |
| Physical Specs | |
|---|---|
| Housing | Die-cast aluminum |
| Lens / Reflector | Glass lens / Polycarbonate reflector |
| Mounting | 1/2" NPS knuckle; 180° vertical aiming |
| Ambient Range | -40°C to 40°C |

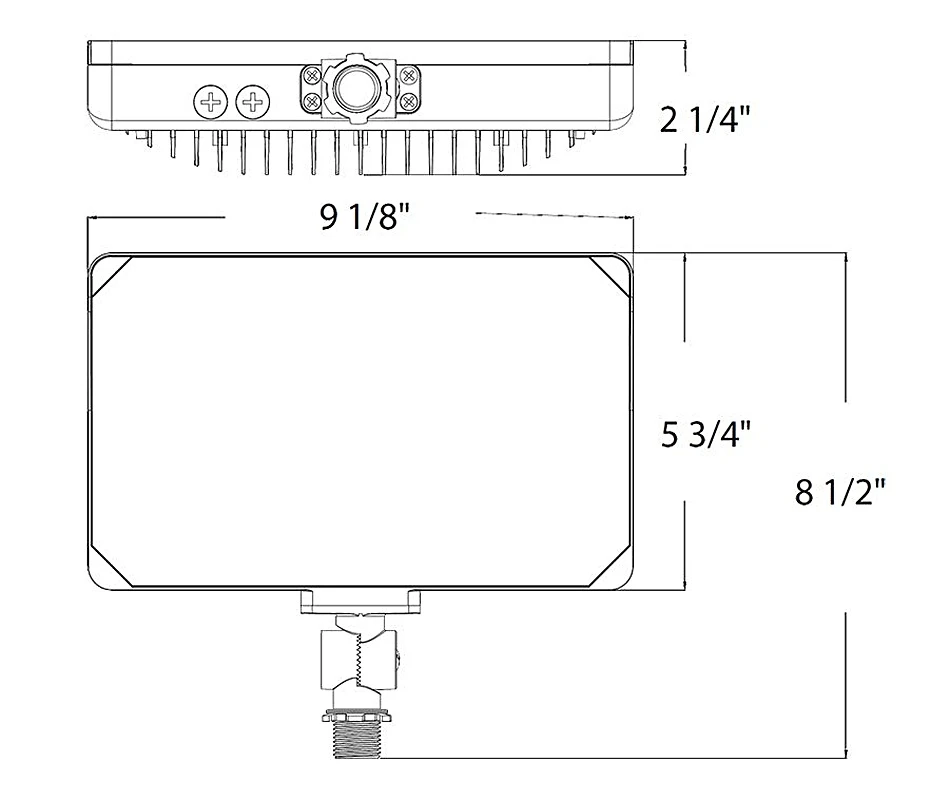

| Approx. Dimensions | 9-1/8" W × 5-3/4" H × 2-1/4" D; overall height ~8-1/2" |
| Finish / Weight | Bronze; 2.3 lbs |
| Compliance & Safety | |
|---|---|
| Listings | UL Listed for Wet Locations; IP65 |
| DLC | DLC 5.1 Qualified (S-MZAHRW) |
| Environmental | RoHS components; mercury & UV free |
| Warranty | 5-Year Limited |
Application Examples
- Wall and facade washing for retail, schools, and offices
- Sign and monument illumination
- Landscape accents for trees and architectural features
- General perimeter and security lighting
Installation Tips
- Mount to a 1/2" NPS hole on a junction box or post; seal arm threads with Teflon® tape or silicone.
- Apply weatherproof silicone around the junction box perimeter for a proper wet-location seal.
- Use the knuckle’s 180° vertical range to aim, then tighten hardware to lock position.
- Set CCT and wattage using the underside selector switches before energizing.
- Wire at 120V or 277V only: connect black (line), white (common/neutral), and ground to ground; use 90°C supply conductors.
Frequently Asked Questions
Q: What makes the X34M “field-adjustable”?
A: You can select wattage (65/55/45W) and CCT (3000/4000/5000K) via switches on the bottom of the housing.
Q: What beam pattern does it provide?
A: A very wide NEMA 7H x 7V distribution for broad, even coverage of walls, signs, and landscaping.
Q: Is it DLC listed for rebates?
A: Yes—DLC 5.1 Qualified (S-MZAHRW), which may qualify for utility incentives.
Q: How weather-resistant is the fixture?
A: It is UL Listed for wet locations and rated IP65 for dust and water ingress.
Q: What are the ambient limits?
A: Cold-starts to -40°C and is suitable up to 40°C ambient.
Q: What’s the expected lifetime?
A: Rated L70 of 100,000 hours, based on LM-80 results and TM-21 projections.
Q: How should I wire it?
A: Choose either 120V or 277V operation, connect black to line, white to neutral/common, and ground to ground using 90°C conductors.
Q: What’s included for mounting?
A: A robust knuckle mount with 180° vertical aiming; seal threads and box edges for weatherproofing.
