Product Description

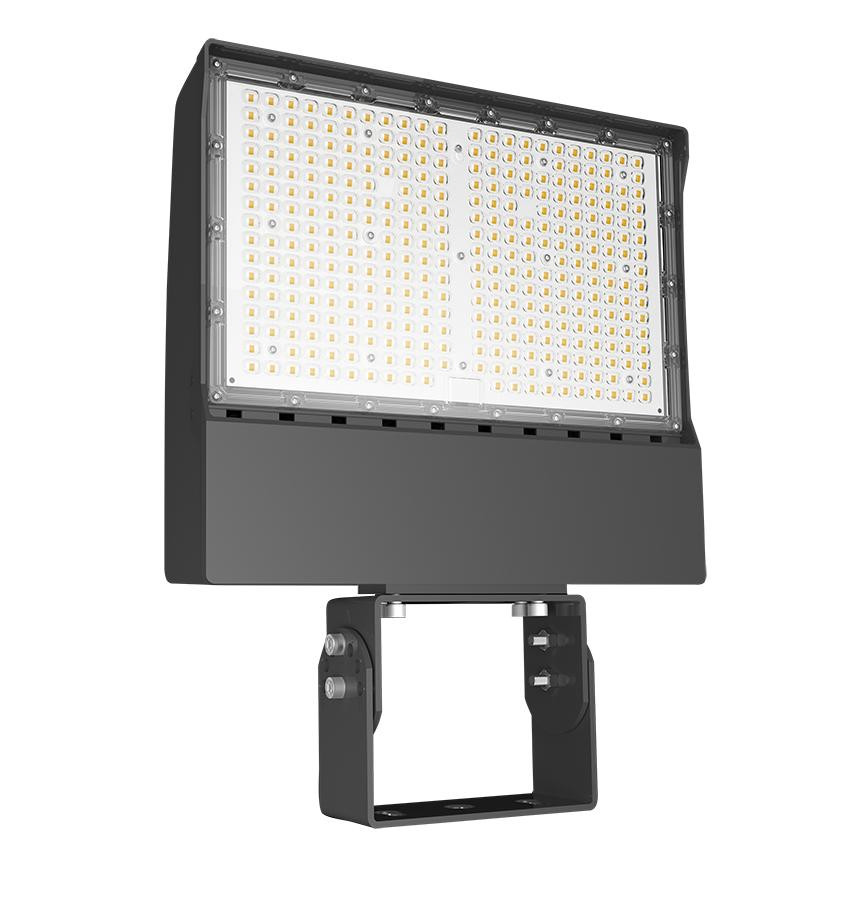

X17XFU205T/PCT Floodlights 13394-30618 Lumens X17 Adjustable 205/150/100W Field by RAB Lighting delivers high-output, field-adjustable performance for demanding outdoor and area-lighting applications. With selectable wattage and CCT, plus IP65 wet-location protection, it’s an ideal choice for contractors who need flexibility, reliability, and rebate-qualifying efficiency in a single fixture.
Quick Highlights
- Field adjustable wattage: 100W / 150W / 205W (factory default 205W)
- Selectable CCT: 3000K / 4000K / 5000K
- Lumen output: 13394-30618 lm
- Voltage: 120-277V, 50/60Hz
- Dimming: 0-10V (down to 10%)
- Wet location rated: UL Listed + IP65
- Photocell: 120-277V twistlock photocell included (shorting cap included)
- LED life: L70 100,000 hours
Free shipping on orders over $250
Product Benefits
- One fixture, multiple job requirements: Field-select wattage and CCT on-site to match photometrics, spacing, and site preferences without changing the fixture.
- Built for exterior environments: IP65 dust/water protection and UL wet-location suitability support long-term outdoor performance.
- Energy and maintenance savings: High efficacy (133.9-150.6 lm/W) and 100,000-hour L70 lifespan reduce operating and service costs.
- Controls-ready lighting: Standard 0-10V dimming and included twistlock photocell help optimize energy use for security and area lighting.
Key Features
- 3-way field adjustability: 100W/150W/205W and 3000K/4000K/5000K selectable settings.
- Optics: NEMA 7H x 6V beam spread.
- Electrical: Constant current, Class 2 driver, 120-277V, 50/60Hz.
- Dimming: 0-10V dimming wiring included; dims to 10%.
- Photocell included: 120-277V twistlock photocell; shorting cap included for photocell bypass.
- Surge protection: 10kV (CM) / 6kV (DM).
- Construction: Precision die-cast aluminum housing with tempered glass lens.
- Finish: Bronze, formulated for high durability and long-lasting color.
- Rebates: DLC Premium (Product Code: P1V0FAUY).
- Warranty: 5-year limited warranty.
Specifications
Performance
| Lumen output | 13394-30618 lm |
| Efficacy | 133.9-150.6 lm/W |
| Selectable CCT | 3000K / 4000K / 5000K |
| CRI | 71-75 CRI |
| L70 lifespan | 100,000 hours |
| Wattage equivalency | Equivalent to 750W Metal Halide |
| Optical distribution | NEMA 7H x 6V |
Electrical
| Input voltage | 120-277V, 50/60Hz |
| Input watts | 100-211.5W |
| Selectable wattage | 100W / 150W / 205W (factory default 205W) |
| 0-10V dimming | Standard; dims to 10% |
| Power factor | 99.8% at 120V; 94% at 277V |
| THD | 4.21% at 120V; 9.22% at 277V |
| Surge protection | 10kV (CM) / 6kV (DM) |
| Photocell | 120-277V twistlock photocell included (shorting cap included) |
Physical & Construction
| Finish | Bronze |
| Weight | 18.9 lbs |
| Housing | Precision die-cast aluminum |
| Lens | Tempered glass |
| Reflector | Polycarbonate |
| Mounting | Trunnion mount with stainless steel hardware |
| Tilt increment | 30° increments |
| Effective projected area | EPA = 1.4 |
| Cold weather starting | -40°C (-40°F) |
| Ambient temperature ratings | Max Power: 40°C (104°F) | Middle Power: 52°C (125°F) | Low Power: 59°C (138°F) |
Compliance & Ratings
| UL Listing | Suitable for wet locations |
| IP rating | IP65 |
| DLC | DLC Premium (Product Code: P1V0FAUY) |
| RoHS | RoHS-compliant components; Mercury and UV free |
Applications
- Commercial exteriors: building perimeters, service yards, loading areas
- Industrial sites: warehouses, plants, shipping and receiving zones
- Municipal and public spaces: parks, public works facilities, storage lots
- Security lighting: fences, gates, entry points, camera coverage areas
- General area lighting: parking lots, drive lanes, campuses
Installation Tips
- Disconnect power: Ensure power is OFF before installation or maintenance. No user-serviceable parts inside.
- Code-compliant wiring: Wire in accordance with NEC and applicable local codes; proper grounding is required for safety.
- Supply conductors: Use 75°C minimum supply conductors.
- Dimming leads: Connect Purple to DIM V+ and Pink/Gray to DIM V-. Cap the Yellow lead if present (do not connect).
- Line/neutral/ground: Connect Black/Brown to LINE, White/Blue to COMMON, and Green/Yellow to supply ground.
- Photocell option: If photocell control is not needed, install the included shorting cap in place of the photocell.
- Field adjustment: Use the selector switches to set W and CCT before final aiming and lock-down.
- Aiming: Adjust the trunnion angle to the desired position and fully tighten hardware for secure mounting.
FAQ
What wattages can this floodlight be set to?
This fixture is field adjustable to 100W, 150W, or 205W. The factory default setting is 205W.
What color temperatures are available?
The CCT is selectable at 3000K, 4000K, or 5000K to match site requirements and preferences.
What is the lumen output range?
Depending on the selected wattage and CCT setting, output ranges from 13394 lm to 30618 lm.
Is this fixture dimmable?
Yes. It includes wiring for 0-10V dimming systems and can dim down to 10%.
What voltage does it operate on?
The driver supports 120-277V, 50/60Hz operation.
Is it approved for outdoor wet locations?
Yes. The fixture is UL Listed and suitable for wet locations, and it carries an IP65 ingress protection rating for dust and water.
Does it include a photocell?
Yes. A 120-277V twistlock photocell is included. If photocell operation is not desired, use the included shorting cap.
What is the expected LED life?
The fixture is rated for 100,000 hours at L70.
Does it qualify for utility rebates?
This model is listed as a DLC Premium product (DLC Product Code: P1V0FAUY), which can help qualify for higher-tier rebate programs where available.
What is the beam pattern?
The optical distribution is NEMA 7H x 6V, supporting broad area coverage for exterior and site lighting.
