Product Description

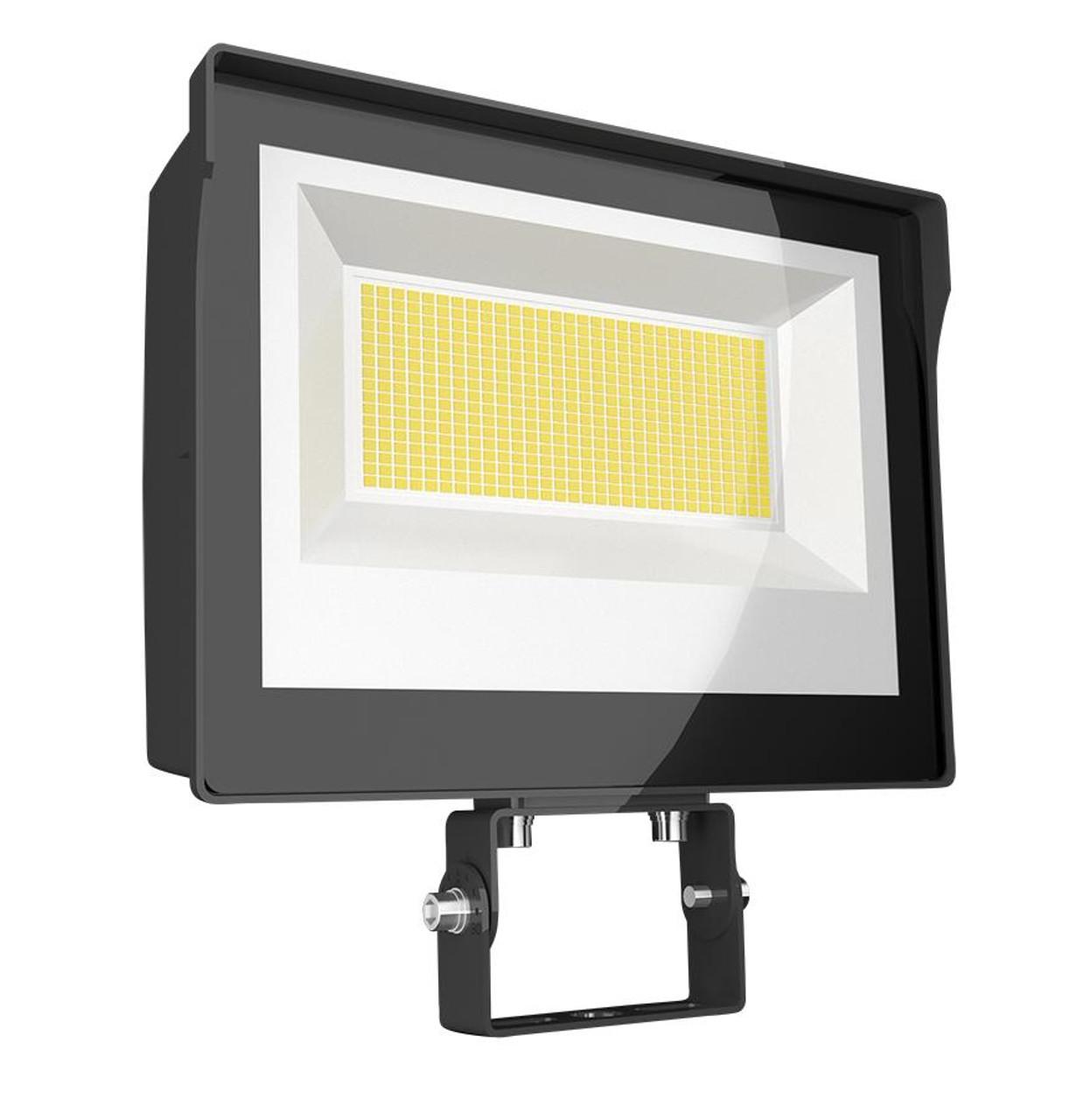

The X17FA80T Floodlight by RAB Lighting offers ultra-economical, high-performance lighting with field-adjustable color temperatures and wattage settings. Designed for outdoor general-purpose applications, it provides flexibility and durability in a sleek design.
Key Features:
- Delivers up to 11,509 lumens for bright and efficient illumination.
- Field-adjustable color temperature: 5000K, 4000K, or 3000K for customizable ambiance.
- High 83/85/84 CRI for accurate color rendering.
- Heavy-duty trunnion mount with stainless steel hardware for secure installation.
- IP65 rated for superior dust and water resistance.
- 0-10V dimming capability down to 10% for customizable lighting levels.
- Durable die-cast aluminum housing with a tempered glass lens.
- 100,000-hour LED lifespan for long-term reliability.
- DLC Premium listed for energy rebates and compliance with efficiency standards.
Specifications:
- Lumen Output: 10,712 / 11,509 / 11,325 lm
- Color Temperature: 5000K / 4000K / 3000K
- CRI: 83 / 85 / 84
- Wattage: 80W
- Voltage: 120-277V
- Dimming: 0-10V, down to 10%
- IP Rating: IP65 (dust and water resistant)
- Compliance: UL Listed, DLC Premium, RoHS compliant
- Warranty: 5 years from RAB Lighting
Installation Tips:
- Mount securely using the trunnion bracket and stainless steel hardware.
- Select the desired color temperature and photocell settings using the field-adjustable switches before installation.
- Ensure compatibility with 0-10V dimming systems for adjustable lighting levels.
- Follow the provided installation guide for step-by-step setup instructions.
Frequently Asked Questions:
Q: What applications is this floodlight suitable for?
A: The X17FA80T is ideal for outdoor general-purpose lighting, including commercial spaces, parking lots, and facades.
Q: Can this fixture be used in wet locations?
A: Yes, it is IP65 rated and suitable for outdoor use in wet locations.
Q: How do I adjust the color temperature?
A: Use the integrated selector switches to choose between 5000K, 4000K, and 3000K.
Q: Is this fixture dimmable?
A: Yes, it supports 0-10V dimming down to 10%.
