Product Description
WPTLED25N/D10/PC2 Wall Packs 2517 Lumens Tallpack 25W 0-10V Dimming 277V Photocell by RAB Lighting are high-performance LED tallpack fixtures that cover the footprint of most HID wall packs while delivering efficient, neutral white illumination. With a vandal-resistant lens, precision die-cast aluminum housing, and an integral universal-voltage photocell, this Tallpack is ideal for reliable exterior perimeter and security lighting.
Product Summary
| Product Type | High-performance LED Tallpack wall pack with integrated photocell |
|---|---|
| Lumen Output | Approximately 2693 lumens high-output LED performance |
| LED Wattage | 25W LED (approx. 20.4W input at the driver) |
| Color Temperature | 4000K neutral white for clear, comfortable visibility |
| Voltage | 120-277V universal driver with integral 120-277V photocell |
| CRI (Color Accuracy) | 76 CRI typical color rendering |
| Efficacy | Approx. 132 lm/W for excellent energy savings |
| L70 Lifetime | 100,000 hours based on LM-80/TM-21 calculations |
| Rating | UL Listed for wet locations, IP66 ingress protection, wall mount only |
| Finish | Bronze precision die-cast aluminum housing with durable powdercoat finish |
| Dimming | 0-10V dimming driver for advanced lighting control options |
Free shipping on orders over $250
Product Benefits
- Efficient HID replacement – Designed to cover the footprint of most HID Tallpacks while using a fraction of the energy, helping reduce operating costs and improve sustainability.
- Integrated universal photocell – Factory-installed 120-277V photocell provides automatic dusk-to-dawn operation, eliminating the need for separate external controls and helping prevent lights from being left on during the day.
- Rugged, vandal-resistant design – Vandal-resistant, UV-stabilized polycarbonate lens and precision die-cast aluminum housing help protect the fixture in high-traffic or exposed areas.
- Low maintenance, long life – With a projected L70 lifetime of up to 100,000 hours and no lamps to replace, this LED Tallpack greatly reduces maintenance labor and service disruptions.
Key Features
- High-efficacy LED engine delivering approximately 2693 lumens at neutral white 4000K for clear, uniform illumination around building perimeters.
- 0-10V dimmable driver standard for use with compatible lighting controls, energy management systems, and advanced dimming strategies.
- Universal input voltage driver (120-277V, 50-60 Hz) simplifies stocking and specification across a wide range of commercial and industrial sites.
- Integral 120-277V photocell for dusk-to-dawn operation; can be disabled with the included silicone cap when always-on or controlled-circuit operation is desired.
- Precision die-cast aluminum housing with superior thermal management and high-temperature silicone gaskets for long-term outdoor performance.
- Vandal-resistant, diffuse polycarbonate refractor lens to protect the LED array and deliver smooth, low-glare illumination.
- IP66-rated and UL Listed for wet locations, suitable for exposed exterior mounting when installed according to instructions.
- DLC listed to meet DLC v5.1 requirements, potentially qualifying the fixture for energy-efficiency rebates from participating utilities.
- Environmentally friendly design with mercury-free, UV-free LED technology and RoHS-compliant components.
Specifications
Technical Specifications
| Manufacturer | RAB Lighting |
|---|---|
| Model | WPTLED25N/D10/PC2 |
| Fixture Type | Tallpack LED wall pack with 0-10V dimming and integral 120-277V photocell |
| Input Voltage | 120-277V AC, 50-60 Hz universal operation |
| Driver Type | Constant Current, Class 2 driver with high power factor and low THD |
| Input Current | Approx. 0.17A at 120V; 0.10A at 208V; 0.09A at 240V; 0.08A at 277V |
| Input Power | Approximately 20.4W input (driver plus LED load) |
| Power Factor | Approximately 0.97 at 120V and 0.94 at 277V (high power factor) |
| THD | Total Harmonic Distortion typically around 15% at 120V and 11% at 277V |
Performance Specifications
| LED Wattage | 25W LED Tallpack configuration |
|---|---|
| Lumen Output | Approx. 2693 lumens initial lumen output (neutral white) |
| Efficacy | Approximately 132 lumens per watt for efficient exterior lighting |
| Color Temperature | 4000K neutral white for balanced, natural-looking light |
| CRI (Color Rendering Index) | 76 CRI typical color rendering performance |
| L70 Lifetime | 100,000-hour L70 lifetime based on LM-80 results and TM-21 calculations |
| Wattage Equivalency | Roughly equivalent to 70W metal halide or 50W high-pressure sodium Tallpack wall packs |
| BUG Rating | B0 U3 G2 optical rating for controlled glare and uplight |

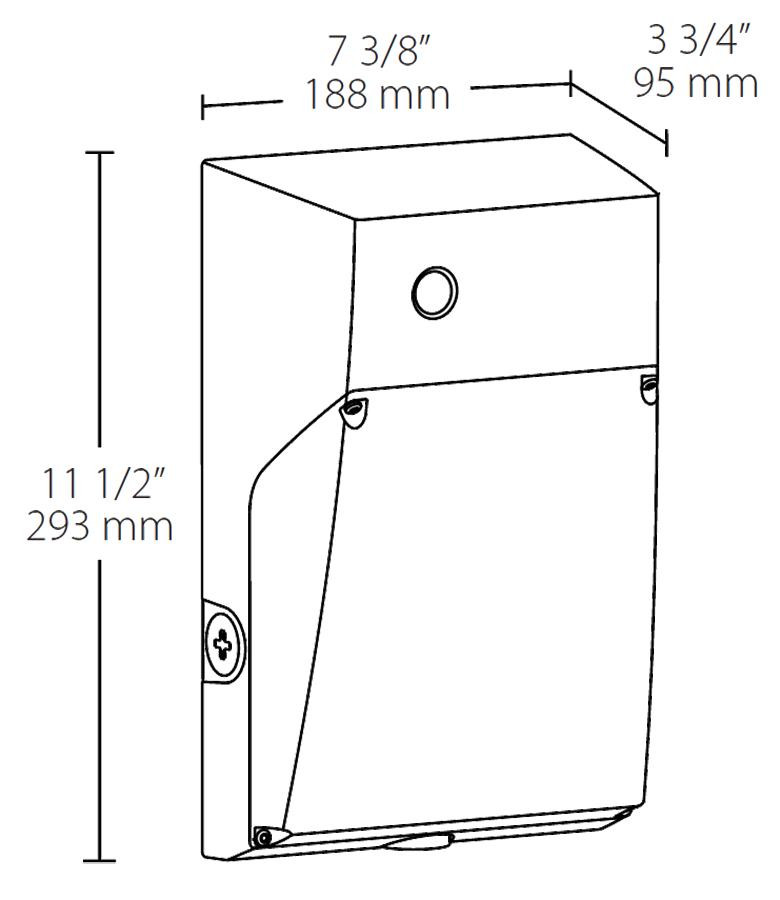

Physical Specifications
| Housing Material | Precision die-cast aluminum housing with integrated heat-sink design for superior thermal management |
|---|---|
| Lens | High-impact, diffuse, UV-stabilized polycarbonate refractor lens, vandal-resistant for tough environments |
| Reflector | High-gloss white aluminum reflector for efficient, controlled distribution |
| Gaskets | High-temperature silicone gaskets to maintain weatherproof seal and IP66 rating |
| Finish | Bronze polyester powdercoat, formulated for high durability and long-lasting color |
| Weight | Approx. 6.2 lb, lightweight for easy handling and installation |
| Ambient Temperature Range | Suitable for operation from -40°C (-40°F) to 40°C (104°F) |
| Cold Weather Starting | Minimum starting temperature of -40°C (-40°F) |
Compliance & Safety
| UL Rating | UL Listed for wet locations; wall mount only |
|---|---|
| IP Rating | IP66 ingress protection rating for dust and water |
| DLC Listing | DLC listed and designed to meet DLC 5.1 requirements, often eligible for utility rebates |
| Trade Agreements Act | TAA compliant “designated country” product (manufactured in a qualifying country) |
| Environmental | Mercury- and UV-free LED source; RoHS-compliant components for green technology |
| Warranty | RAB limited five-year warranty covering light output, color stability, driver performance, and fixture finish (see manufacturer’s warranty terms) |
Application Examples
- Building perimeter lighting for offices, warehouses, schools, retail centers, and industrial facilities where consistent, reliable illumination is required.
- Entryways, stairwells, and egress paths around doors and access points to help meet safety and code-compliance requirements.
- Walkways and pedestrian areas on commercial campuses and multi-tenant properties that need energy-efficient, dusk-to-dawn lighting.
- Loading docks and service corridors where a durable, vandal-resistant fixture is needed to withstand heavy use and potential impacts.
- Security and site lighting for building rear elevations, alleys, and parking structure perimeters with integrated photocell control.
Installation Tips
- Disconnect power before installation and ensure all work is performed in accordance with the National Electrical Code and applicable local codes by a qualified electrician.
- Mount to a junction box or directly to a sturdy wall using the provided drilling template and appropriate mounting hardware such as lag bolts and anchors for the surface type.
- Use all gaskets and plugs as supplied and verify that the door gasket and wall box gasket are fully seated to maintain the weatherproof IP66 rating.
- Seal all openings with silicone – apply exterior-grade weatherproof silicone sealant around the edge of the wall box or junction box and any unused conduit entries, especially on uneven wall surfaces.
- Follow proper wiring practices: connect the black lead to line (hot), white to neutral, and green or bare to ground. Ensure connections are made with UL-listed wire connectors.
- For 0-10V dimming, connect the purple fixture lead to the positive dimming lead (V+) and the pink/gray lead to the negative dimming lead (V-). Cap these leads individually if dimming is not used.
- Photocell configuration – leave the photocell exposed for dusk-to-dawn operation, or install the supplied black silicone PC cap over the photocell to disable it for full-time or controlled-circuit operation.
- Final inspection – after mounting and wiring, ensure all screws are tightened, all seals are intact, and there are no gaps or unsealed penetrations before restoring power.
Frequently Asked Questions
How many lumens does the WPTLED25N/D10/PC2 Tallpack produce?
The WPTLED25N/D10/PC2 Tallpack wall pack delivers approximately 2693 lumens of neutral white light, providing efficient illumination comparable to traditional small HID Tallpack fixtures with far lower energy consumption.
What color temperature and CRI does this RAB Tallpack offer?
This RAB Tallpack uses a 4000K neutral white LED source with a typical 76 CRI, providing balanced, natural-looking light that works well for security, safety, and general site lighting applications around building perimeters.
Does the WPTLED25N/D10/PC2 include a photocell for dusk-to-dawn operation?
Yes. The fixture is equipped with an integral 120-277V photocell that automatically turns the light on at dusk and off at dawn when exposed. If photocell operation is not desired, you can use the supplied black silicone cap to cover the photocell and disable it for full-time or controlled-circuit use.
Is the WPTLED25N/D10/PC2 wall pack dimmable?
The WPTLED25N/D10/PC2 comes standard with a 0-10V dimming driver. When wired to a compatible 0-10V control, the fixture can be dimmed for energy savings, scheduling, or integration with advanced lighting control systems. If dimming is not used, simply cap the purple and pink/gray dimming leads individually.
Is this RAB Tallpack suitable for wet locations and harsh outdoor environments?
Yes. The fixture is UL Listed for wet locations and has an IP66 ingress protection rating, meaning it is engineered to withstand dust and powerful water jets when installed correctly. High-temperature silicone gaskets, a die-cast aluminum housing, and a vandal-resistant polycarbonate lens further enhance its durability outdoors.
What HID wattage can the WPTLED25N/D10/PC2 replace?
The WPTLED25N/D10/PC2 Tallpack is designed as an efficient alternative to small HID Tallpack wall packs, with a performance roughly equivalent to a 70W metal halide or 50W high-pressure sodium unit, while using significantly less energy and requiring far less maintenance.
Is the RAB WPTLED25N/D10/PC2 DLC listed and rebate eligible?
This RAB Tallpack is designed to meet DLC v5.1 requirements and is listed on the DLC Qualified Products List, which often makes it eligible for energy-efficiency rebates from participating utilities. Always verify current DLC listings and local rebate program rules when planning your project.
Where is the WPTLED25N/D10/PC2 manufactured, and is it TAA compliant?
The WPTLED Tallpack family is produced in a Trade Agreements Act designated country, and the WPTLED25N/D10/PC2 is identified as a TAA-compliant product, making it suitable for many federal and government projects that require TAA-compliant lighting equipment.
What warranty coverage does RAB provide for this LED Tallpack?
RAB backs the WPTLED25N/D10/PC2 with a five-year limited warranty that covers defects in materials and workmanship, including light output, color stability, driver performance, and fixture finish, subject to the full warranty terms available from RAB Lighting.
