Product Description

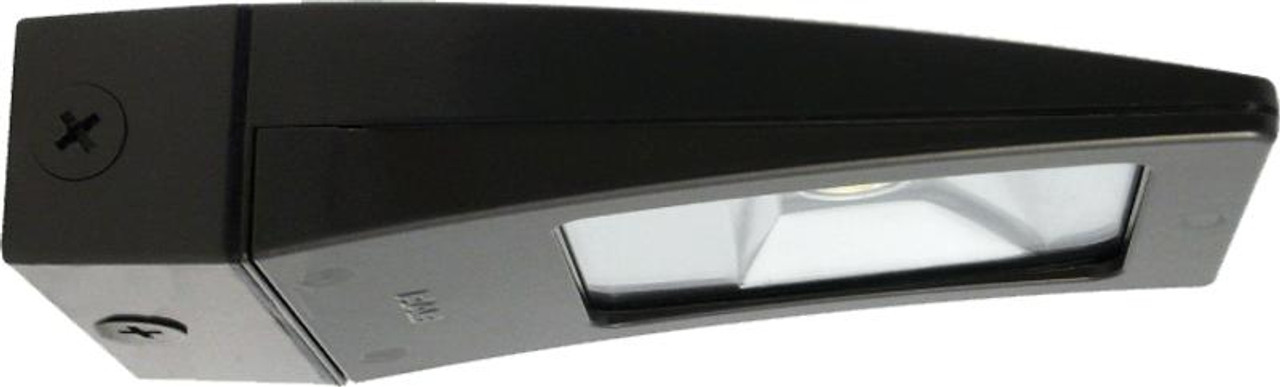

RAB WPLED13N Wall Pack delivers 1,652 lumens from a 13W LED engine in a rugged bronze housing, providing reliable perimeter and entry lighting with 0–10V dimming and a 5-year warranty.
Quick Specs
- Lumens: 1,652 lm
- Wattage: 13W (Input 14.8W typical)
- CCT: 4000K (Neutral)
- CRI: 70+
- Efficacy: 111.6 lm/W
- Voltage: 120–277V, 50/60 Hz
- Dimming: 0–10V (to 10%)
- Rating: Wet location (downlight) / Damp (uplight)
- BUG: B1 U0 G0
- Warranty: 5 Years
Free shipping on orders over $250
Highlights
- 100,000-hour L70 lifespan
- DLC 5.1 listed (rebate eligible)
- Die-cast aluminum with superior heat sinking
- Cold-start rated to −40°F (−40°C)
Benefits
- Energy-saving replacement for 70W metal halide wall packs with similar light levels and far lower power draw.
- Long-life reliability with 100,000-hour L70 for reduced maintenance cycles.
- Harsh-weather ready thanks to wet-location rating (downlight), cold-start to −40°C, and high-temperature silicone gaskets.
- Controls-friendly with 0–10V dimming leads and field-addable photocell option.
Key Features
- DLC 5.1 listed; eligible for utility rebates (Code: P9Z33J0H).
- 0–10V dimming driver, Class 2, 120–277V; dims to 10%.
- High efficacy 111.6 lm/W; 1,652 lumens at 13W.
- Die-cast aluminum housing with external fins for superior heat sinking.
- Wet location downlight / damp uplight, wall-mount only, within 4 ft of ground.
- Surge protection 4 kV; PF up to 0.99; THD as low as 7.08% (120V).
Specifications
Technical Specs
| Listing | UL Listed: Wet location (downlight), Damp (uplight); wall mount only; suitable within 4 ft of ground. |
| DLC | DLC 5.1 listed (Code: P9Z33J0H). |
| Lifespan | 100,000 hours (L70). |
| Ambient Range | −40°F (−40°C) min start; up to 131°F (55°C) max ambient. |
| Surge / Power Quality | 4 kV surge; PF 0.99 @120V / 0.904 @277V; THD 7.08% @120V / 15.05% @277V. |
| Warranty | 5-year, no-compromise warranty. |
| Buy American Act | BAA compliance available on request. |
Physical Specs
| Housing | Die-cast aluminum with external fins; weatherproof high-temperature silicone gaskets. |
| Finish | Bronze, formulated for durability and long-lasting color. |
| Weight | 4.4 lb. |

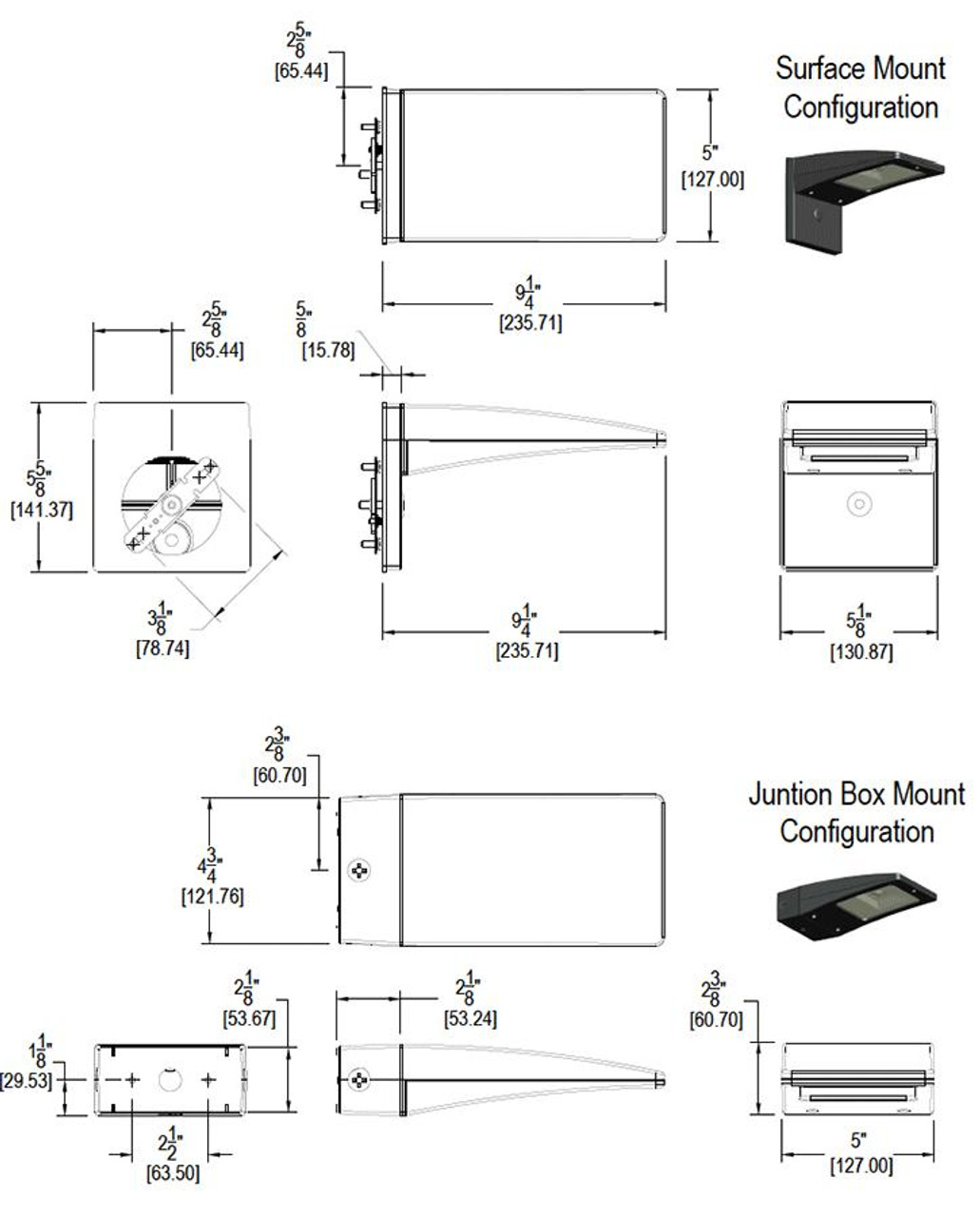

| Mounting | Wall-mount only; surface or recessed junction box configurations supported. |
Performance Specs
| Lumen Output | 1,652 lm |
| CCT | 4000K (Neutral) |
| CRI | 70 |
| Efficacy | 111.6 lm/W |
| Wattage | 13W (driver input 14.8W) |
| Voltage | 120–277V, 50/60 Hz |
| Dimming | 0–10V, dims to 10% |
| BUG Rating | B1 U0 G0 |
| Equivalent | Replaces ~70W metal halide wall packs |
Specs verified from manufacturer documentation.
Application Examples
- Building entrances, exits, and doorways
- Perimeter security and walkways
- Loading docks and side alleys
- Schools, warehouses, multifamily and retail exteriors
Installation Tips
- Power OFF before installation; follow NEC and local codes.
- Seat all gaskets properly; apply weatherproof silicone around back box and any unused conduit entries, especially on uneven walls.
- For recessed box mounting, use the supplied crossbar and cap the mounting screw as shown in the guide.
- Fixture may be installed as an uplight or downlight (observe location ratings).
- 0–10V wiring: purple = dim (+), pink/gray = dim (−); do not bond the dimming ground to output; cap yellow lead if present.
- Field-installable photocell: remove top plug, install and wire per diagram, using a photocell rated for supply voltage.
Frequently Asked Questions
Is the WPLED13N suitable for wet locations?
Yes—when mounted as a downlight it is rated for wet locations; as an uplight it is suitable for damp locations only.
What dimming does it support?
It includes 0–10V dimming leads and dims down to 10% with a compatible control.
What’s the expected lifetime?
The LED engine is rated for 100,000 hours to L70.
Does it qualify for rebates?
Yes, it’s DLC 5.1 listed (Code: P9Z33J0H), which is commonly required for utility incentives.
What fixture does it typically replace?
It’s an efficient replacement for ~70W metal halide wall packs.
Can it operate in very cold climates?
Yes, it’s rated for cold starts down to −40°C (−40°F).
What are the power quality specs?
Power factor up to 0.99 and THD as low as 7.08% (120V); 4 kV surge protection.
Is a photocell included?
No. A photocell can be added in the field; follow the installation diagram and seal all openings.
What is the BUG rating?
B1 U0 G0, suitable for minimizing glare and uplight.
What’s covered by the warranty?
RAB’s 5-year warranty covers light output, color stability, driver performance, and finish (see full terms with the manufacturer).
