Product Description
RAB WP3XFU120 Wall Pack delivers powerful, field-adjustable illumination with lumen outputs ranging from 12,229 to 18,718 lumens. Designed with selectable wattages (80W/100W/120W) and color temperatures (3000K, 4000K, 5000K), this versatile wall pack ensures maximum flexibility for outdoor applications. Built with a bronze die-cast aluminum housing and IP65 rating, it provides long-lasting performance and reliable protection against dust and water.
- Lumen Output: 12,229 – 18,718 lm
- Wattage: Field Adjustable 80W / 100W / 120W
- Color Temperature: Selectable 3000K / 4000K / 5000K
- CRI: 80+
- Voltage: 120-277V, 50/60Hz
- IP Rating: IP65, suitable for wet locations
- Lifespan: 100,000 hours (L70)
- Warranty: 5-Year Limited
- Finish: Bronze
- Free shipping on orders over $250
Product Benefits
- Field Adjustable: Customize wattage and color temperature to match site requirements.
- Energy Efficient: Delivers up to 160 lm/W efficacy for reduced energy costs.
- Durable Construction: Die-cast aluminum housing and tempered glass lens for long-term performance.
- Outdoor Ready: IP65 rating ensures reliable operation in all weather conditions.
Key Features
- Selectable Wattages: 80W / 100W / 120W
- Selectable CCT: 3000K / 4000K / 5000K
- Dimming: 0-10V dimmable down to 10%
- Photocell: 120-277V selectable on/off switch
- Housing: Bronze die-cast aluminum
- Lens: Impact-resistant tempered glass
- Compliance: UL Listed, DLC Premium, RoHS Compliant
Specifications
Technical Specs
| Lumen Output | 12,229 – 18,718 lm |
| Wattage | Field Adjustable 80W / 100W / 120W |
| Efficacy | 143.8 – 160.8 lm/W |
| Color Temperature | 3000K / 4000K / 5000K Selectable |
| CRI | 80+ |
Physical Specs
| Housing | Die-cast aluminum |
| Lens | Tempered glass |
| Finish | Bronze, formulated for durability |
| Weight | 11.5 lbs |

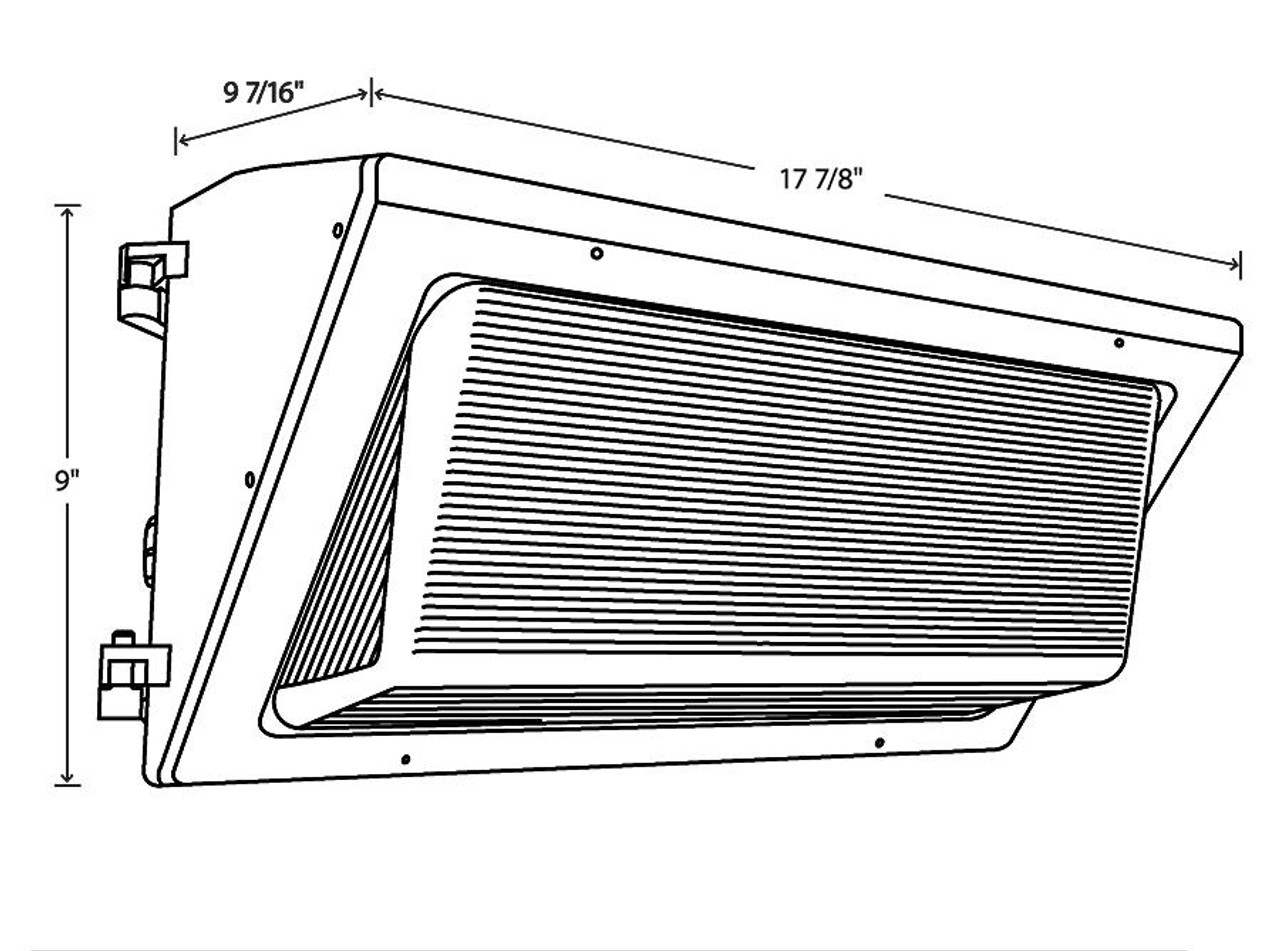

| Dimensions | 17 7/8" x 9 7/16" |
Performance Specs
| Lifespan | 100,000 hours (L70) |
| Operating Temp | -40°C to 50°C depending on wattage |
| IP Rating | IP65, dust and water resistant |
| Equivalent | Replaces up to 400W Metal Halide |
Application Examples
- Building perimeters and security lighting
- Commercial parking lots and garages
- Industrial facilities and warehouses
- Educational campuses and walkways
- Public spaces requiring reliable outdoor illumination
Installation Tips
- Ensure power is OFF before installation.
- Mount securely using the provided back plate and gasket for proper weatherproofing.
- Seal with silicone caulking for wet location compliance.
- Adjust wattage and CCT switches before final installation.
- Connect 0-10V dimming wires only if dimming is required.
Frequently Asked Questions
Q: What wattage options are available?
A: The WP3XFU120 can be set to 80W, 100W, or 120W using the selector switch.
Q: Can I change the color temperature?
A: Yes, you can select between 3000K, 4000K, and 5000K directly on the fixture.
Q: Is the fixture dimmable?
A: Yes, it features 0-10V dimming capability down to 10%.
Q: Does this wall pack include a photocell?
A: Yes, a 120-277V selectable photocell is built in and can be switched on/off.
Q: What is the expected lifespan?
A: Rated for 100,000 hours based on LM-80 and TM-21 standards.
Q: Is it suitable for wet locations?
A: Yes, with an IP65 rating, it is fully weatherproof and outdoor-ready.
Q: What warranty does RAB provide?
A: This wall pack comes with a 5-year limited warranty covering output, driver, and finish.
Q: What metal halide wattage does it replace?
A: It replaces up to 400W MH fixtures, depending on the wattage setting.
