Product Description

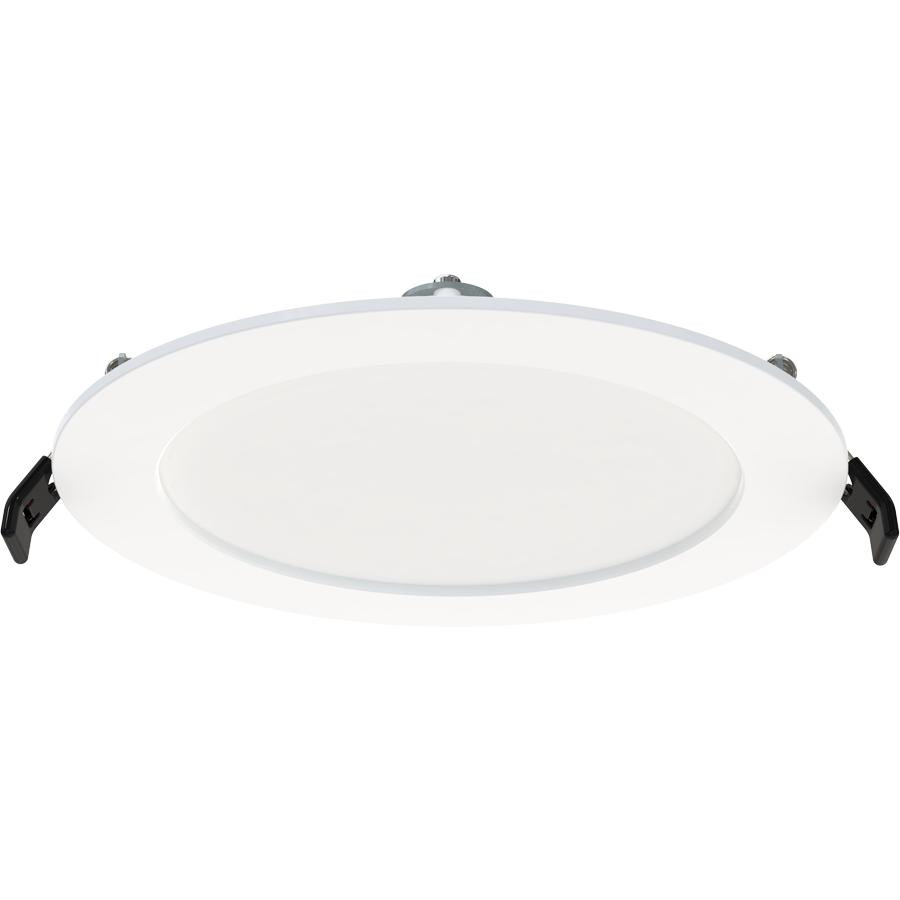

RAB WFR34-6/BP is a 6-inch edge-lit, field-adjustable LED downlight engineered for efficient performance, simple installation, and superior light quality. This contractor-friendly fixture provides five selectable color temperatures and smooth TRIAC/ELV dimming for ultimate flexibility in residential and commercial environments. With a low-profile, can-less design and integrated junction box, it installs quickly and delivers consistent illumination in any application.
- Manufacturer: RAB Lighting
- Model: WFR34-6/BP
- Size: 6-inch Round Edge-Lit Wafer
- Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K Selectable
- CRI: 90+
- Lumen Output: 897–1040 lm
- Wattage: 13W (75W Incandescent Equivalent)
- Voltage: 120V
- Dimming: TRIAC / ELV down to 10%
- Finish: White Smooth Trim
- Free shipping on orders over $250
Product Benefits
- Versatile lighting solution with five adjustable color temperatures from warm to cool white, ideal for multi-room applications.
- Ultra-slim, can-less design simplifies installation in both new construction and remodel projects.
- Energy-efficient 13W LED replaces 75W incandescent lamps, reducing energy costs and maintenance.
- IC-rated and wet location approved for use in kitchens, bathrooms, and covered outdoor spaces.
Key Features
- Selectable CCT: Field-adjustable 2700K / 3000K / 3500K / 4000K / 5000K via onboard dip switch.
- 90 CRI light quality ensures natural, accurate color rendering.
- Beam angle: 110° ±10° for wide, uniform illumination.
- Dimmable: Compatible with TRIAC and ELV dimming systems down to 10%.
- Remote driver box: Integrated junction box allows direct mounting without a housing.
- Durable construction: Plastic and metal build with frosted polycarbonate lens for smooth diffusion.
- Certified safe: UL Listed, IC rated, NEC and Title 24 compliant.
Technical Specifications
| Performance Specs | |
|---|---|
| Lumen Output | 897–1040 lm |
| Watts | 13W |
| Efficacy | 70–84 lm/W |
| L70 Lifespan | 30,000 Hours |
| Color Temperature | 2700K–5000K (Selectable) |
| CRI | 90+ |
| Electrical Specs | |
|---|---|
| Input Voltage | 120V, 60Hz |
| Input Current | 0.13A |
| Power Factor | 0.9 |
| THD | <20% |
| Dimming | TRIAC / ELV down to 10% |
| Operating Temperature | -4°F to 104°F (-20°C to 40°C) |
| Construction & Compliance | |
|---|---|
| Trim Style | Round Smooth |
| Finish | White |
| Lens | Frosted Polycarbonate Diffuser |
| Housing | Plastic + Metal |
| Environment | Indoor/Outdoor, Damp & Wet Rated |
| IC Rating | Suitable for direct contact with insulation |
| Certifications | UL Listed, FCC, RoHS, NEC Compliant, Title 24 JA8 |
Application Examples
- Residential recessed lighting in kitchens, living rooms, and bathrooms.
- Commercial spaces such as offices, hotels, and corridors.
- Remodel or new construction projects with limited plenum space.
- Outdoor soffit or covered entryway lighting.
Installation Tips
- Turn power OFF at the breaker before beginning installation.
- Use provided template to cut the ceiling opening (6 5/16" for WFR34-6/BP).
- Connect fixture wires to matching supply wires: white to white, black to black, green to ground.
- Secure wiring inside the junction box and select desired color temperature using the dip switch.
- Insert driver box and snap fixture into ceiling; ensure trim sits flush.
- Use compatible mounting plates or extension cables as needed (DLPLATE/WFR6/NB/CL, EXTCBL-FA series).
Frequently Asked Questions (FAQ)
Q: What is the wattage and lumen output of the RAB WFR34-6/BP?
A: It consumes 13 watts and produces between 897 and 1040 lumens depending on selected CCT.
Q: Can this downlight be dimmed?
A: Yes, it’s dimmable down to 10% using compatible TRIAC or ELV dimmers.
Q: Is the WFR34-6/BP suitable for use in wet locations?
A: Yes, it’s rated for indoor and outdoor wet environments.
Q: Does this fixture require a housing?
A: No, the wafer design with remote driver eliminates the need for traditional housings.
Q: What color temperatures can be selected?
A: You can select from 2700K, 3000K, 3500K, 4000K, or 5000K via an onboard dip switch.
Q: What is the CRI of this model?
A: It offers a high color rendering index of 90+, ensuring natural, accurate colors.
Q: Is this fixture compatible with insulation contact (IC)?
A: Yes, it’s IC-rated for direct contact with insulation.
Q: What warranty does RAB provide?
A: The product includes a 3-year limited warranty covering LED output, driver, and finish.
Q: Can this light be installed in tight ceiling spaces?
A: Absolutely—its slim, can-less design is ideal for low-clearance or retrofit applications.
Q: What accessories are available?
A: Optional goof rings, color trims, and mounting plates are available for various installation needs.
