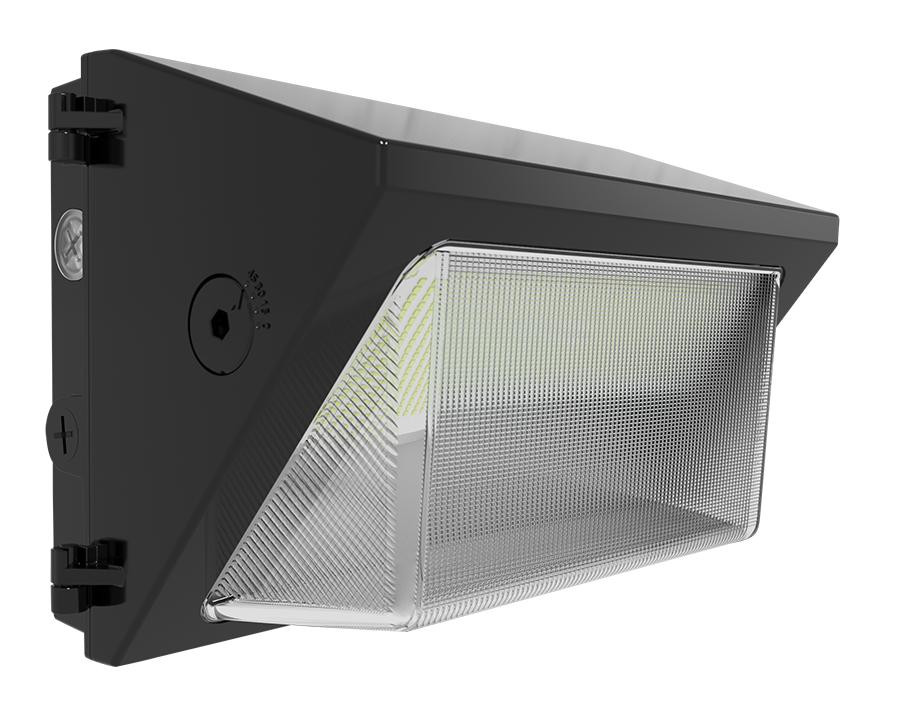

W22M100 Wallpack Medium 100/85/70/50W 3000K/4000K/5000K Adjustable Throw

Product Description

W22M100 Wallpack Medium 100/85/70/50W 3000K/4000K/5000K Adjustable Throw from RAB Lighting is a highly versatile LED wallpack engineered for outdoor perimeter and area lighting. With selectable wattage, CCT, and adjustable forward throw optics, it delivers up to 14,087 lumens and supports 0-10V dimming. Its durable bronze housing and integrated photocell make it a go-to fixture for energy savings, configurability, and long-lasting performance.

Product Benefits

• Field-adjustable wattage and CCT for jobsite flexibility and SKU reduction
• Adjustable beam angles from 0° to 45° for optimized light distribution
• DLC Premium listed for rebate qualification and high efficacy performance
• 100,000-hour lifespan ensures long-term reliability and low maintenance

Key Features

• Selectable Wattage: 100W, 85W, 70W, or 50W
• Selectable Color Temperature: 3000K, 4000K, 5000K
• Lumen Output: 6,170 to 14,087 lumens
• Efficacy: 116.5 – 159.2 lm/W
• Adjustable Optics: 0°, 15°, 30°, 45° forward throw (factory set at 45°)
• Integrated Photocell: On/Off switchable for daylight sensing
• Housing: Die-cast aluminum with glass lens
• Mounting: Surface mount for recessed junction box
• Certifications: UL Listed, DLC Premium 5.1, RoHS Compliant
• Warranty: 5-Year Limited Warranty

Specifications

Technical Specs
Input Voltage	120–277V AC, 50/60 Hz
Input Current	Up to 0.83A @ 120V (varies by wattage)
Driver Type	Constant Current, Class 1
Power Factor	> 0.9
Surge Protection	4kV Differential Mode, 6kV Common Mode
Dimming	0–10V down to 10%

Physical Specs
Finish	Bronze powdercoat
Housing	Die-cast aluminum
Lens	Glass
Weight	9.5 lbs
Mounting	Surface mount with 3 conduit entry points

Performance Specs
Lumen Output	6,170–14,087 lumens
Color Temperature	3000K / 4000K / 5000K
CRI	82–85
LED Lifespan	100,000 hours (L70)
Beam Options	Adjustable to 0°, 15°, 30°, 45°
BUG Rating	Up to B3-U5-G5

Application Examples

• Building perimeter lighting
• Warehouses and commercial facility exteriors
• Parking lots and pathways
• Public safety and security zones

Installation Tips

• Mount to flat wall using junction box drill pattern (template provided)
• Apply silicone sealant around edges for weatherproofing, especially on uneven surfaces
• Adjust beam angle using built-in selector (0° to 45°)
• Access selector switch to set wattage, color temp, and photocell ON/OFF
• Use 0–10V control wiring for dimming capability

Frequently Asked Questions

How do I change the wattage or CCT?
Use the selector switches located on the side of the housing. Wattage can be set to 100W, 85W, 70W, or 50W, and CCT to 3000K, 4000K, or 5000K:contentReference[oaicite:0]{index=0}.

What is the default setting out of the box?
Factory defaults are 100W, 4000K, and 45° throw angle:contentReference[oaicite:1]{index=1}.

Can I disable the integrated photocell?
Yes, the photocell includes a switch to turn it on or off based on daylight sensing needs:contentReference[oaicite:2]{index=2}.

Is the fixture DLC listed?
Yes, it's DLC Premium 5.1 listed and qualifies for top-tier utility rebates:contentReference[oaicite:3]{index=3}.

Is this fixture wet-location rated?
Yes, the W22M100 is UL Listed for wet locations:contentReference[oaicite:4]{index=4}.

What beam angles are available?
You can adjust the beam to 0°, 15°, 30°, or 45° using a 5/16” Allen wrench:contentReference[oaicite:5]{index=5}.

Can I use this with a 0-10V dimmer?
Yes, the driver supports 0–10V dimming down to 10% light output:contentReference[oaicite:6]{index=6}.

Is there a battery backup version?
Yes, battery backup models are available and include internal EM drivers with test button access:contentReference[oaicite:7]{index=7}.
