Product Description

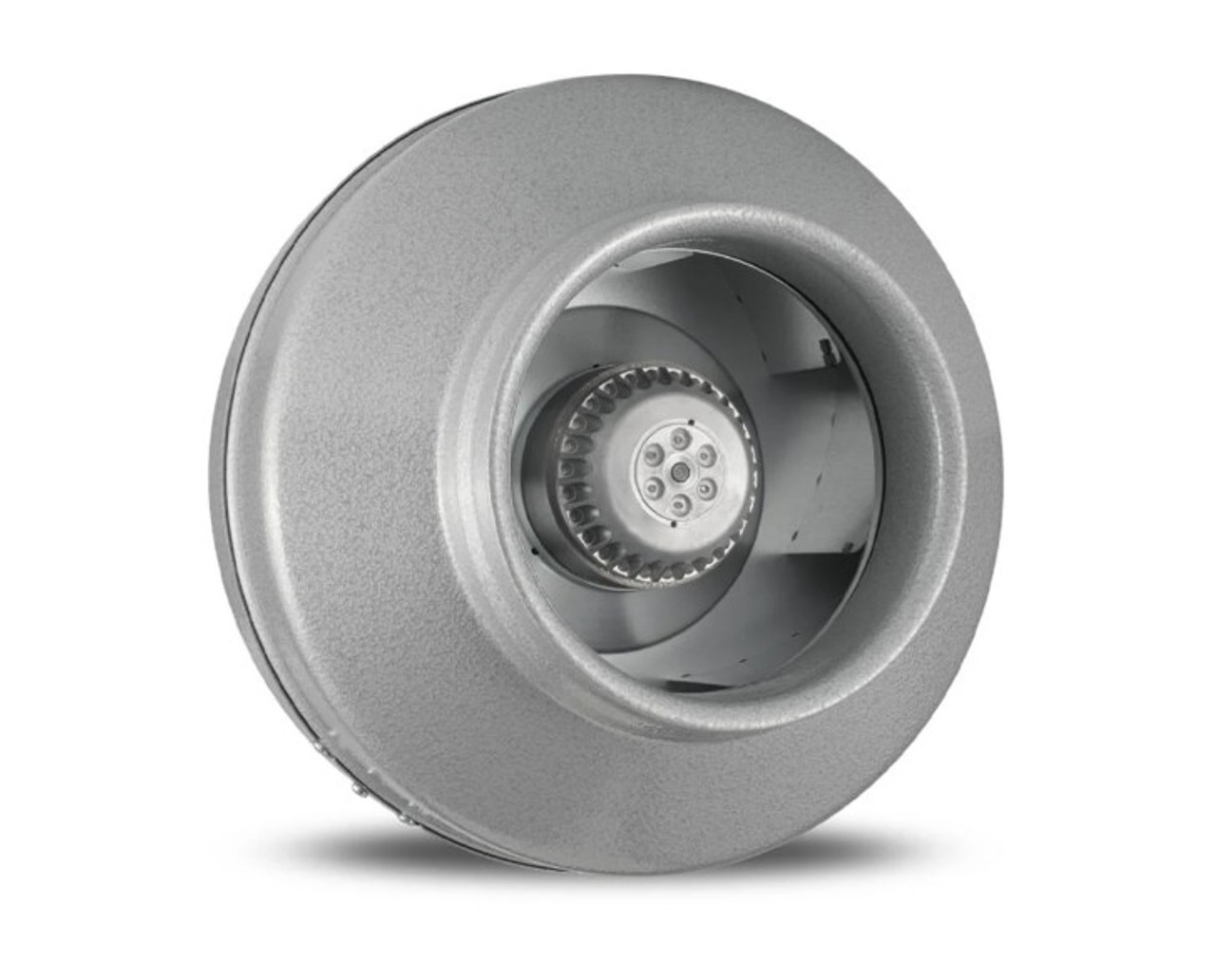

VTX800L Inline Centrifugal Fan by Atmosphere delivers high-performance airflow for medium-to-large residential and light commercial ventilation systems. With a 602 CFM rating at 0.2” static pressure, this 8" blower fan is engineered for long duct runs, hydroponics, grow rooms, and HVAC boosting applications. The unit features a quiet external rotor motor, permanently sealed bearings, and aerodynamic steel housing—prewired for quick installation.
Brand: Atmosphere
Model: VTX800L
Type: 8" Inline Centrifugal Duct Fan
Airflow: 602 CFM @ 0.2" SP
Voltage: 120V / 60Hz
Wattage: 196W | Amps: 1.62A
Free shipping on orders over $250
Product Benefits
- Powerful 8" inline fan ideal for higher static pressure duct systems
- Prewired 120V cord enables fast plug-and-play setup
- Quiet, reliable performance with aerodynamic housing
- 10-year manufacturer’s warranty for long-term reliability:contentReference[oaicite:0]{index=0}
Key Features
- 602 CFM at 0.2” SP: Efficient air volume for HVAC and grow applications:contentReference[oaicite:1]{index=1}
- External Rotor Motor: Cooled for extended runtime with thermal reset
- Sealed Bearings: Maintenance-free operation—no lubrication needed
- Speed Controllable: Compatible with most 120V fan speed controllers
- Steel Construction: 18-gauge metal housing with mounting brackets included
Specifications
Technical Specs
| Airflow | 602 CFM @ 0.2" SP |
| Motor Speed | 3000 RPM |
| Voltage | 120V / 60Hz |
| Wattage | 196 Watts |
| Amperage | 1.62 A |

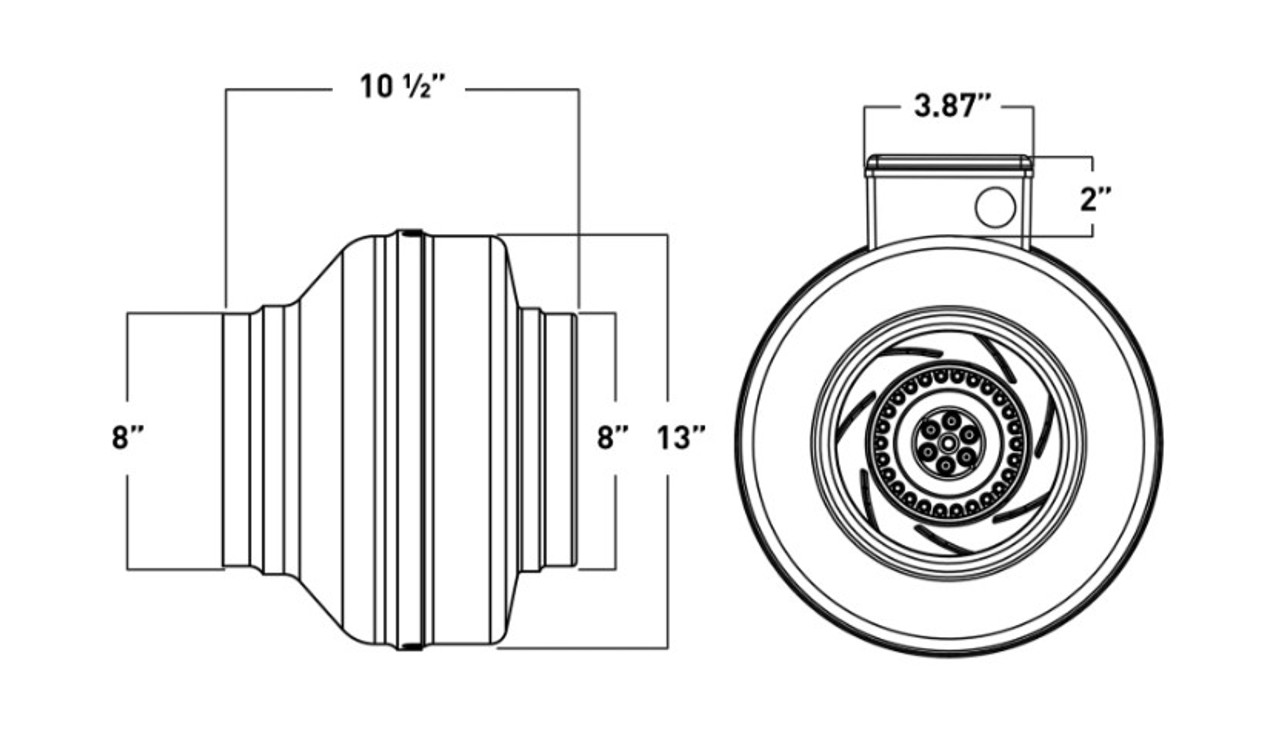

Physical Specs
| Duct Diameter | 8" |
| Fan Body Diameter | 10.5" |
| Length | 13.0" |
| Shipping Weight | 15.0 lbs |
| Material Gauge | 18-gauge steel |
Application Examples
- Inline HVAC ducting for large residential or light commercial spaces
- Grow room ventilation and hydroponic airflow management
- Long duct runs requiring airflow reinforcement
- Exhaust boosting for multi-bathroom or multi-zone systems
Installation Tips
- Mount horizontally or vertically using included brackets
- Connect with solid or flex duct using foil tape or clamps
- Do not install in damp or wet areas; keep power cord dry
- Inspect impeller yearly; clean gently with damp cloth if debris is visible:contentReference[oaicite:2]{index=2}
- Ensure fan is vented to the outdoors per code
Frequently Asked Questions
What is the airflow performance at 0.2" static pressure?
The VTX800L provides 602 CFM at 0.2" SP—suitable for high-volume ducted airflow needs:contentReference[oaicite:3]{index=3}.
Is it compatible with fan speed controllers?
Yes, it is 100% speed controllable with compatible 120V variable fan controllers:contentReference[oaicite:4]{index=4}.
Does the unit require wiring?
No. It comes prewired with a 120V plug for direct connection to a standard outlet:contentReference[oaicite:5]{index=5}.
What is the housing made of?
Durable 18-gauge galvanized steel with aerodynamic construction for low turbulence:contentReference[oaicite:6]{index=6}.
What maintenance is required?
The unit uses sealed bearings and only requires periodic visual inspection for dust buildup:contentReference[oaicite:7]{index=7}.
Does the warranty cover heavy-duty usage?
Standard warranty is 10 years; reduced to 6 years for HVAC systems running more than 20 hours daily:contentReference[oaicite:8]{index=8}.
