Product Description

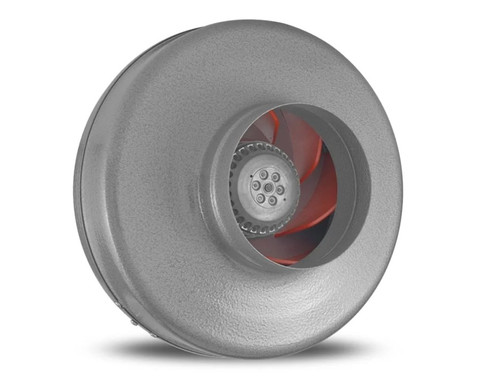

VTX600L Inline Centrifugal Fan by Atmosphere is a compact, high-performance 6" duct fan engineered for reliable airflow in ventilation systems that require strong static pressure. Delivering up to 257 CFM at 0.2" w.g., the VTX600L is ideal for bathrooms, utility rooms, hydroponics, and HVAC ducting requiring boost assistance. It features a quiet external rotor motor, durable steel housing, and tool-free mounting with brackets included.
Brand: Atmosphere
Model: VTX600L
Type: Inline Centrifugal Duct Fan
Duct Size: 6"
Airflow: 257 CFM @ 0.2" SP
Power: 120V, 68W, 0.58 A
Free shipping on orders over $250
Product Benefits
- Quiet, efficient airflow boost in 6” duct systems
- Ideal for longer duct runs or multi-branch configurations
- Plug-and-play setup with prewired 120V power cord
- Includes mounting brackets for ceiling or wall installation
Key Features
- 257 CFM at 0.2” SP: Balanced airflow for mid-pressure systems:contentReference[oaicite:0]{index=0}
- External Rotor Motor: Runs cooler and quieter with thermal overload protection
- 100% Speed Controllable: Compatible with most 120V fan speed controllers
- Maintenance-Free Bearings: Permanently lubricated and sealed for life
- 10-Year Warranty: Backed by Atmosphere for long-term reliability:contentReference[oaicite:1]{index=1}
Specifications
Technical Specs
| Airflow Output | 257 CFM @ 0.2” static pressure |
| Voltage | 120V / 60Hz |
| Power Consumption | 68W |
| Amperage | 0.58 A |
| Motor Speed | 2950 RPM |
Physical Specs
| Duct Diameter | 6" |
| Fan Body Diameter | 8.5" |
| Length | 9.5" |
| Shipping Weight | 8.4 lbs |
| Material Gauge | 18-gauge steel |
Application Examples
- Inline exhaust for medium-to-large bathrooms or laundry rooms
- HVAC systems needing pressure boost in 6" ducting
- Air circulation in hydroponic grow spaces
- Inline ducting for ventilation in garages or attics
Installation Tips
- Mount vertically or horizontally using supplied brackets (middle bracket not required for this model)
- Vent all ducted systems to the outdoors to comply with code
- Do not expose fan housing to water or install in wet locations
- Check impeller annually for dust buildup and clean with a damp cloth if needed:contentReference[oaicite:2]{index=2}
- Secure ducting with clamps or foil tape—avoid screws penetrating the airflow path
Frequently Asked Questions
What is the airflow performance of the VTX600L?
At 0.2" static pressure, the VTX600L delivers approximately 257 CFM of airflow:contentReference[oaicite:3]{index=3}.
Does it come prewired?
Yes, it includes a factory-installed 120V power cord for quick setup:contentReference[oaicite:4]{index=4}.
Can I use a speed controller?
Yes, this fan is 100% speed controllable using a compatible 120V fan controller:contentReference[oaicite:5]{index=5}.
What maintenance is required?
Inspect the impeller annually for dust buildup; wipe clean with a damp cloth. No lubrication is needed due to sealed bearings:contentReference[oaicite:6]{index=6}.
Is it ETL listed?
Yes, the VTX600L is ETL listed for electrical safety compliance:contentReference[oaicite:7]{index=7}.
What kind of warranty does it include?
It carries a 10-year manufacturer's warranty when installed under standard duty conditions:contentReference[oaicite:8]{index=8}.
