Product Description

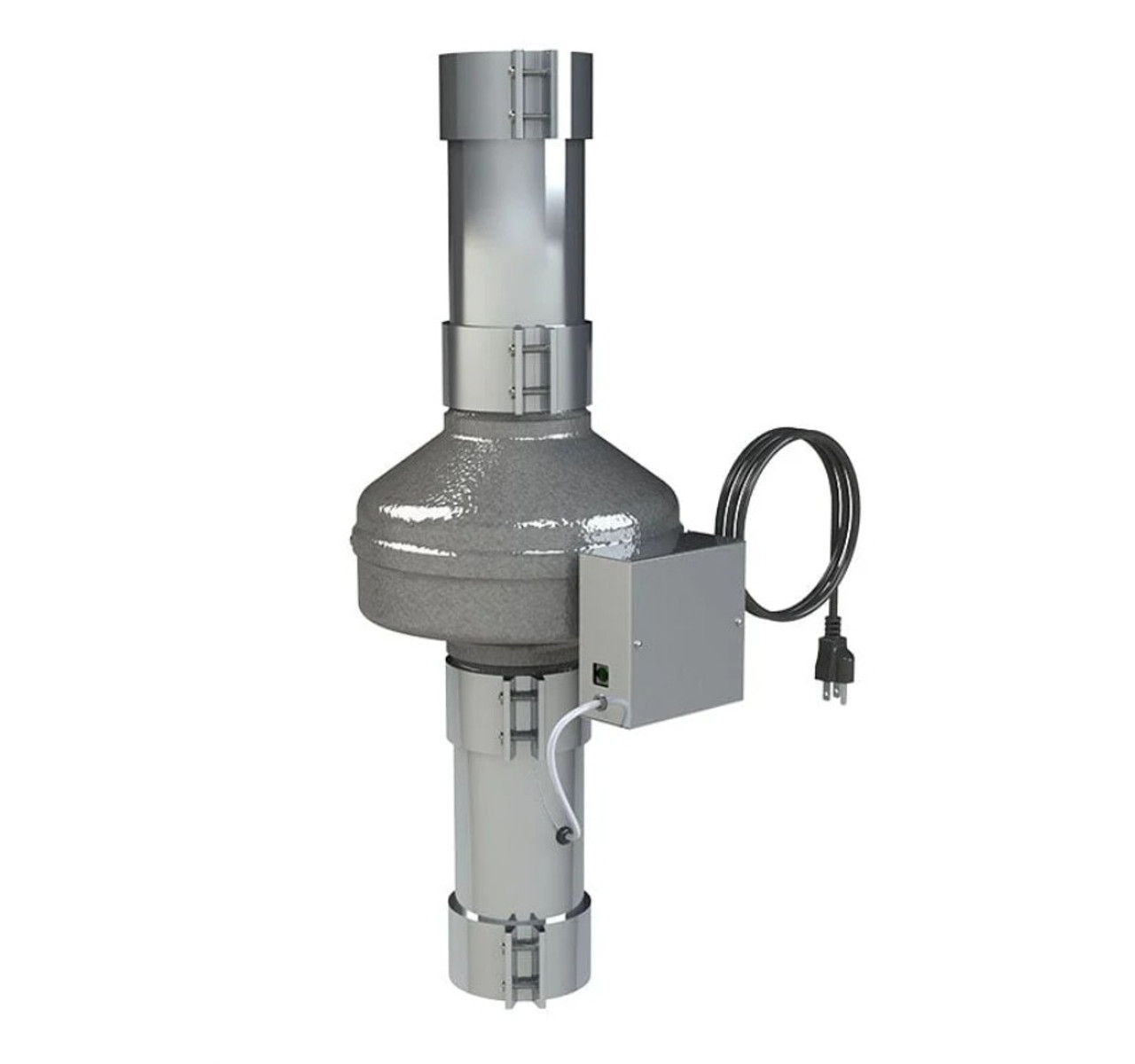

VTX-DEDPV Dryer Exhaust Duct Power Ventilator is a high-performance inline booster fan that activates automatically when the dryer operates, ensuring safe and efficient venting through extended duct runs. With integrated pressure monitoring, an RGB indicator panel, and a thermal safety fuse, this unit is ideal for residential laundry rooms with duct lengths up to 130 feet. The VTX-DEDPV ensures compliance with UL705, CSA C22.2, and DEDPV codes while maintaining 1,200 FPM velocity across 4” ducts.
Brand: Atmosphere
Model: VTX-DEDPV
Type: Inline Dryer Exhaust Duct Power Ventilator
Motor: 120V, 68W, 0.56 Amps
Air Velocity: 1,200 FPM
Static Pressure Rating: Up to 1.85" w.g.
Free shipping on orders over $250
Product Benefits
- Automatically energizes when the dryer runs—no user activation required
- Built-in pressure sensor with RGB LED panel alerts operator to vent issues
- Extends dryer duct capability up to 130 feet
- Certified to meet UL705 and CSA C22.2 Clause 12 requirements
Key Features
- Integrated Pressure Monitoring: Detects blockages and airflow faults
- LED Notification Panel: Remote-mountable RGB LED panel shows operational status
- Thermal Safety Fuse: Shuts fan off above 196°F to prevent overheating
- Complete Kit: Includes ducting, clamps, bracket, and 50 ft communication cable
- Self-Calibrating: Automatically calibrates airflow upon installation
Specifications
Technical Specs
| Voltage | 120V / 60Hz |
| Power Consumption | 68 Watts |
| Amps | 0.56 A |
| Max Air Velocity | 1,200 FPM |
| Static Pressure Rating | Up to 1.85" w.g. |

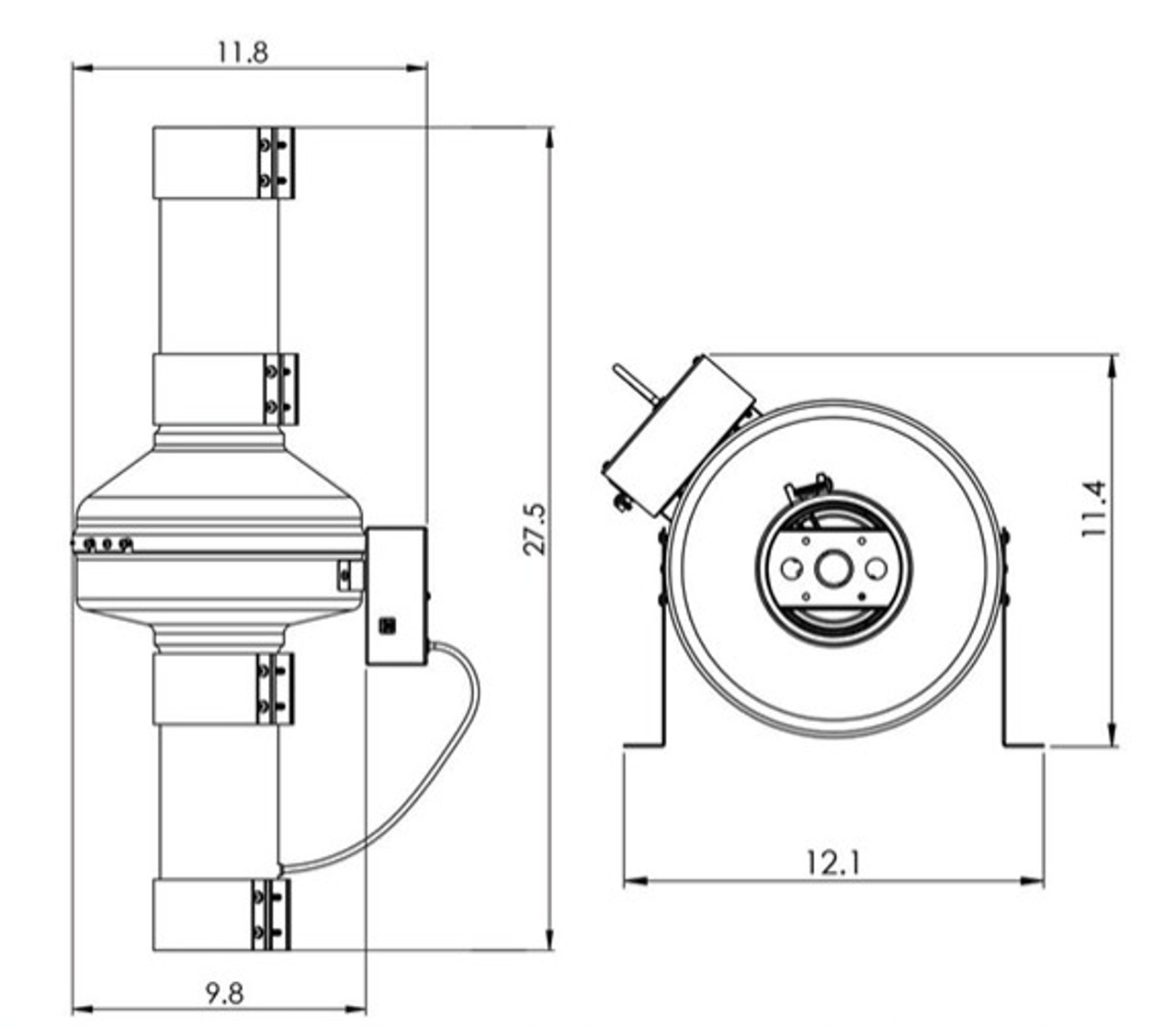

Physical Specs
| Unit Length (assembled) | 27.5” |
| Diameter | 4" duct compatibility |
| Fan Body Width | 12.1" |
| Mounting Bracket Included | Yes |
Application Examples
- Residential laundry rooms with long dryer duct runs
- Multi-unit housing and apartments with shared venting
- Renovations where dryer outlet is located far from the vent termination
- Retrofits for dryers underperforming due to low exhaust velocity
Installation Tips
- Install 4 to 45 feet away from dryer exhaust outlet
- Use only with compatible dryers not exceeding 167°F exhaust temp
- Install vertically where possible to reduce condensation buildup
- Ensure duct joints are sealed and insulated as needed
- Connect the 50 ft RJ12 cable from fan to indicator panel (included)
Frequently Asked Questions
What is the VTX-DEDPV used for?
It is a Dryer Exhaust Duct Power Ventilator designed to boost airflow in long duct runs exceeding 25 feet.
How far can it support duct runs?
It supports up to 130 feet of equivalent 4" galvanized steel duct:contentReference[oaicite:0]{index=0}.
Is the LED panel included?
Yes, the kit includes a wall-mountable RGB LED indicator panel and 50 ft cable for remote visibility:contentReference[oaicite:1]{index=1}.
Does it require manual activation?
No. It automatically energizes when dryer pressure is detected via its built-in sensor:contentReference[oaicite:2]{index=2}.
What does the flashing red LED mean?
It signals a temperature fault caused by overheating—likely above 196°F. The fan shuts off as a safety measure:contentReference[oaicite:3]{index=3}.
What certifications does it meet?
Certified to DEDPV UL705 CSA C22.2 Clause 12 for residential dryer ventilation applications:contentReference[oaicite:4]{index=4}.
What happens during a pressure fault?
The LED flashes orange and the fan continues to try clearing the duct. Manual reset and inspection are required:contentReference[oaicite:5]{index=5}.
Can it be installed horizontally?
Yes, though vertical installation is preferred. If horizontal, consider adding a condensation drain port:contentReference[oaicite:6]{index=6}.
