Product Description

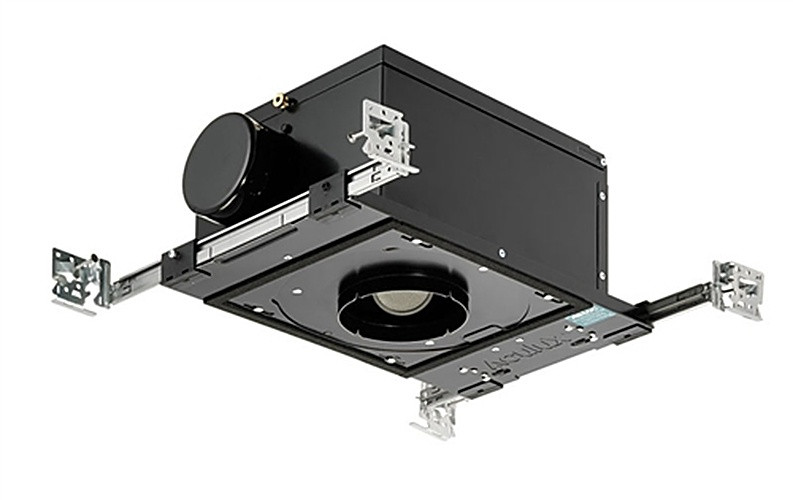

The TC43N 3-1/4 Inch Low Voltage New Construction Standard Housing is designed for precision lighting applications with MR16 halogen lamps. Featuring a 120V magnetic transformer, this housing offers exceptional performance and flexibility in non-insulated ceilings or areas where insulation is spaced at least 3 inches away.
Key Features:
- Precision-geared hot-aiming with 370° rotation and 45° tilt for accurate light placement.
- Supports MR16 halogen lamps up to 75W with optimized beam control.
- Sealed Air-Loc housing ensures maximum energy savings and reduced plenum sound transmission.
- Non-IC rated for use in non-insulated ceilings or areas with proper spacing from insulation.
- Includes a high-efficiency magnetic transformer with dimmer loss compensation.
Specifications:
- Model Number: TC43N
- Voltage: 120V
- Lamp Type: MR16 halogen (up to 75W)
- Ceiling Compatibility: 1/2” to 7/8” standard ceilings
- Transformer Type: Magnetic, dual tap, high-efficiency
Installation Tips:
- Ensure a minimum of 3 inches of clearance between the housing and any insulation.
- Use approved trim kits and adapters for specific ceiling thicknesses and finishes.
- Consult a licensed electrician for proper installation and safe wiring practices.
- For thicker ceilings, use optional ceiling adapters (CTA4N-125, CTA4N-163, or CTA4N-200).
Frequently Asked Questions:
Q: What lamp types are compatible with this housing?
A: The housing is compatible with MR16 halogen lamps up to 75W.
Q: Can this housing be used in insulated ceilings?
A: No, it is non-IC rated and requires insulation to be spaced at least 3 inches away.
Q: What ceiling thicknesses does this housing support?
A: Standard ceilings from 1/2” to 7/8” are supported, with optional adapters for thicker ceilings.
Q: Does this housing include trims?
A: No, trims must be purchased separately based on the desired finish and application.
Q: Is this housing dimmable?
A: Yes, it can be dimmed using dimmers designed for low voltage magnetic transformers.
