Product Description

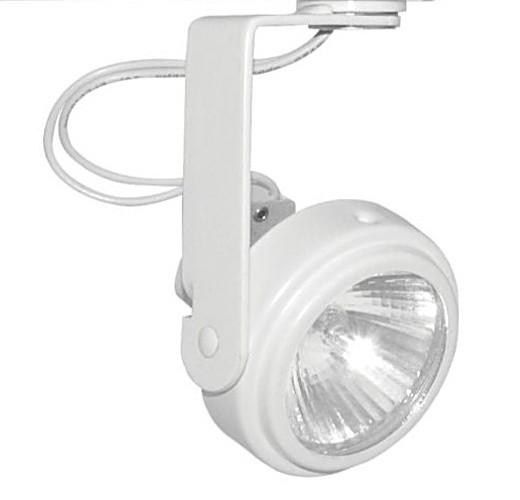

T696WH Open Back Gimbal Ring - Low Voltage 75W MR16, White Color from Juno’s Trac-Master® line is a compact, single-yoke MR16 gimbal track head that accepts 12V, 20–75W MR16 lamps and requires a remote transformer (Juno T537 or T538). Its clean open-back form provides precise aiming for accent and display lighting in retail, hospitality, and galleries.
Key Specifications
- Lamp: 12V MR16 (20–75W)
- Finish: White (WH)
- Design: Single-yoke open-back gimbal
- Transformer: Required (T537 or T538)
- Series: Trac-Master®
Shipping
Free shipping on orders over $250
Product Benefits
- Targeted accent lighting: Gimbal design provides precise aiming for displays, merchandise, and artwork.
- Compact footprint: Open-back, single-yoke form factor reduces visual clutter on the track.
- Flexible output: Works with a wide range of MR16 wattages (20–75W) to match your light level needs.
- Accessory-ready: Compatible with Juno lenses, filters, and louvers for beam shaping and glare control.
Key Features
- Single-yoke MR16 gimbal for smooth, accurate aiming.
- 12V low-voltage operation with T537/T538 transformer (ordered separately).
- Open-back housing helps minimize bulk while maintaining adjustability.
- White (WH) finish coordinates with modern interiors.
- Accessory support: Color filters, dichroic lenses, spread lenses, uniformity lens, UV filter, and hexcell louver.
Enhanced Specifications
| Technical Specs | Details |
|---|---|
| Catalog Number | T696WH |
| Lamp Type | MR16 (12V) |
| Wattage Range | 20–75W |
| Transformer | Remote transformer required: T537 or T538 (order separately) |
| Series | Juno Trac-Master® |
| Physical Specs | Details |
|---|---|
| Finish | White (WH) |
| Form Factor | Open-back, single-yoke gimbal ring |
| Approx. Dimensions (from diagram) | 1 1/2", 2 1/4", 2 1/8" reference marks shown on product drawing (Page 1). |
| Performance / Electrical | Details |
|---|---|
| Voltage | 12V (via remote transformer) |
| Lamp/Lumen Output | Dependent on selected MR16 lamp |
| Accessories | Color Filters T551-5, Dichroic Lenses T5501-18, UV Filter T5522, Uniformity Lens T5521, Diffuse Spread T5520, Linear Spread T559, Prismatic Spread T557, Hexcell Louver T5559BL. |
Application Examples
- Retail merchandise accent lighting on linear track runs.
- Hospitality lobbies and restaurants highlighting art and architectural details.
- Gallery and museum displays requiring tight, focused beams.
- Showrooms and trade-show booths where flexible aiming is essential.
Installation Tips
- Select the transformer (T537 or T538) sized for total lamp load; mount per Juno guidelines.
- Use MR16 lamps within the 20–75W range; confirm beam spread and color to suit the display.
- Attach accessories (lenses/filters/louver) to shape beam and minimize glare as needed.
- De-energize the circuit before installation and follow local electrical codes.
Frequently Asked Questions
Is the T696WH dimmable?
Dimming depends on the chosen MR16 lamp and transformer. Use compatible lamps and controls rated for low-voltage MR16 systems.
Do I need a transformer?
Yes. The T696WH is 12V and requires a remote transformer, Juno models T537 or T538.
What finish options are available?
This model is White (WH). A Black version (T696BL) is also listed in the series literature.
Which lamps are supported?
12V MR16 lamps from 20W up to 75W. Always stay within the wattage range and lamp manufacturer recommendations.
Can I add lenses or a louver?
Yes. Juno offers multiple accessories including spread lenses, color and dichroic filters, UV filter, uniformity lens, and a hexcell louver.
Where is it typically used?
Accent and display lighting in retail, hospitality, galleries, and showrooms where precise aiming is needed.
What are the basic dimensions?
Reference marks on the product diagram show ~1 1/2", 2 1/4", and 2 1/8" dimensions; consult the spec drawing for placement.
Is the transformer finish matched?
Yes, T537 and T538 are available in white, black, or silver to coordinate with your installation.
