Product Description
Leviton T5325-SW Tamper-Resistant Duplex Receptacle, Self-Grounding (White) is a 15A, 125V NEMA 5-15R outlet that pairs everyday durability with enhanced safety. The shuttered, tamper-resistant design helps block foreign objects, while Quickwire push-in and side-wiring options speed installation in homes, offices, and schools.

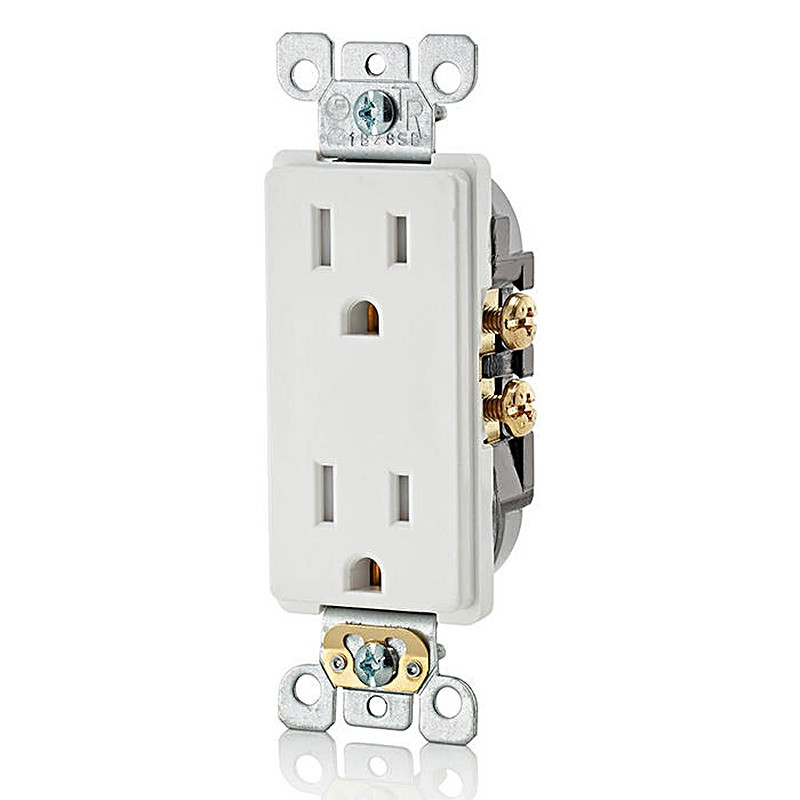

T5325-SW 15A Tamper-Resistant Duplex Receptacle – Self-Grounding, White
Rating: 15A, 125V AC, NEMA 5-15R, 2-pole, 3-wire, grounding
Features: Tamper-Resistant, Self-Grounding, Decora style
Wiring: Quickwire push-in & side wire
Torque: 14–18 in-lbs (terminal screws)
Color: White (also available: Ivory, Light Almond)
Listings: UL 498, CSA C22.2 No. 42; NOM; NEC TR compliant
UPC: 078477429396
Country of Origin: United States
Warranty: 2-Year Limited
Shipping: Free shipping on orders over $250
Benefits
- Enhanced safety with tamper-resistant shutters that help prevent insertion of foreign objects.
- Faster installs using Quickwire push-in for #14 AWG solid copper and side-wire terminals for #10–#14 AWG.
- Self-grounding yoke simplifies grounding in metal box applications.
- Durable construction with impact-resistant thermoplastic components for long service life.
Key Features
- 15A, 125V duplex, NEMA 5-15R, grounding.
- Tamper-Resistant design and Decora styling for a clean look.
- Quickwire push-in & side wire terminations; terminal screw torque 14–18 in-lbs.
- Self-grounding strap for code-compliant metal box installations.
- UL/CSA/NOM listed with a 2-Year Limited warranty.
Specifications
Technical Specs
| Catalog Number | T5325-SW |
| Electrical Rating | 15A, 125 VAC |
| NEMA | 5-15R, straight blade |
| Poles / Wires | 2-pole, 3-wire, grounding |
| Terminations | Quickwire push-in & side wire |
| Torque Range | 14–18 in-lbs (terminal screws) |
Physical Specs
| Face / Body Material | Impact-resistant thermoplastic |
| Grounding | Self-grounding strap |
| Color | White (also Ivory, Light Almond) |
| UPC | 078477429396 |
| Country of Origin | United States |
Compliance & Safety
| Standards | UL 498; CSA C22.2 No. 42; NOM |
| NEC | Tamper-Resistant dwelling unit compliant |
| Warranty | 2-Year Limited |
Application Examples
- Residential outlets in living rooms, bedrooms, and hallways requiring TR receptacles.
- Education & childcare spaces seeking tamper-resistant safety with fast installation.
- Light commercial upgrades using Decora-style devices for a coordinated look.
Installation Tips
- De-energize the circuit before wiring.
- Choose wiring method: push-in for #14 AWG solid copper; side-wire for #10–#14 AWG copper.
- Tighten to spec: torque terminal screws to 14–18 in-lbs.
- Use a matching Decora wallplate for a clean finish.
FAQ
Q: What is the electrical rating of T5325-SW?
A: It is a 15A, 125V duplex receptacle with a NEMA 5-15R straight-blade configuration.
Q: Does it include tamper-resistant protection?
A: Yes, it features Tamper-Resistant shutters to help prevent insertion of foreign objects.
Q: What does self-grounding mean?
A: The device’s self-grounding strap automatically bonds to a properly grounded metal box when installed with a grounding screw/clip.
Q: What wiring can I use?
A: Use #14 AWG solid copper with Quickwire push-in, or #10–#14 AWG copper on the side terminals.
Q: Is it code compliant for homes?
A: Yes—listed to UL 498, CSA C22.2 No. 42, and NEC tamper-resistant requirements for dwelling units.
Q: What is the warranty and origin?
A: It carries a 2-year limited warranty and is made in the United States.
