Product Description

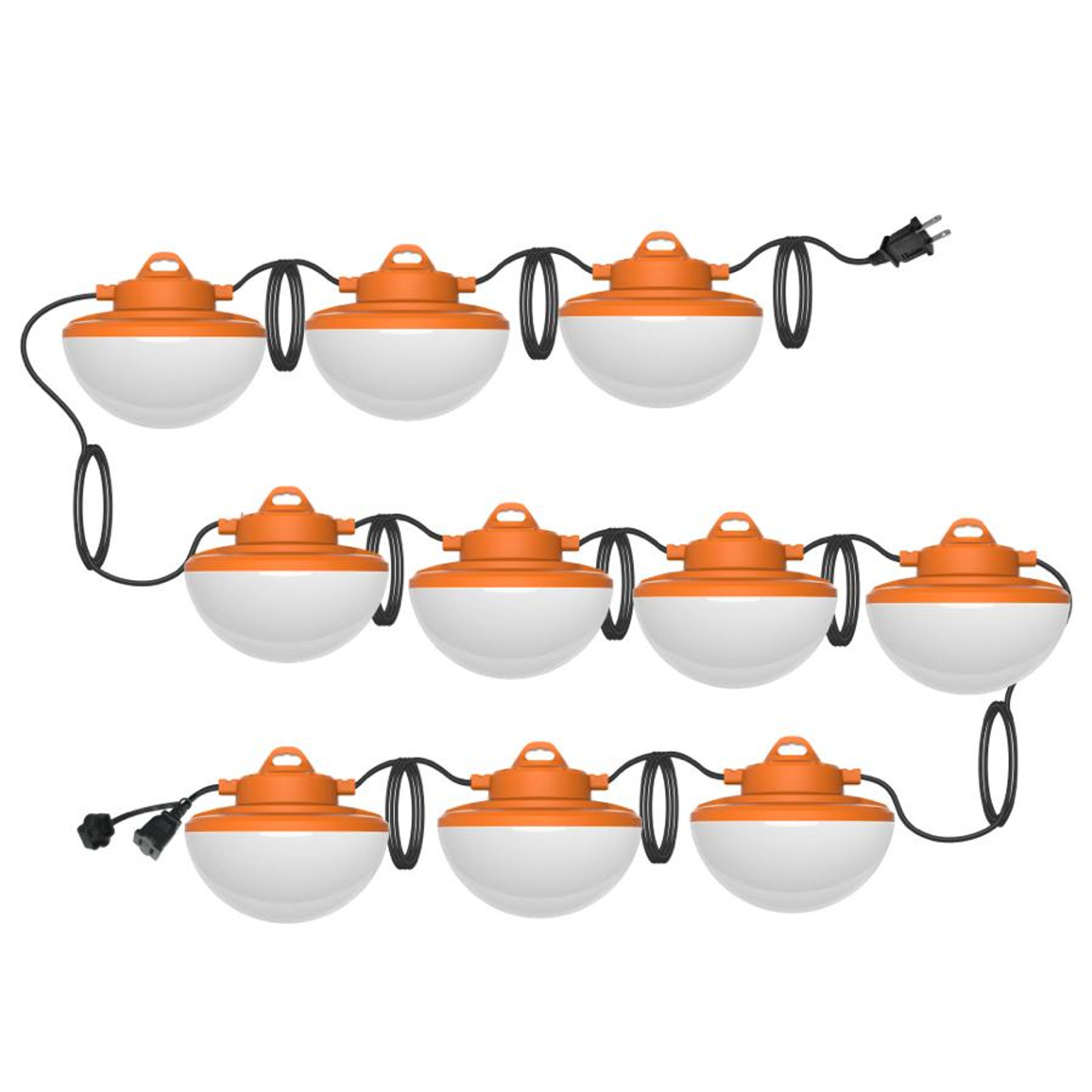

STRING17-100 LED String Light 100W 5000K from RAB Lighting is a rugged, high-output temporary LED string light designed to replace traditional work lights with an efficient, portable solution for job sites and demanding environments. With 10 integrated LED lamps delivering a combined 12,000 lm, it provides bright, consistent illumination across large work areas with dependable indoor/outdoor performance.
- Total Output: 12,000 lm (10 x 1200 lm)
- Wattage: 100W (300W incandescent equivalency)
- CCT: 5000K
- Input: 120V AC, 60 Hz
- Beam Angle: 120°
- CRI: >80 CRI
- Rating: IP65, suitable for dry/damp/wet locations
- Linkable: Up to 400W total (4 fixtures)
Product Benefits
- Bright, wide-area coverage for temporary lighting—ideal for illuminating work zones, pathways, and active jobsite areas.
- Built for tough conditions with ANTI-UV protection and an IP65 rating for sun exposure and wet-location use.
- Fast setup and easy positioning using an integrated hanging hook on each lamp for secure mounting.
- Expandable runs for larger projects—link up to 4 fixtures (400W total) for continuous lighting over long distances.
Key Features
- High output: 12,000 lm total (10 lamps, 1200 lm each)
- Efficient performance: 120 lm/W efficacy
- Daylight color: 5000K with >80 CRI
- 100 ft cord: Durable SPT-2W 18/2 AWG power cord
- Jobsite-ready: Polycarbonate housing with frosted lens and high-impact cord design
- Weather-ready connection: ANSI 2-prong plug/receptacle with weatherproof cover; no ground required
- Long life: L70 50,000-hour LED lifespan (IES LM-70 results)
- Protection: 1kV surge protection; FCC Part 15 compliant
Specifications
Technical
| Product Type | LED Temporary String Light |
| Input Voltage | 120V AC |
| Operating Frequency | 60 Hz |
| Input Wattage | 100W |
| Input Current @ 120V | 1,430mA |
| Driver | Constant Current |
| Power Factor | 0.5 |
| Dimmable | No |
| Surge Protection | 1kV |
Performance
| Total Lumens | 12,000 lm |
| Lumens Per Lamp | 1200 lm |
| Efficacy | 120 lm/W |
| Wattage Equivalency | 300W Incandescent |
| L70 Lifespan | 50,000 hours |
| Operating Temperature | -40°F to 104°F |
| Flicker | 30% |
Optical & Color
| Beam Angle | 120° |
| Color Temperature | 5000K |
| CRI | >80 CRI |
| Color Consistency | <7-step MacAdam Ellipse binning |

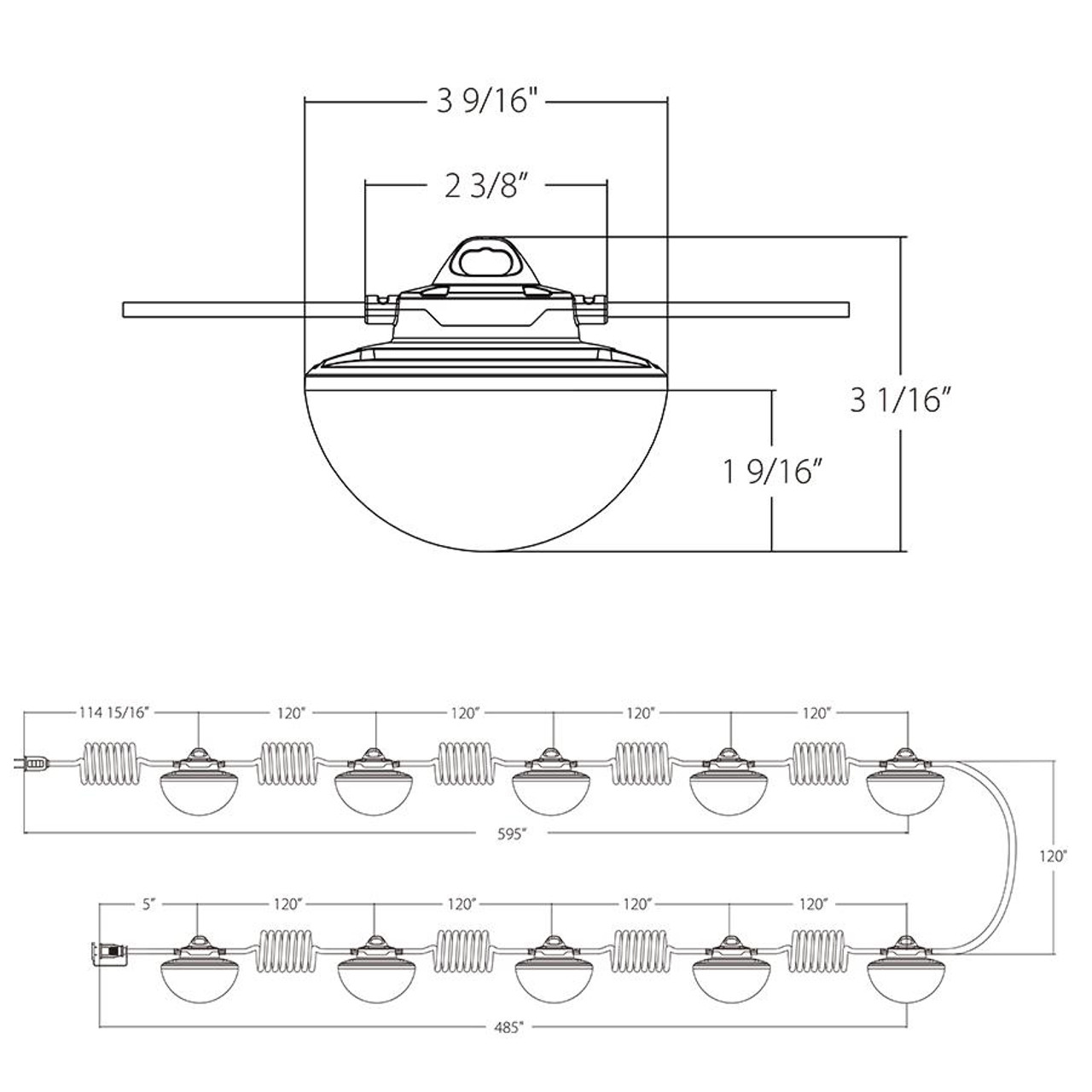

Physical & Installation
| Cord Length | 100 ft |
| Cord Type | SPT-2W 18/2 AWG |
| Quantity of Lamps | 10 units |
| Mounting | Integrated hanging hook |
| Plug / Receptacle | ANSI 2-prong plug and receptacle with weatherproof cover; no ground required |
| Lamp Shape | Oval lamp with frosted lens |
| Finish | Orange |
| Enclosure Material | Polycarbonate |
| Linkable | Up to 400W total (4 fixtures) |
Compliance & Ratings
| ETL Listed | Tested by Intertek and found in compliance with accepted national standards |
| IP Rating | IP65 |
| Environment | Indoor/Outdoor; suitable for dry, damp, or wet locations |
| FCC | Complies with Part 15 of the FCC Rules (Class B digital device) |
| RoHS | Mercury and UV free; RoHS-compliant components |
| CEC Status | Lawful for Sales in California |
| Warranty | 3-year limited warranty |
Applications
- Construction sites and renovation projects requiring temporary, portable task lighting
- Industrial work areas, warehouses, and maintenance zones needing long-run illumination
- Outdoor workspaces where wet-location performance and UV resistance are required
- Temporary pathway, perimeter, and staging-area lighting for crews and equipment
Installation Tips
- Disconnect power before installation, cleaning, or maintenance to prevent electric shock.
- Use the integrated hanging hook on each lamp to secure the string light firmly, especially when installing at height.
- For extended runs, connect only compatible strands and keep total connected load to 400W max (up to 4 fixtures).
- Install in an appropriate environment and keep the unit away from corrosive substances; harsh conditions can reduce lifespan.
- Ensure proper separation between live parts and metal parts to satisfy reinforced/double insulation requirements.
FAQ
How bright is the STRING17-100?
The fixture delivers 12,000 lm total output across 10 lamps, with 1200 lm per lamp.
What color temperature does it use?
This model outputs 5000K light for a crisp, daylight-like appearance that enhances visibility in work areas.
Can I connect multiple strings together?
Yes. Strands are linkable up to 400W total, which equals a maximum of 4 fixtures connected together.
Is it rated for wet locations?
Yes. The STRING17-100 is IP65 rated and suitable for use indoors or outdoors in dry, damp, or wet environments.
Does it require a grounded plug?
No. It uses an ANSI 2-prong plug and receptacle with a weatherproof cover, and no ground is required.
Is this string light dimmable?
No. The STRING17-100 is not dimmable.
What is the expected LED life?
It features an L70 50,000-hour LED lifespan based on IES LM-70 results.
What cord type and length does it include?
It includes a durable 100 ft SPT-2W 18/2 AWG power cord designed for temporary lighting applications.
