Product Description

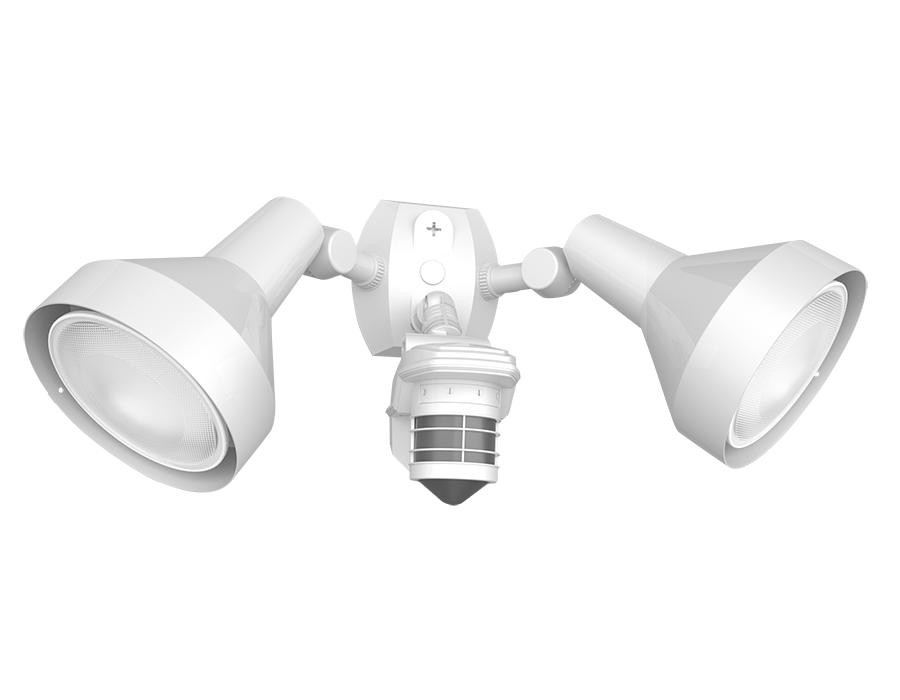

STL360HW/L Sensor + PAR38 38W 3000K/4000K/5000K E26 90CRI 3600LM by RAB Lighting delivers exceptional outdoor motion-activated lighting with precision detection and field-adjustable color temperature. Designed for total coverage with a sleek white finish, it comes equipped with dual CCT-selectable PAR38 LED lamps and advanced detection technology ideal for residential and commercial security lighting applications.
- Wattage: 38W
- Color Temperature: Field-selectable 3000K / 4000K / 5000K
- CRI: 90
- Lumens: 3600 lm
- Voltage: 120V AC, 60Hz
- Detection Pattern: 180° out + 360° down
- Finish: White
- Free shipping on orders over $250
Product Benefits
- Maximize perimeter security with 360° motion detection coverage
- Save energy using adjustable sensitivity and dusk-to-dawn photocell control
- Adapt to any environment with field-selectable CCT (3000K/4000K/5000K)
- Quick installation with EZ Plate universal mounting system
Key Features
- Color Accuracy: High 90 CRI for vibrant, true-to-life color
- Auto Test Logic: Easy setup with automatic reset after installation
- Manual Override: Dual-flip wall switch for 6-hour continuous operation
- Blinder Accessories: Customize detection zone with snap-on blinders
- Lens Indicators: Red LEDs glow for visual deterrent and status feedback
Technical Specifications
Technical Specs
| Driver Type | Constant Current |
| Input Power | 38W |
| Surge Protection | Up to 6000V |
Physical Specs
| Weight | 4.0 lbs |
| Finish | White |
| Material | Precision die-cast aluminum |
Performance Specs
| Lumen Output | 3600 lm |
| Color Temp | 3000K / 4000K / 5000K |
| CRI | 90 |
| L70 Lifespan | 15,000 hours |
| Efficacy | 95 lm/W |
Compliance & Safety
| UL Listed | Suitable for wet locations |
| Warranty | 10-Year Limited (fixture), 3-Year Limited (lamps) |
Application Examples
- Residential entryways, driveways, and garages
- Commercial walkways, loading docks, and alleyways
- Multi-family complexes and perimeter lighting
- Outdoor retail or warehouse surveillance zones
Installation Tips
- Mount between 6–10 feet high for optimal detection range
- Use the included EZ Plate and gasket for universal compatibility
- Keep sensor angled downward and away from heat sources
- Flip switch twice to activate manual override mode (6 hours on)
- Always seal all conduit entries and gasketed areas for waterproofing
Frequently Asked Questions
How do I change the color temperature?
Each PAR38 lamp includes a selector switch allowing choice between 3000K, 4000K, and 5000K before installation.
What is the range of motion detection?
The sensor provides 180° outward detection up to 60 feet and 360° downward detection coverage directly below the unit.
Can this light stay on continuously?
Yes. Activate Manual Override Mode by flipping the wall switch twice (off-on-off-on) within 2 seconds. The light stays on for 6 hours or until dawn, depending on ambient light.
Is it compatible with LED electronic ballasts?
Yes. The sensor supports switching up to 120W LED load at 120V AC.
How do I test the sensor during the day?
Set the time dial to 5 seconds, turn power off for 10 seconds, then back on. The sensor enters Test Mode for accurate walk testing regardless of ambient light.
Can this unit be used on circuits with other appliances?
No. Avoid circuits with motors or appliances (e.g., garage doors, HVAC) to prevent false activations.
How do I limit detection to specific zones?
Use the included lens masks or adjust the sensitivity to customize the detection area and avoid nuisance triggers.
What should I do if the lights won’t turn off?
Make sure the sensor is not in Manual Override or Evening Timer Mode. Reset by turning off power for 10 seconds.
Can I wire multiple fixtures to one sensor?
Yes. One sensor can control multiple lights, but ensure total load does not exceed rated switching capacity (120W LED).
Does it work during the day?
By default, the photocell disables operation in daylight. Set to 24-hour mode if continuous operation is required.
