Product Description

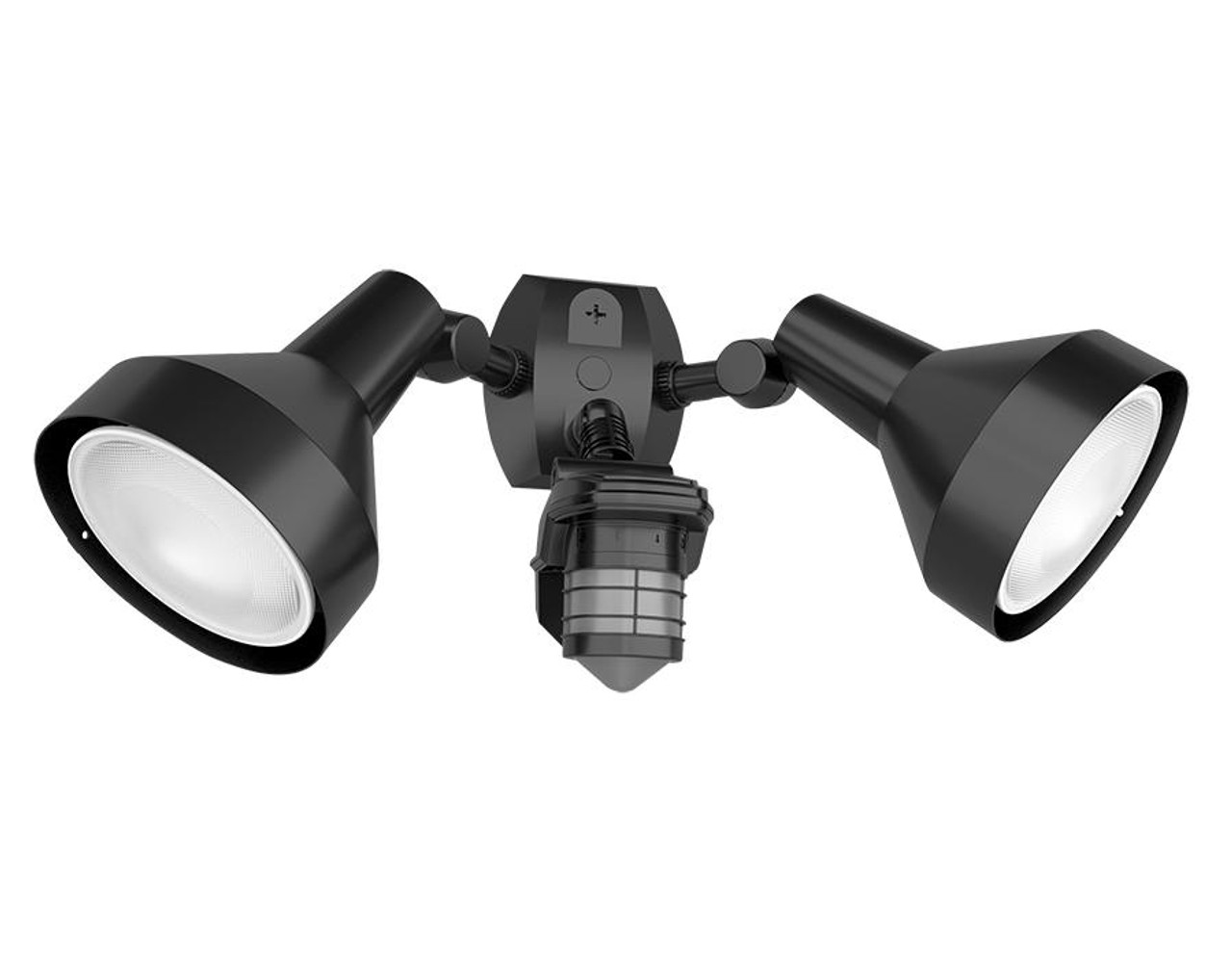

STL360H/L STL360H Sensor + PAR38 38W 3000K/4000K/5000K E26 90CRI 3600LM from RAB Lighting combines advanced motion-sensing security with high-performance LED floodlighting. This durable, all-weather fixture includes two field-selectable CCT PAR38 lamps and an integrated sensor with 180° outward and 360° downward detection, delivering 3600 lumens at an impressive 90 CRI.
Brand: RAB Lighting
Model: STL360H/L
Color Temperature: 3000K / 4000K / 5000K (Selectable)
Lumen Output: 3600 lm
Wattage: 38W
Voltage: 120V AC 60Hz
CRI: 90
Wet Location Rated
Free shipping on orders over $250
Benefits
- Provides seamless 360° motion detection for enhanced perimeter security
- Selectable CCT gives flexibility for outdoor aesthetics and functional light levels
- Pre-wired assembly allows for fast installation with universal mounting
- Ideal for both residential and commercial exterior lighting applications
Key Features
- Field-selectable 3000K / 4000K / 5000K PAR38 lamps included
- 180° out and 360° down detection with customizable coverage
- Manual Override and Evening Timer Mode with wall switch logic
- Weatherproof aluminum housing with EZ Plate universal mounting
- LED detection indicators for status visibility day and night
Specifications
Technical Specs
| Wattage | 38W |
| Voltage | 120V AC 60Hz |
| Color Temperature | 3000K / 4000K / 5000K |
| Lumen Output | 3600 lm |
| CRI | 90 |
| Rated Life | 15,000 hours |
| Switching Capacity | 120W Electronic Ballast (LED) @ 120V |
Physical Specs
| Finish | Bronze |
| Weight | 4.2 lbs |
| Mounting | CU4 EZ Plate fits standard junction boxes |
| Construction | Die-cast aluminum with no-tool joints |
Performance Specs
| Sensor Coverage | 180° outward, 60 ft forward range + 360° downward |
| Detection Range | Adjustable 100% to 30% |
| Time Adjustment | 5 seconds to 12 minutes |
| Operation Modes | Auto, Manual Override, Test, Evening Timer |
Compliance & Safety
| UL Listed | Yes, for wet locations |
| Surge Protection | Withstands up to 6000V |
| Warranty | 10-Year Limited (Fixture), 3-Year Lamp Warranty |
Application Examples
- Residential driveways and side yards
- Commercial building perimeters
- Parking lot and alleyway security lighting
- Outdoor entries and walkways
Installation Tips
- Mount sensor 6–10 feet high for optimal detection range
- Use lens masks to block undesired activation zones
- Perform walk test using Test Mode before finalizing adjustments
- Ensure mounting surface is stable and sensor is level
Frequently Asked Questions
Can this sensor operate 24/7?
Yes. You can turn the photocell dial fully clockwise to enable 24-hour operation.
What is the Manual Override feature?
Manual Override keeps the light on continuously until dawn using a double-flip switch logic, without rewiring.
How does the Evening Timer work?
It allows the lights to stay on for 1–8 hours after dusk using wall switch commands. Great for simulated occupancy.
Is the sensor sensitive to animals?
Yes, large animals can trigger the sensor. Sensitivity can be adjusted or masked using the provided lens covers.
Does the unit include lamps?
Yes, two field-selectable PAR38 LED lamps are included with each unit.
How long do the lights stay on after motion?
The delay is adjustable from 5 seconds to 12 minutes after the area is vacated.
What type of mounting does this support?
It uses the RAB CU4 EZ Plate compatible with round, octagonal, or rectangular boxes.
What should I do if the lights don’t turn off?
Check that it’s not in Manual Override or Evening Timer Mode. Reset by turning power off for 10 seconds.
Does this work with LED fixtures only?
It supports LED loads and is rated up to 120W with electronic ballasts.
Is this suitable for wet environments?
Yes, it is UL Listed for wet locations and designed for all-weather outdoor use.
