Product Description
SMSBULLET2X20W Bullet Kit 2X20/15/10W 3000/4000/5000K 120V w/ SMS500 CU4 Hood delivers a powerful, field-adjustable outdoor lighting solution combining dual LED bullet heads with an integrated SMS500 motion sensor on a CU4 mounting plate. Designed by RAB Lighting, this kit offers selectable wattage, adjustable color temperature, and reliable 120V operation for enhanced security, visibility, and energy efficiency.
Product Summary
| Brand | RAB Lighting |
| Model | SMSBULLET2X20W |
| Kit Components | Two LED BULLET heads + SMS500 sensor + CU4 mounting plate |
| Selectable Wattage | 20W / 15W / 10W per head (40W max system) |
| CCT Options | 3000K / 4000K / 5000K |
| Lumen Output | 2,319–4,189 lumens |
| Voltage | 120V only |
| CRI | 82–84 CRI |
| Sensor Range | 180° by 30 ft detection area |
| Rated Life | 100,000 hours |
| Listings | UL Listed, IP65, RoHS, Raintight Photoelectric |
Free shipping on orders over $250
Product Benefits
- All-in-one security lighting kit with dual LED heads and motion sensor for simplified installation and maximum performance.
- Selectable wattage and color temperature allow fine-tuned output depending on brightness, energy use, or setting.
- Wide 180° sensor detection enhances security coverage for walkways, driveways, and building perimeters.
- IP65 wet-location design ensures durability in demanding outdoor conditions, including cold-weather starts to -40°F.
Key Features
- Field-adjustable wattage: 20W, 15W, or 10W per head depending on light output needs.
- CCT selectable: Choose 3000K, 4000K (factory default), or 5000K.
- High-efficacy LEDs delivering up to 116 lm/W for energy savings.
- SMS500 motion sensor with 5 sec–15 min timer, adjustable sensitivity, and photocell operation.
- Heavy-duty CU4 mounting plate supports recessed, round, rectangular, or octagonal junction boxes.
- Durable construction including die-cast aluminum housing and glass lens.
- 100,000-hour rated lifespan for extended maintenance-free operation.
- UL wet location listed and fully raintight for outdoor installations.
Technical Specifications
| Power Adjustability | 40/30/20W total (20/15/10W per head) |
| CCT Selection | 3000K / 4000K / 5000K |
| Lumen Output | 2,319–4,189 lumens |
| Efficacy | 97.5–116.3 lm/W |
| Driver | Constant current, Class 1 |
| Input Voltage | 120V only |
| THD | 14.73% |
| Power Factor | 98.8% at 120V |
| Surge Protection | 1 kV line-to-neutral |
| Ambient Operating Temp | -40°F to 104°F |

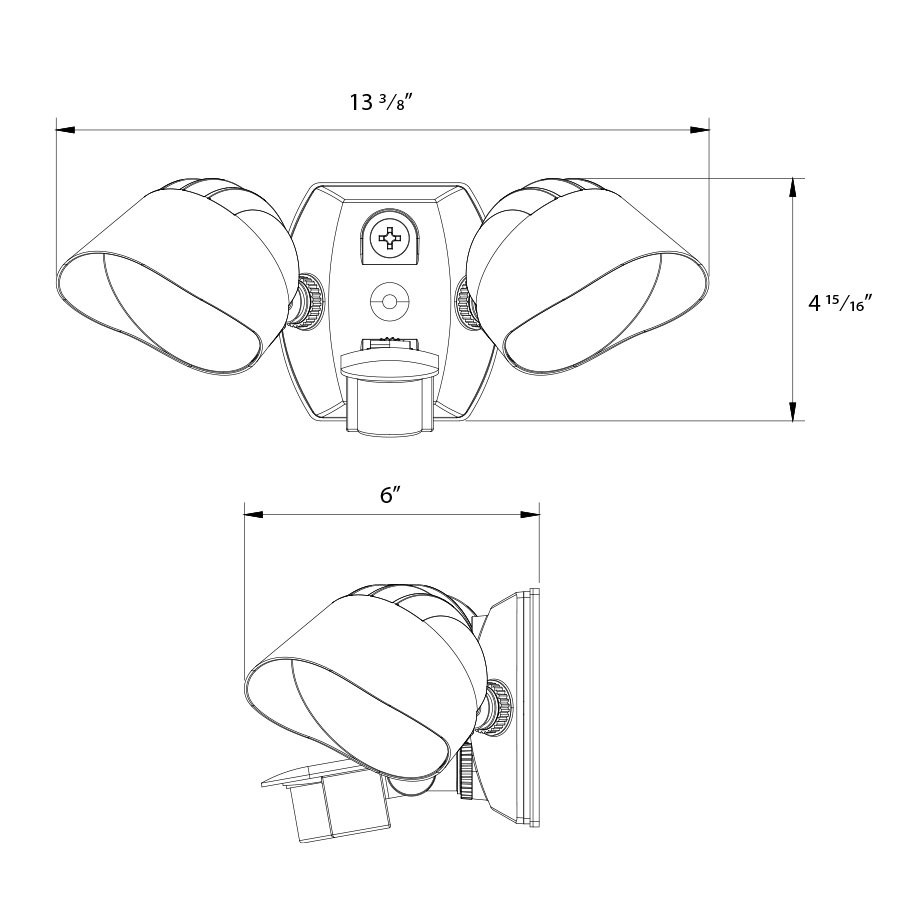

Physical Specifications
| Housing Material | Die-cast aluminum |
| Lens | Glass |
| Reflector | PET |
| Mounting | CU4 plate; compatible with round, rectangular, or octagonal J-box |
| Finish | High-durability, long-lasting color |
| Weight | 2.1 lbs |
Sensor & Controls Specifications
| Sensor Model | SMS500 Motion Sensor |
| Detection Zone | 180° coverage, up to 30 ft |
| Time Adjustment | 5 seconds to 15 minutes |
| Photocell Control | Night-only or 24-hour operation |
| Sensitivity Adjustment | Variable sensitivity dial |
| Manual Override | Double flip wall switch |
| Power Consumption | 1W |
| Lens | Vandal-resistant Lexan® |
Application Examples
- Security lighting for homes, garages, and driveways.
- Commercial building entryways and perimeter areas.
- Walkways, pathways, and parking areas requiring automatic illumination.
- Service yards, loading docks, and maintenance zones.
- Any area needing motion-activated, adjustable floodlighting.
Installation Tips
- Mount 6–10 ft high for optimal sensor detection and illumination coverage.
- Always disconnect power before installing or servicing the fixture.
- Use silicone sealant around junction box edges for proper weatherproofing.
- Aim sensor across expected movement paths rather than directly toward approaching motion.
- Avoid circuits with motor loads (HVAC, garage doors) which can cause false triggering.
- Label the fixture if additional control wiring or remote switching is used.
- Adjust time, sensitivity, and photocell using the onboard control dials after installation.
Frequently Asked Questions
What is included in the SMSBULLET2X20W kit?
The kit includes two adjustable LED BULLET floodlight heads, the SMS500 motion sensor, and a CU4 mounting plate for versatile junction box installation.
Can I adjust the brightness and color temperature?
Yes. Each head supports wattage selection of 20W, 15W, or 10W, and the CCT can be set to 3000K, 4000K, or 5000K.
What voltage is this product rated for?
This lighting kit operates on 120V only and should not be installed on higher-voltage circuits.
How does the motion sensor perform?
The SMS500 sensor provides 180-degree coverage up to 30 ft, with adjustable timing and sensitivity. It also includes a night-only or 24-hour photocell mode.
Is the fixture suitable for outdoor environments?
Yes. It is UL Listed for wet locations, IP65 rated, and designed for severe weather conditions including cold starts down to -40°F.
Does the kit include a manual override?
Yes. A double flip of the connected wall switch places the system into override mode, keeping lights on continuously until dawn resets the sensor.
What is the expected lifespan of the LEDs?
The LEDs are rated for 100,000 hours based on LM-80 testing and TM-21 projections, ensuring years of maintenance-free operation.
Where can this product be installed?
Common locations include residential exteriors, commercial buildings, loading areas, walkways, and any outdoor space needing motion-activated lighting.
Is the sensor affected by pets or wildlife?
The sensor may detect large animals. Masking the lower lens area can reduce unwanted activations.
Does this product support dimming?
The fixture can operate with most forward-phase incandescent dimmers, but dimming performance may vary and is not the primary intended use.
