Product Description
SMSBULLET2X20A is RAB Lighting’s field-adjustable twin bullet flood with integrated mini motion sensor (SMS500) and CU4 universal mounting plate—ideal for perimeter, entryway, and general security lighting. Select your output (per head) and color temperature on site for fast, dialed-in illumination at 120V.
- Brand: RAB Lighting

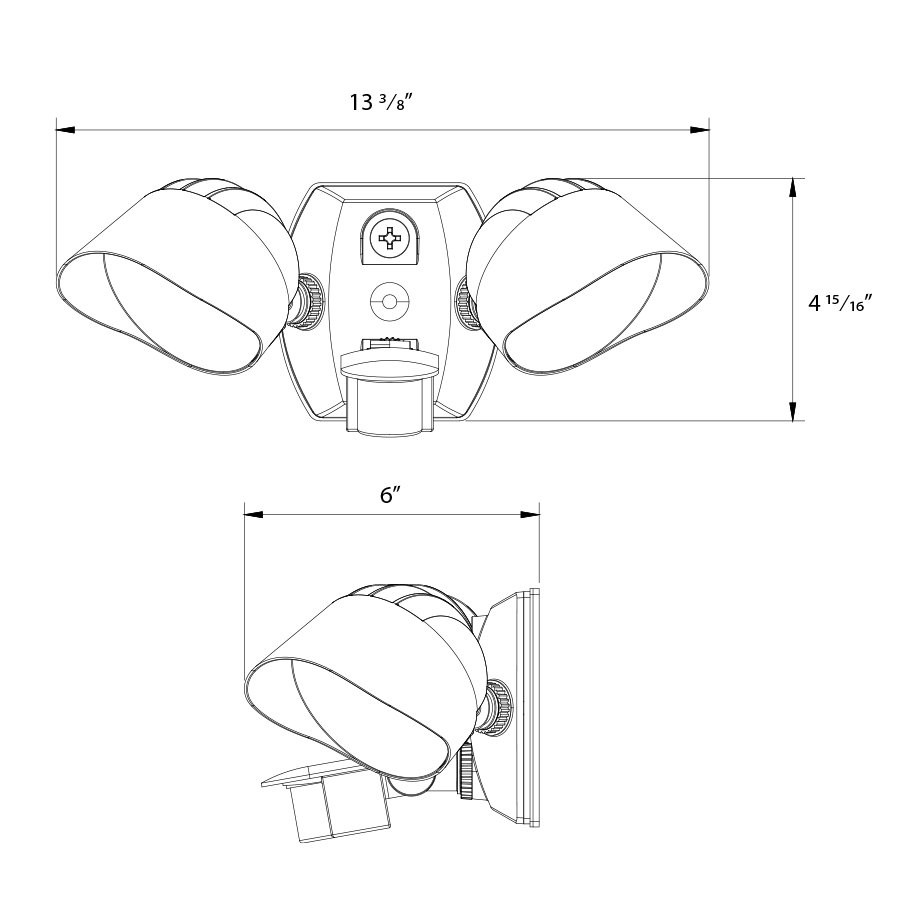

- Configuration: Dual bullet heads with SMS500 sensor on CU4 plate
- Field-Adjustable Wattage (total): 40W / 30W / 20W
- Per-Head Reference: 20W / 15W / 10W
- CCT Selectable: 3000K / 4000K / 5000K
- Lumens: 2319–4189
- Efficacy: up to 116.3 lm/W
- CRI: 82–84
- Voltage: 120V
- Beam: NEMA 6H x 6V
- Optics: Glass lens, PET reflector
- Listings: UL wet location, IP65
- L70 Lifetime: 100,000 hours
- Warranty: 5-year limited
Free shipping on orders over $250
Quick facts: factory defaults 40W/4000K, 180° detection to 30ft, manual override via wall switch.
Product Benefits
- Dial-in lighting on site with selectable wattage and CCT—meet light level and color preferences without changing SKUs.
- Built-in motion and dusk control (SMS500) automates on/off, reduces energy use, and adds security presence.
- All-weather performance with die-cast aluminum housing, IP65 ingress protection, and UL wet location rating.
- Fast installation using the CU4 universal mounting plate and hands-free hook—aim, set, and seal in minutes.
Key Features
- Field adjustable output: total system 40/30/20W (factory default 40W).
- Selectable CCT: 3000K, 4000K, 5000K (factory default 4000K).
- High performance package: 2319–4189 lumens; up to 116.3 lm/W; 82–84 CRI; L70 100,000 hours.
- Integrated SMS500 sensor: 180° by 30ft detection, time delay 5 seconds to 15 minutes, night-only or 24-hour operation, manual override (double-flip switch).
- Construction: die-cast aluminum housing, glass lens, durable finish; PET reflector.
- Electrical: 120V constant-current driver, PF ~0.99, THD ~15%, surge protection up to 1kV (line-neutral & line/neutral-PE).
- Environmental: cold-start to −40°C; max ambient 40°C.
- Compliance: UL wet location, IP65, LM-79/LM-80 tested, RoHS components; TAA compliant.
Specifications
Technical Specs
| Wattage (total) | 40 / 30 / 20 (factory default 40) |
| CCT Selection | 3000K / 4000K / 5000K (factory default 4000K) |
| Voltage | 120V, 50/60Hz |
| Driver | Constant current, Class 1; PF ~98.8% @ 120V; THD ~14.7% |
| Surge Protection | 1kV L/N, 1kV L/N-PE |
Performance Specs
| Lumen Output | 2319–4189 |
| Efficacy | 97.5–116.3 lm/W |
| CRI | 82–84 |
| L70 Lifetime | 100,000 hours (TM-21) |
| Beam | NEMA 6H x 6V |
Physical Specs
| Housing | Die-cast aluminum; durable finish |
| Lens / Reflector | Glass lens; PET reflector |
| Operating Temp | −40°C to 40°C ambient |
| Weight | Approx. 2.1 lb |
Controls (SMS500 Sensor)
| Detection | 180° by 30ft; LED “on-guard” indicator |
| Time Delay | 5 seconds to 15 minutes |
| Photocell | Night-only to 24-hour adjustable |
| Manual Override | Double-flip wall switch; resets at dawn |
| Test Mode | 3-minute auto test; 5-second quick test available |
Compliance & Safety
| Ratings | UL Listed for wet locations; IP65 |
| Testing | LM-79/LM-80 performance verified |
| Materials | RoHS-compliant; mercury & UV-free |
| Trade | TAA compliant |
Application Examples
- Residential and light commercial security lighting around doors, patios, and pathways.
- Perimeter and façade lighting for small businesses, warehouses, and utility areas.
- Garages, alleys, and loading areas needing motion-based illumination and night-only operation.
- Retrofit upgrades from halogen floods to efficient LED with adjustable output and CCT.
Installation Tips
- Mount height: target 6–10 ft for best detection; keep the sensor below and away from hot luminaires.
- Seal the box: apply weatherproof silicone around the junction box/CU4 plate and any unused entries.
- Wiring: black to line, white to neutral/common, green/ground to ground; red pigtail only for remote/additional fixtures.
- Set switches before aiming: choose wattage (total) 40/30/20 and CCT 3000K/4000K/5000K; replace the selector covers.
- Aim heads to cover paths of travel; the sensor detects motion across its pattern more effectively than straight toward it.
- Configure controls: set time delay (5 seconds–15 minutes) and photocell (night-only or 24-hour). Use quick-test for setup.
- Manual override: double-flip the wall switch to hold lights on; unit auto-resets at dawn.
- Cold weather: rated to start at −40°F; ensure wiring and seals are secure.
FAQ
Does this unit include the motion sensor and mounting plate?
Yes. The kit pairs two BULLET heads with the SMS500 mini sensor pre-wired on the CU4 universal plate for junction boxes.
What are the default settings out of the box?
Factory defaults are total output at 40W and color temperature at 4000K. You can change both without tools beyond removing the small selector covers.
How far does the sensor detect motion?
Up to approximately 30 ft across a 180° field. For the most reliable triggering, aim so movement crosses the sensor’s view rather than directly toward it.
Can I run this on other voltages?
No. This model operates on 120V only.
Will the lights run during the day?
By default the photocell provides night-only operation. You can set the photocell for 24-hour operation if needed.
How long will the LEDs last?
The LED light engine is rated for an L70 life of up to 100,000 hours under typical conditions.
Is it rated for wet locations?
Yes. The fixture is UL Listed for wet locations and carries an IP65 rating.
What is the warranty?
RAB backs the product with a 5-year limited warranty covering light output, driver performance, and finish.
