Product Description

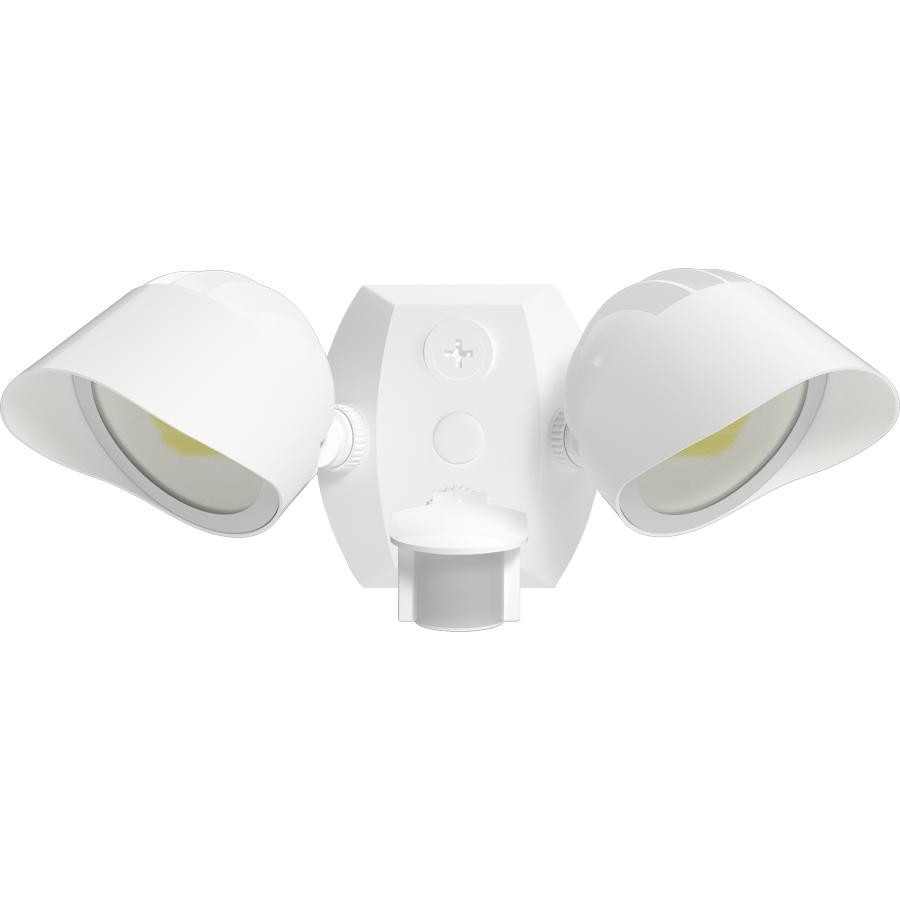

SMSBULLET2X12W Bullet Kit by RAB Lighting is a versatile, field-adjustable dual-head LED bullet fixture designed for reliable outdoor security and accent lighting. Operating at 120V, this kit includes 2 adjustable bullet heads with selectable 12W / 9W / 6W output per head and selectable 3000K / 4000K / 5000K CCT, factory-assembled on a CU4 mounting plate with an integrated SMS500 motion sensor hood for dependable wet-location performance.
Product Summary
- Configuration: Dual LED bullet heads with sensor
- Wattage: 24W / 18W / 12W total (field adjustable)
- CCT: 3000K / 4000K / 5000K selectable
- Voltage: 120V, 50/60 Hz
- Lumen Output: 1,279–2,645 lm
- Mounting: CU4 plate for round, rectangular, or octagonal J-box
- Rating: IP65, suitable for wet locations
Free shipping on orders over $250
Product Benefits
- Field-adjustable output and color: Select wattage and CCT on-site to match changing lighting requirements.
- Integrated motion sensing: SMS500 sensor provides automatic illumination for security and energy savings.
- Durable outdoor construction: Die-cast aluminum housing with IP65 protection for long-term exterior use.
- Flexible aiming: Dual adjustable bullet heads allow precise coverage of wide or focused areas.
Key Features
- Dual bullet LED heads factory-assembled on CU4 plate
- Field adjustable wattage: 24W / 18W / 12W total
- Selectable CCT: 3000K / 4000K / 5000K
- Integrated SMS500 motion sensor with adjustable time, sensitivity, and photocell
- 120V operation with on/off switching
- IP65 rated for dust and water ingress
- 100,000-hour LED lifespan
Specifications
Technical
| Catalog Number | SMSBULLET2X12W |
| Input Voltage | 120V |
| Total Wattage | 24W / 18W / 12W (selectable) |
| Color Temperature | 3000K / 4000K / 5000K selectable |
Performance
| Lumen Output | 1,279–2,645 lm |
| CRI | 82–85 |
| LED Lifespan | 100,000 hours (L70) |
Physical
| Housing | Die-cast aluminum |
| Lens | Glass |
| Finish | White |
Compliance & Safety
| Listings | UL Listed, suitable for wet locations |
| IP Rating | IP65 |
Applications
- Building security lighting: Motion-activated coverage for entrances, walkways, and perimeters.
- Commercial exteriors: Reliable illumination for storefronts and service areas.
- Residential outdoor lighting: Adjustable flood and accent lighting for homes.
- Retrofit projects: Direct J-box mounting for fast upgrades.
Installation Tips
- Verify power: Connect only to a 120V supply before installation.
- Seal all entries: Apply weatherproof silicone around the junction box and mounting plate.
- Adjust on-site: Set wattage and CCT using the selector switches before final aiming.
- Optimize sensing: Aim sensor so movement crosses the detection pattern for best performance.
FAQ
Is the wattage adjustable?
Yes. The fixture allows field selection of 24W, 18W, or 12W total output.
Can I change the color temperature?
Yes. CCT is selectable between 3000K, 4000K, and 5000K.
Is this fixture rated for outdoor use?
Yes. It is UL Listed for wet locations and has an IP65 rating.
Does it include a motion sensor?
Yes. The kit includes an integrated SMS500 motion sensor with adjustable time delay, sensitivity, and photocell.
What type of mounting is supported?
The CU4 plate supports mounting to round, rectangular, or octagonal junction boxes.
What is the expected LED lifespan?
The LEDs are rated for up to 100,000 hours (L70).
