SLT Atmosphere Inline FansSlim Lint Trap for stackable dryer installation

Product Description

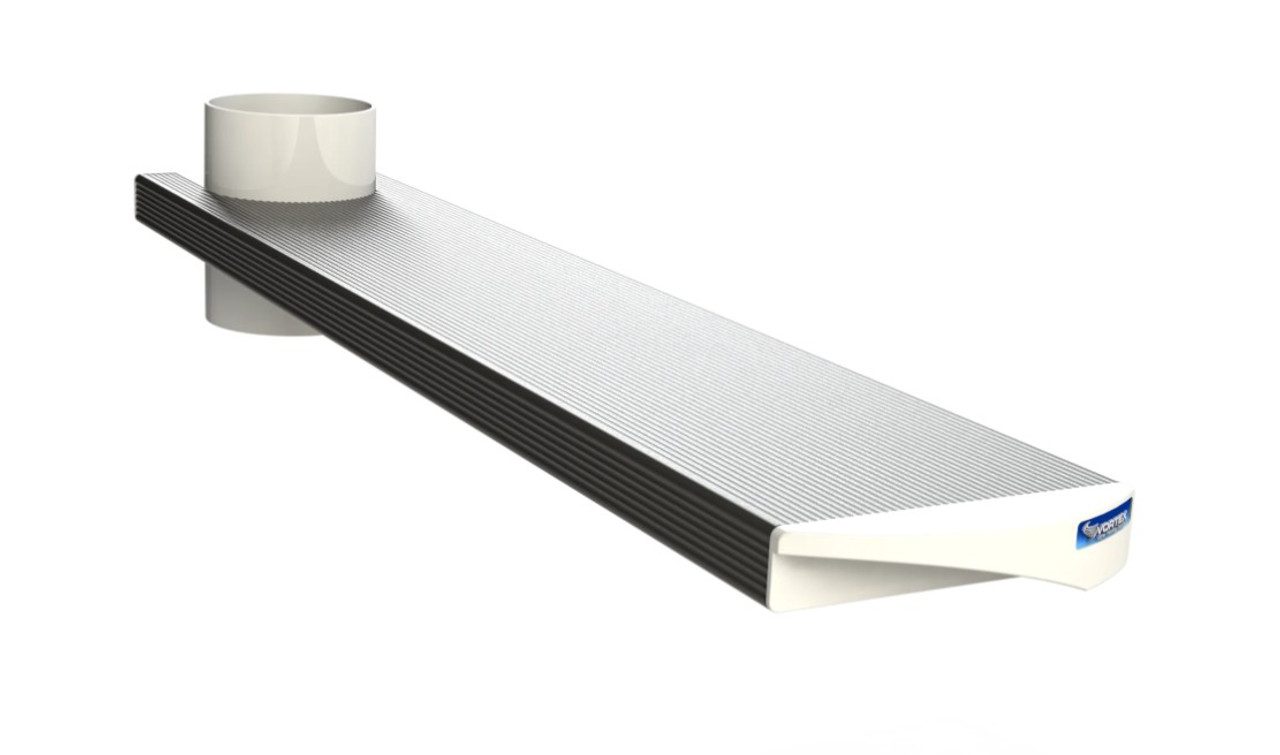

SLT Slim Lint Trap by Atmosphere is a low-profile lint filtration solution designed specifically for stackable dryer installations or applications with limited vertical clearance. Installed directly on top of the dryer, the SLT features a pull-out filter tray, secure inlet/outlet collars, and tool-free serviceability. It’s a compact, code-conscious lint capture system engineered for convenience, safety, and ease of maintenance in tight spaces.

Product Benefits

• Fits directly on top of dryer for easy access and minimal space impact
• Helps prevent duct lint buildup and improves airflow efficiency
• Ideal for apartments, condos, and small laundry closets
• Quick, tool-free filter tray removal and cleaning

Key Features

• Ultra-Slim Profile: Only 1.18" tall—perfect for compact stackable setups

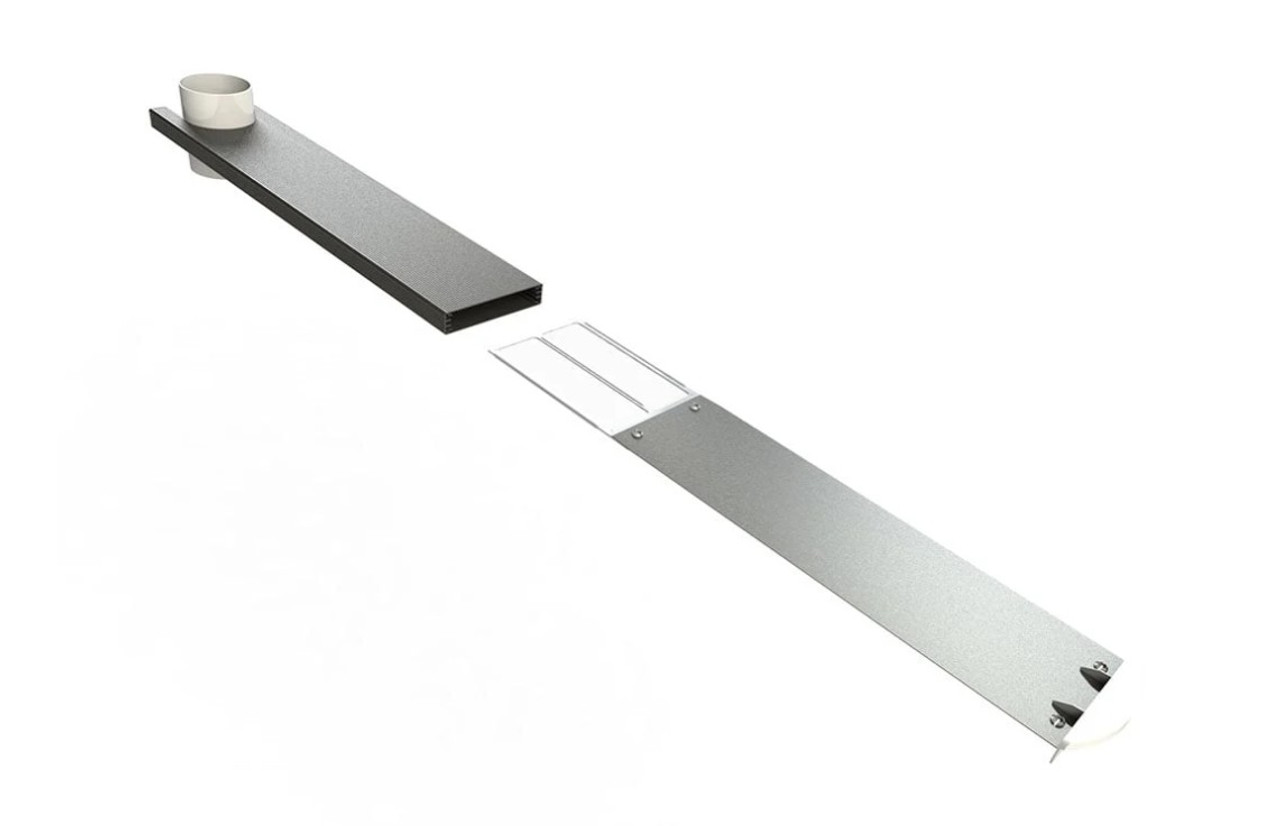

• Pull-Out Filter Tray: Easily slides out for lint removal and inspection:contentReference[oaicite:0]{index=0}
• Solid Metal Build: Rugged housing with integrated inlet/outlet collars
• Foam Mounting Tape: Installs without drilling (tape not included)
• Safety Reminder: Lint tray should be cleaned before each dryer cycle

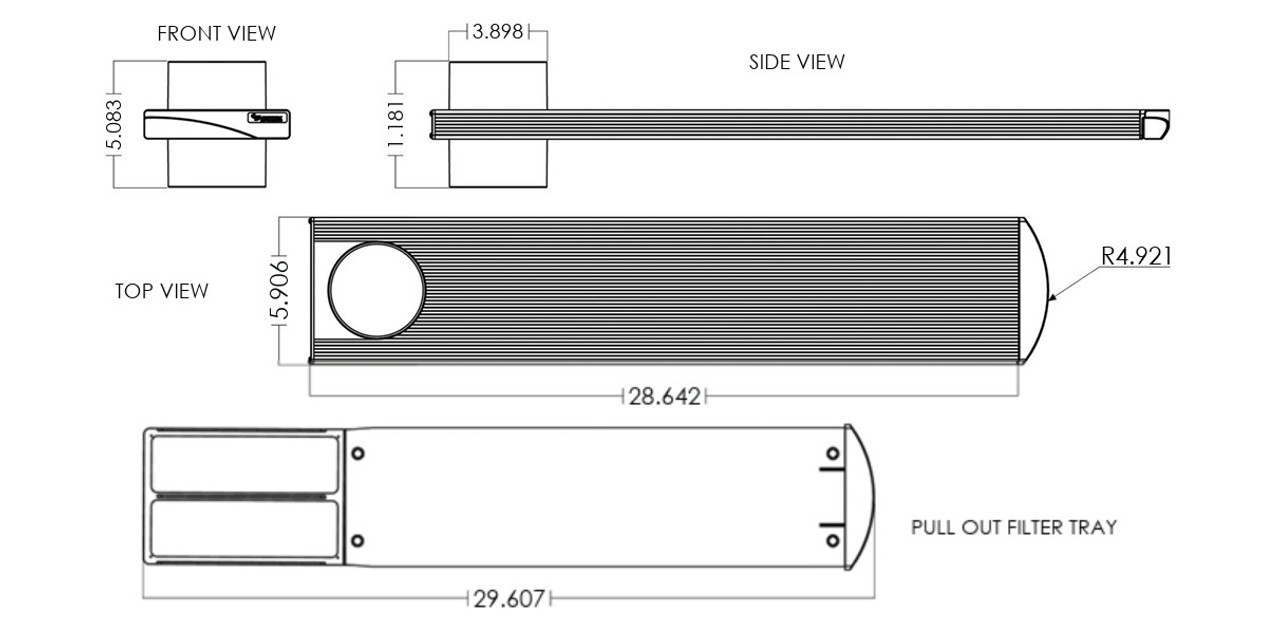

Specifications

Dimensions

Overall Length	29.6"
Body Width	5.9"
Body Height	1.18"
Inlet/Outlet Collar Diameter	4"

Materials

Housing	Durable coated metal
Filter Type	Reusable pull-out screen (manual clean)

Application Examples

• Stacked washer/dryer setups with vertical clearance limits
• Closets, apartments, and small utility rooms
• Supplemental lint protection for long dryer vent runs
• Installations requiring visible, top-access filter maintenance

Installation Tips

• Clean dryer top thoroughly before installing the SLT unit
• Align lint trap collar with exhaust, mark position, and attach using foam tape (not supplied)
• Push down firmly to seat unit and connect inlet and outlet ducts
• Only use solid metal ducting and follow local codes
• Remove and clean lint screen after every drying cycle

Frequently Asked Questions

What is the SLT designed for?
It’s a slim lint trap designed to sit directly on top of stackable dryers or dryers in confined spaces:contentReference[oaicite:1]{index=1}.

How is the filter cleaned?
Simply pull out the front-facing filter tray, remove the lint, rinse if necessary, and reinstall:contentReference[oaicite:2]{index=2}.

Does it come with mounting tape?
No, double-sided foam tape must be purchased separately for installation:contentReference[oaicite:3]{index=3}.

Can this unit be installed behind or beside the dryer?
No, it is specifically designed for top mounting only, where it can be easily accessed.

What kind of duct should I use?
Use solid metal ducting with foil tape; do not use flexible plastic hoses:contentReference[oaicite:4]{index=4}.

Is the SLT fire-rated?
While it’s made from durable coated metal, always follow local fire and dryer venting codes for full compliance.

Does the unit reduce dryer efficiency?
No—when cleaned regularly, it improves airflow and helps maintain dryer performance over long vent runs.
