Product Description
RAB SLIM12NW is a compact, full-cutoff LED wall pack in a white finish delivering approximately 2,039 lumens at 4000K while drawing just 12W (14.9W input). The low-profile housing installs quickly as a downlight or uplight and is rated IP66 for reliable outdoor performance.
- Lumen Output: 2,039 lm
- Wattage: 12W LED (14.9W input)
- Color Temperature: 4000K (Neutral)
- CRI: 75
- Voltage: 120–277V
- Dimming: 0–10V to 10%
- IP Rating: IP66, wet location
- Listings: UL, DLC Premium (Code: PGJBD3AQ)
- Finish: White
- Free shipping on orders over $250
Product Benefits
- Replaces 70W metal halide with lower energy use and maintenance.
- Low-profile, full-cutoff design reduces glare and light trespass.
- Fast, contractor-friendly installation as downlight or uplight.
- Durable IP66 construction for harsh weather and washdown.
Key Features
- Efficacy: ~136.8 lm/W for DLC Premium rebates
- Housing: Precision die-cast aluminum; tempered glass lens
- Driver: Constant-current, 120–277V, 50/60Hz
- Controls-ready: 0–10V dimming leads provided
- Cold Start: -40°F (-40°C) minimum starting temperature
- Warranty: 5-Year, No-Compromise Warranty
Enhanced Specifications
Electrical Specs
| Input Voltage | 120–277V, 50/60Hz |
| Input Watts | 14.9W (12W LED) |
| Power Factor | 99.4% @120V; 94% @277V |
| THD | 5.19% @120V; 8.55% @277V |
| Dimming | 0–10V to 10% (purple V+, pink/gray V-) |
Performance Specs
| Lumen Output | 2,039 lm |
| Efficacy | ~136.8 lm/W |
| CCT | 4000K (Neutral) |
| CRI | 75 |
| Lifespan | 100,000 hours (L70) |
| BUG Rating | B1 U0 G0 |
| MH Equivalency | Replaces 70W Metal Halide |
Physical Specs
| Housing | Die-cast aluminum |
| Lens | Tempered glass |
| Gaskets | High-temperature silicone |

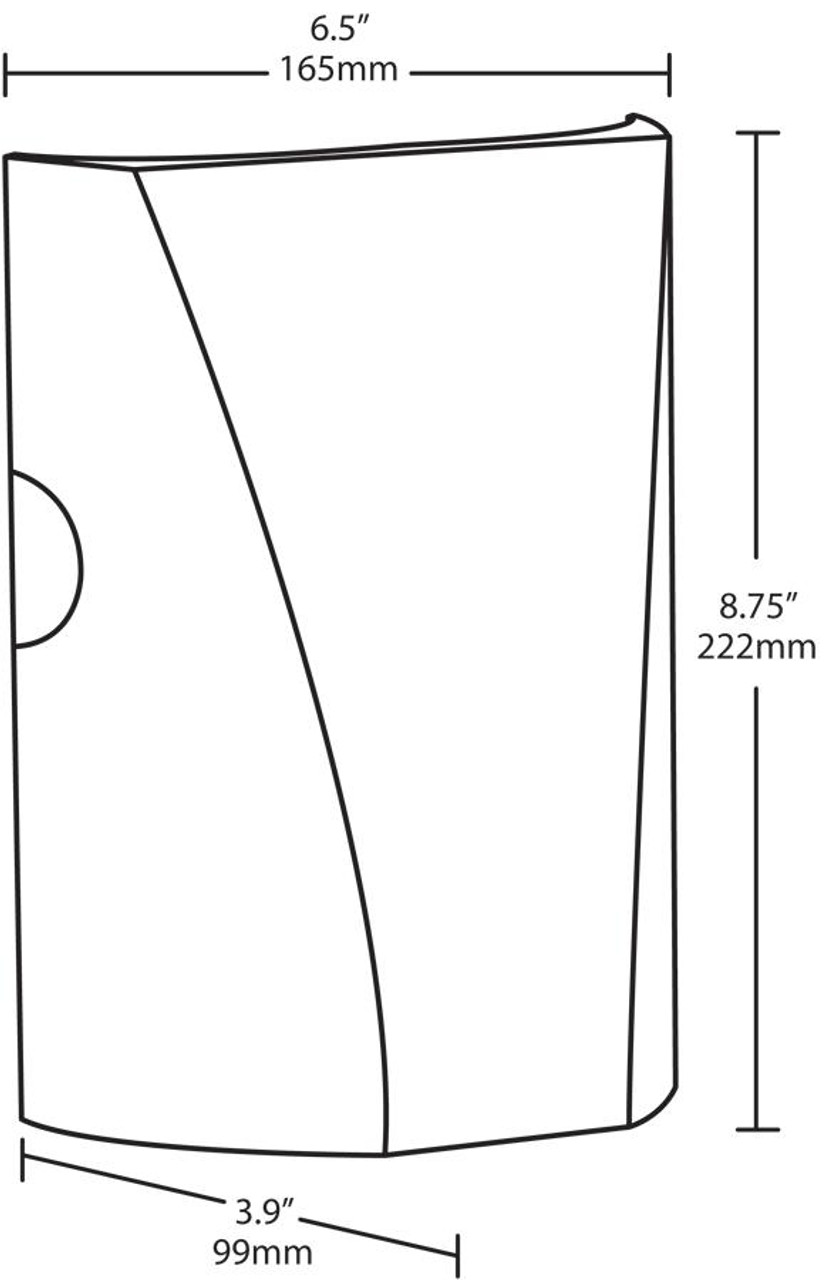

| Dimensions | 6.5" W × 8.75" H × 3.9" D |
| Recommended Mount Height | Up to 8 ft |
| Finish | White, long-lasting color |
Compliance & Safety
| Listings | UL Listed; DLC Premium (PGJBD3AQ) |
| IP / Location | IP66; Suitable for wet locations and within 4 ft of ground |
| ADA | ADA Compliant |
| Ambient Range | -40°F start, ≤104°F max ambient |
| RoHS | Mercury & UV free |
Application Examples
- Building entrances, exits, and perimeter egress lighting
- Schools, offices, and retail façades
- Walkways and corridors (full cutoff for reduced glare)
- Low-mount areas up to 8' height
Installation Tips
- Mount to a junction box or directly to the wall using the included wall mounting box and hinges for hands-free wiring.
- Use the built-in leveling bubble for alignment; apply silicone sealant around the box and any unused conduit entries.
- For 0–10V dimming, connect purple (V+) and pink/gray (V-) leads; cap the yellow aux lead if present.
- Confirm supply voltage (120–277V) and proper equipment grounding.
Frequently Asked Questions
Q: Can the SLIM12NW be installed as an uplight?
A: Yes, it can be mounted as a downlight or uplight.
Q: Is this model rebate-eligible?
A: It’s DLC Premium listed (Code PGJBD3AQ), which typically qualifies for top-tier utility rebates.
Q: What’s the ingress protection level?
A: IP66—dust tight and protected against powerful water jets.
Q: Does it support dimming?
A: Yes, 0–10V dimming down to 10% with a separate low-voltage dimming circuit.
Q: What’s the recommended mounting height?
A: Up to 8 feet for optimal coverage.
Q: How does it handle cold weather?
A: It starts reliably at -40°F (-40°C).
