Product Description

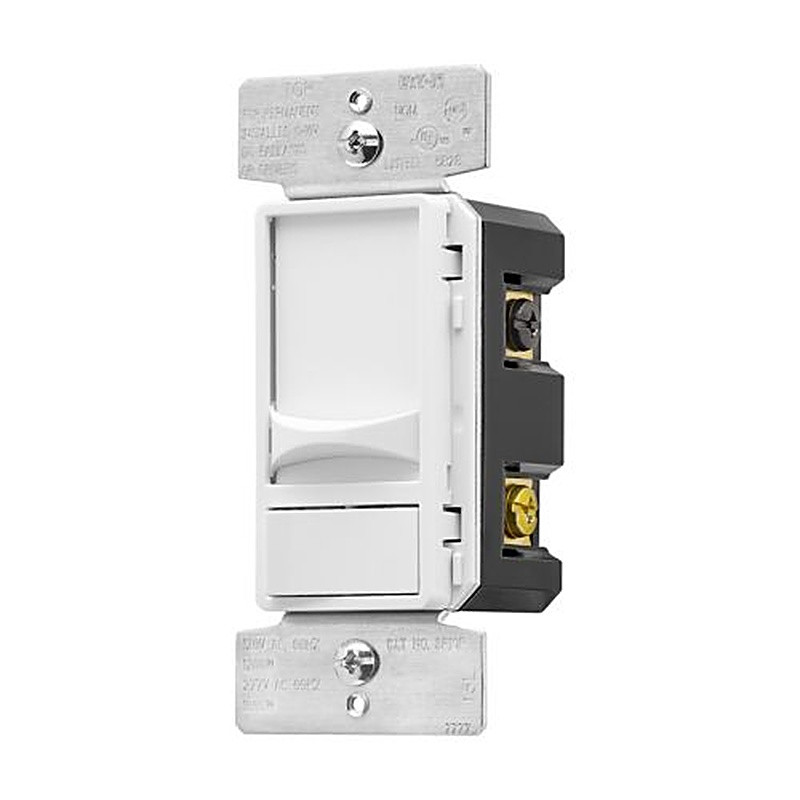

Eaton SF10P-W 0–10V Slide Dimmer is a no-neutral, maintained-action control designed for LED and fluorescent loads on 120/277 Vac circuits. It supports single-pole or three-way applications, offers back/side wiring with factory wire leads, and installs flush for a clean look in residential, commercial, and light-industrial spaces. Specs verified from the Eaton specification sheet.
Key Specs
- Voltage: 120/277 Vac, 60 Hz
- Wiring: Back & side, wire leads; #14–12 AWG
- Operation: Maintained; single-pole & three-way
- Load Types: LED, Fluorescent (0–10V)
- Power Rating: 1200/1660 W
- Color/Material: White, Polycarbonate
- Certifications: cULus, NOM
Why Buy Here?
- Free shipping on orders over $250
- Fast handling & expert support
- Commercial invoices & tax-exempt available
Product Benefits
- No neutral required for quick retrofit into existing switch boxes.
- Wide compatibility with 0–10V LED drivers and fluorescent ballasts for smooth dimming.
- Flexible control works in single-pole or three-way circuits to match site wiring.
- Durable build with polycarbonate body and maintained action for reliable daily use.
Key Features
- 0–10V control: Industry-standard low-voltage dimming interface.
- 120/277 Vac, 60 Hz: Suitable for residential and commercial mains.
- Back & side wiring with wire leads: Fast, versatile terminations for #14–12 AWG conductors.
- Single-phase, maintained: Consistent operation with clear set position.
- Flush mount: Streamlined appearance with decorator wallplates.
- cULus & NOM listed: Meets North American compliance standards.
Specifications
Technical Specs
| Catalog No. | SF10P-W |
| Voltage / Frequency | 120/277 Vac, 60 Hz |
| Phase | Single-phase |
| Circuit Type | Single-pole / Three-way |
| Control Interface | 0–10V |
| Special Feature | No neutral required |
Physical Specs
| Mounting | Flush |
| Material / Color | Polycarbonate, White |
| Dimensions (H × W × D) | 4.3 in × 2 in × 2 in |
| Weight | 0.233 lb |
| Torque Rating | 14 lbf-in |
Performance Specs
| Supported Loads | LED, Fluorescent (0–10V) |
| Power Rating | 1200 / 1660 W |
| Wiring Method | Back & side wiring with wire leads; #14–12 AWG |
| Closure Type | Maintained |
| Certifications | cULus, NOM |
| UPC | 032664736926 |
Application Examples
- Commercial offices and conference rooms needing 0–10V LED dimming.
- Classrooms and corridors with fluorescent ballasts.
- Retail and hospitality spaces requiring three-way control from two locations.
- Retrofit projects where no neutral is present in the switch box.
Installation Tips
- Verify the load uses a compatible 0–10V driver/ballast before installation.
- Use #14–12 AWG conductors; follow back/side wiring instructions and secure to 14 lbf-in.
- For three-way circuits, identify common/traveler conductors and maintain proper line/load orientation.
- Do not mix line-voltage and 0–10V control conductors in the same sheath unless rated; keep control low-voltage twisted pair where possible.
- Turn power off at the breaker and test with a non-contact voltage tester before wiring.
Frequently Asked Questions
Does this dimmer require a neutral wire?
No. This model is designed for installations where a neutral is not available, simplifying retrofits.
What loads are supported?
It is intended for 0–10V controlled LED drivers and fluorescent ballasts.
Can I use it in a three-way circuit?
Yes, the SF10P-W supports both single-pole and three-way applications.
What is the line voltage rating?
It operates on 120 Vac or 277 Vac at 60 Hz, suitable for residential and commercial sites.
What is the maximum power rating?
The specification lists 1200/1660 W total power rating. Always follow the fixture/driver manufacturer’s limits.
Is it compatible with non-dimmable loads?
No. Use only with dimmable 0–10V drivers/ballasts.
What wire size does it accept?
It supports #14–12 AWG conductors with back or side wiring and provided wire leads.
What color and material is the device?
White polycarbonate body for durability and a clean appearance.
