Product Description

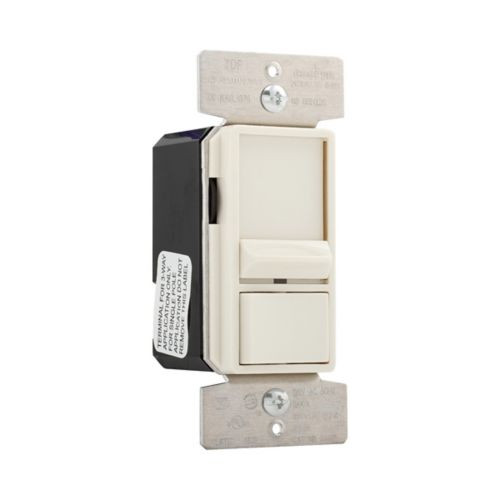

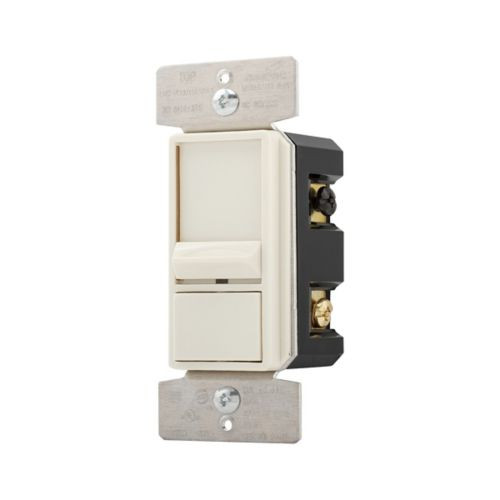

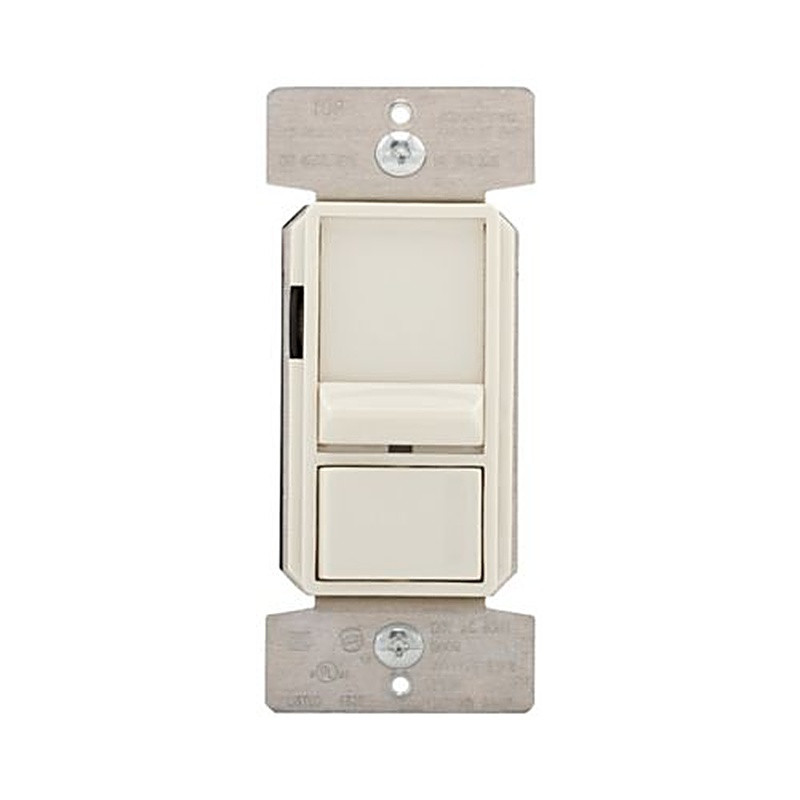

SF10P-LA Dimmer, No Neutral Required, 120/277 Vac, 60 Hz, Light Almond is an Eaton slide-style 0-10V dimming control designed for reliable lighting control in residential and commercial applications. Featuring an integrated ON/OFF preset switch and full-range linear slide control, this decorator dimmer supports single pole and 3-way wiring without requiring a neutral connection.
Product Summary
Free shipping on orders over $250
Quick Highlights
- No neutral required for simplified installation
- Preset ON/OFF switch returns lights to previous level
- Single pole or 3-way wiring capability
Product Benefits
- Simplified retrofits with no neutral wire required, ideal for older electrical installations.
- Consistent light levels using the preset feature that restores the previous brightness when switched on.
- Wide compatibility with dimmable LED and fluorescent 0-10V ballasts.
- Commercial-grade reliability suitable for offices, retail, education, and hospitality spaces.
Key Features
- Dimming method: 0-10V full-range, continuously variable slide control
- Switching: Integrated ON/OFF preset switch
- Wiring: Single pole and 3-way
- Neutral: Not required
- Wallplate: Compatible with decorator and screwless decorator wallplates
- Protection: Electrostatic discharge protection
Specifications
Electrical
| Input Voltage | 120 Vac, 60 Hz / 277 Vac, 60 Hz |
| Load Rating | 1200W @ 120V / 1660W @ 277V |
| Dimming Control Power | 0-10V DC, 200 mA |
Mechanical
| Device Type | Slide Dimmer, Decorator |
| Wiring Terminals | Back & Side Wire + 10V Leads |
| Finish | Gloss, Light Almond |
Compliance
| Listings | cULus Listed UL1472, NOM |
| Energy Code | California Title 20 Compliant |
| Temperature Rating | -20°C to 70°C |
Applications
- Commercial offices with 0-10V dimmable fixtures
- Retail spaces requiring smooth, precise dimming control
- Educational facilities using fluorescent or LED ballasts
- Hospitality environments needing preset lighting levels
- Residential installations with compatible 0-10V lighting systems
Installation Tips
- Confirm ballast compatibility with 0-10V dimmable LED or fluorescent drivers.
- Verify voltage matches 120V or 277V branch circuit.
- Use correct wiring method for single pole or 3-way applications.
- Turn power off before installation or servicing.
- Select matching wallplate separately to complete the installation.
FAQ
Does SF10P-LA require a neutral wire?
No. This dimmer is designed to operate without a neutral connection.
What types of lighting are compatible?
It is compatible with dimmable LED and fluorescent 0-10V ballasts.
Can this dimmer be used in a 3-way application?
Yes. It supports both single pole and 3-way wiring configurations.
What is the maximum load rating?
The rating is 1200W at 120V and 1660W at 277V.
Does it remember the last dimming level?
Yes. The preset ON/OFF switch returns lighting to the previous level.
Is a wallplate included?
No. Decorator-style wallplates are sold separately.
What finish does SF10P-LA have?
SF10P-LA is finished in Light Almond.
