Product Description

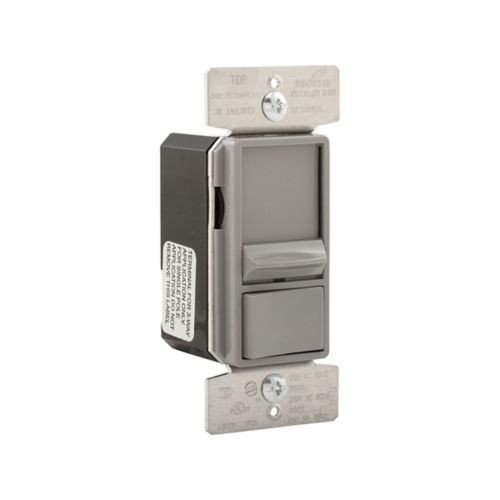

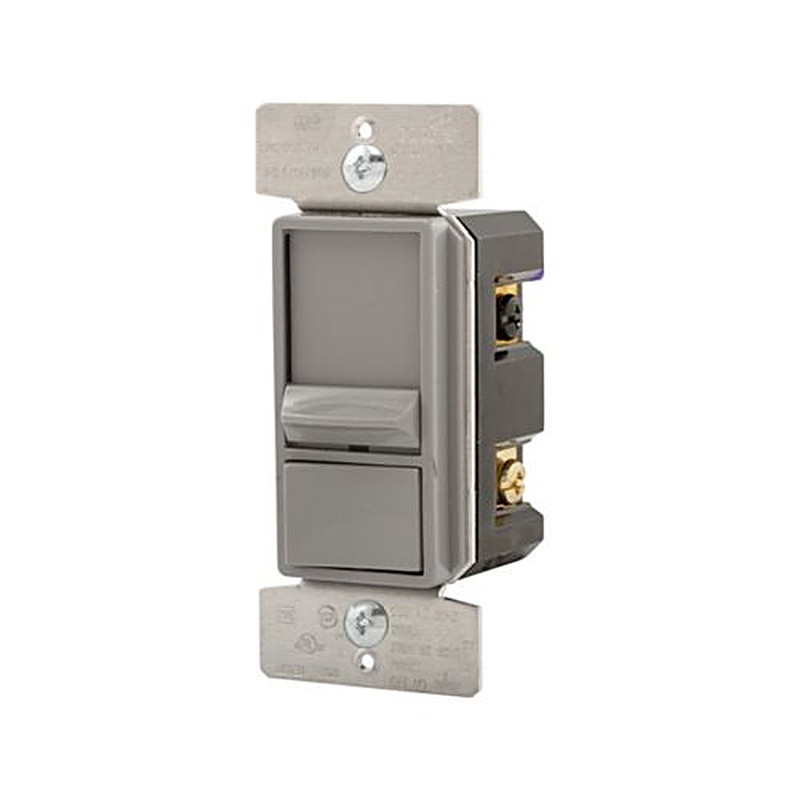

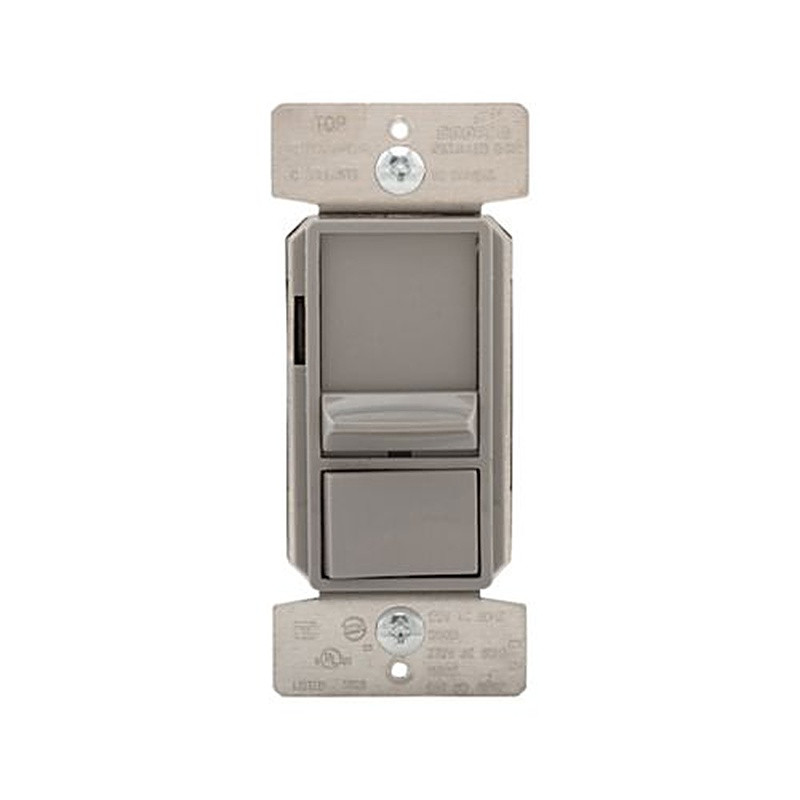

SF10P-GY Dimmer, No Neutral Required, 120/277 Vac, 60 Hz, Gray by Eaton is a decorator-style slide dimmer engineered for smooth, full-range 0-10V dimming of compatible LED and fluorescent lighting systems. With preset functionality, broad voltage support, and single pole or 3-way capability, this dimmer is ideal for commercial and residential applications requiring reliable 0-10V control without a neutral connection.
Quick Specs
- Voltage: 120V / 277V AC, 60 Hz
- Dimming Type: 0-10V DC
- Wiring: Single pole or 3-way
- Load Rating: 1200W @ 120V / 1660W @ 277V
- Dimming Control Power: 0-10V DC, 200 mA
- Neutral: Not required
- Finish: Gray
- Compliance: cULus Listed, NOM, California Title 20
Free shipping on orders over $250
Product Benefits
- Smooth 0-10V dimming: Provides continuous, flicker-minimized control for compatible LED and fluorescent ballasts.
- No neutral required: Simplifies retrofit installations in existing wallboxes.
- Preset convenience: ON/OFF switch returns lights to the previous brightness level.
- Commercial voltage ready: Supports both 120V and 277V systems.
Key Features
- 0-10V control: Compatible with dimmable LED and fluorescent 0-10V ballasts
- Integrated full-slide control: Precise, linear dimming adjustment
- Preset ON/OFF switch: Maintains selected light level
- Single pole & 3-way capable: One dimmer per multi-location circuit
- No neutral required: Ideal for retrofit applications
- Adjustable high-end trim: Optimizes lamp compatibility
- ESD protection: Enhanced durability and reliability
- Decorator form factor: Compatible with standard or screwless wallplates
Specifications
Technical
| Input Voltage | 120V / 277V AC, 60 Hz |
| Dimming Performance | 0-10V DC, full-range continuous |
| Control Output | 0-10V DC, 200 mA |
Load Ratings
| 0-10V LED / Fluorescent | 1200W @ 120V / 1660W @ 277V |
Physical & Compliance
| Form Factor | Decorator |
| Finish | Gray |
| Operating Temperature | -20°C to 70°C |
| Listings | cULus Listed to UL1472, NOM, California Title 20 |
Applications
- Commercial lighting: Offices, classrooms, corridors, and conference rooms.
- Architectural LED systems: Fixtures requiring 0-10V dimming control.
- Fluorescent retrofits: Compatible with 0-10V dimmable ballasts.
- Multi-location control: Spaces requiring single pole or 3-way dimming.
Installation Tips
- Disconnect power: Turn off the circuit breaker before installation.
- Neutral not required: Simplifies replacement of existing controls.
- Wire 0-10V leads correctly: Connect violet (+) and gray (-) control wires properly.
- Adjust high-end trim: Fine-tune maximum output for connected fixtures.
FAQ
What lighting types does this dimmer control?
This dimmer is designed for dimmable LED and fluorescent fixtures using 0-10V control ballasts or drivers.
Does this dimmer require a neutral wire?
No. A neutral wire is not required for installation.
Can it be installed in a 3-way application?
Yes. It supports both single pole and 3-way wiring configurations.
What voltages are supported?
The dimmer is rated for both 120V and 277V AC systems.
Does it remember the last brightness level?
Yes. The preset ON/OFF feature returns lighting to the previous dim level.
Is this dimmer compliant with energy codes?
Yes. It is compliant with California Title 20 requirements.
