Product Description

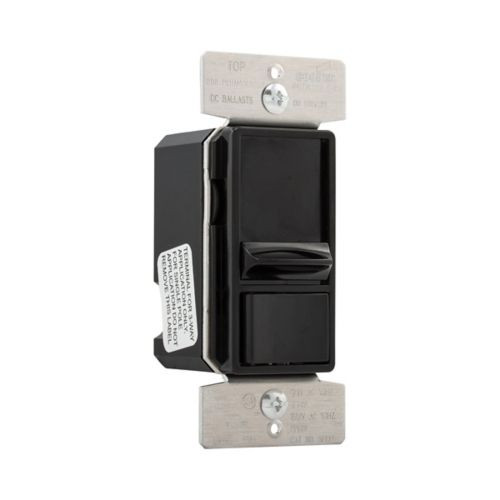

SF10P-BK Dimmer, No Neutral Required, 120/277 Vac, 60 Hz, Black is an Eaton slide-style 0-10V dimming control engineered for dependable performance in residential and commercial lighting systems. Featuring an integrated ON/OFF preset switch and smooth linear slide operation, this decorator dimmer supports single pole and 3-way wiring while eliminating the need for a neutral conductor.
Product Summary
Free shipping on orders over $250
Quick Highlights
- No neutral required for simplified retrofit installations
- Preset ON/OFF switch restores the previous light level
- Single pole & 3-way wiring flexibility
Product Benefits
- Ideal for retrofit applications where neutral wiring is unavailable.
- Consistent lighting levels using the preset feature for user comfort.
- Wide fixture compatibility with dimmable LED and fluorescent 0-10V ballasts.
- Commercial-grade construction for long-term reliability.
Key Features
- Dimming method: 0-10V full-range, continuously variable
- Control style: Linear slide with integrated ON/OFF preset
- Wiring: Single pole or 3-way
- Neutral: Not required
- Wallplate compatibility: Decorator and screwless decorator wallplates
- Protection: Electrostatic discharge protection
Specifications
Electrical
| Input Voltage | 120 Vac, 60 Hz / 277 Vac, 60 Hz |
| Load Rating | 1200W @ 120V / 1660W @ 277V |
| Dimming Control Power | 0-10V DC, 200 mA |
Mechanical
| Device Type | Slide Dimmer, Decorator |
| Wiring Terminals | Back & Side Wire + 10V Leads |
| Finish | Gloss, Black |
Compliance
| Listings | cULus Listed UL1472, NOM |
| Energy Code | California Title 20 Compliant |
| Operating Temperature | -20°C to 70°C |
Applications
- Commercial offices with 0-10V dimmable lighting systems
- Retail environments requiring precise light level control
- Educational facilities using LED or fluorescent ballasts
- Hospitality spaces needing preset lighting scenes
- Residential installations with compatible 0-10V drivers
Installation Tips
- Confirm ballast compatibility with 0-10V dimmable LED or fluorescent loads.
- Verify branch voltage is 120V or 277V before installation.
- Select proper wiring for single pole or 3-way applications.
- Turn power off prior to installation or servicing.
- Choose a matching wallplate separately for a finished appearance.
FAQ
Does SF10P-BK require a neutral wire?
No. This dimmer is designed to operate without a neutral connection.
What lighting loads are compatible?
It is compatible with dimmable LED and fluorescent 0-10V ballasts.
Can this dimmer be used in a 3-way circuit?
Yes. It supports both single pole and 3-way wiring configurations.
What is the maximum load rating?
The dimmer is rated for 1200W at 120V and 1660W at 277V.
Does it remember the last dimming level?
Yes. The preset ON/OFF switch returns lighting to the previous dimmed level.
Is a wallplate included?
No. Decorator-style wallplates are sold separately.
What finish does SF10P-BK have?
SF10P-BK features a black gloss finish.
