Product Description

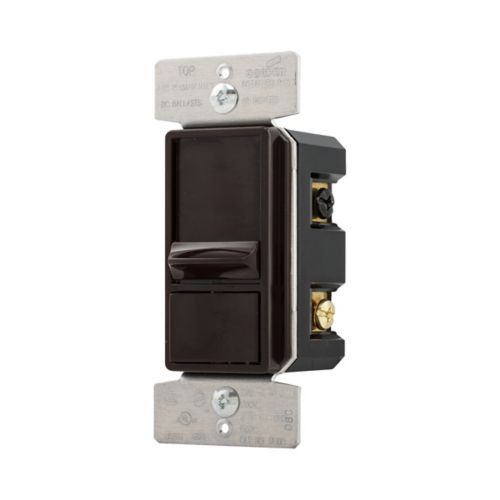

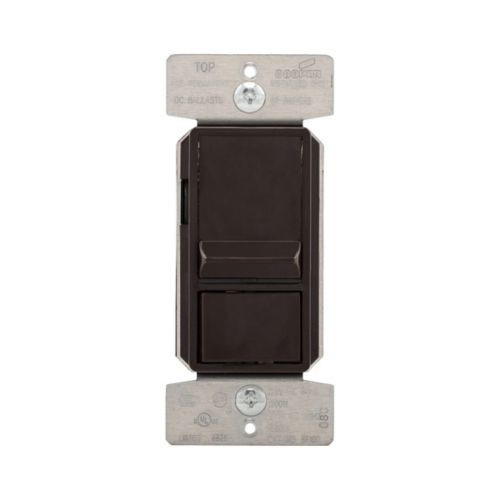

SF10P-B Dimmer, No Neutral Required, 120/277 Vac, 60 Hz, Brown is an Eaton slide-style 0-10V dimming control designed for dependable lighting performance in residential and commercial environments. Featuring an integrated ON/OFF preset switch and smooth full-range slide control, this decorator dimmer supports single pole and 3-way wiring without requiring a neutral connection.
Product Summary
Free shipping on orders over $250
Quick Highlights
- No neutral required for simplified installation
- Preset ON/OFF switch restores previous light level
- Single pole & 3-way wiring capability
Product Benefits
- Ideal for retrofit projects where a neutral wire is not available.
- Consistent lighting control using the preset function to return to the last dimmed level.
- Broad compatibility with dimmable LED and fluorescent 0-10V ballasts.
- Durable commercial-grade design suited for frequent daily use.
Key Features
- Dimming method: 0-10V full-range, continuously variable
- Control style: Linear slide with integrated ON/OFF preset
- Wiring: Single pole or 3-way
- Neutral: Not required
- Wallplate compatibility: Decorator and screwless decorator wallplates
- Protection: Electrostatic discharge protection
Specifications
Electrical
| Input Voltage | 120 Vac, 60 Hz / 277 Vac, 60 Hz |
| Load Rating | 1200W @ 120V / 1660W @ 277V |
| Dimming Control Power | 0-10V DC, 200 mA |
Mechanical
| Device Type | Slide Dimmer, Decorator |
| Wiring Terminals | Back & Side Wire + 10V Leads |
| Finish | Gloss, Brown |
Compliance
| Listings | cULus Listed UL1472, NOM |
| Energy Code | California Title 20 Compliant |
| Operating Temperature | -20°C to 70°C |
Applications
- Commercial offices using 0-10V dimmable lighting systems
- Retail spaces requiring smooth, repeatable dimming control
- Educational facilities with LED or fluorescent ballasts
- Hospitality environments where preset light levels are preferred
- Residential projects with compatible 0-10V drivers
Installation Tips
- Verify ballast compatibility with 0-10V dimmable LED or fluorescent loads.
- Confirm branch voltage is 120V or 277V prior to installation.
- Select correct wiring method for single pole or 3-way applications.
- Disconnect power before installing or servicing the dimmer.
- Order matching wallplate separately for a finished appearance.
FAQ
Does SF10P-B require a neutral wire?
No. This dimmer is designed to operate without a neutral connection.
What lighting types are supported?
It is compatible with dimmable LED and fluorescent 0-10V ballasts.
Can this dimmer be used in a 3-way circuit?
Yes. It supports both single pole and 3-way wiring configurations.
What is the maximum load rating?
The dimmer is rated for 1200W at 120V and 1660W at 277V.
Does the dimmer remember the last light level?
Yes. The preset ON/OFF switch returns lighting to the previous dimmed level.
Is a wallplate included?
No. Decorator-style wallplates are sold separately.
What color finish is SF10P-B?
SF10P-B is finished in Brown.
