Product Description

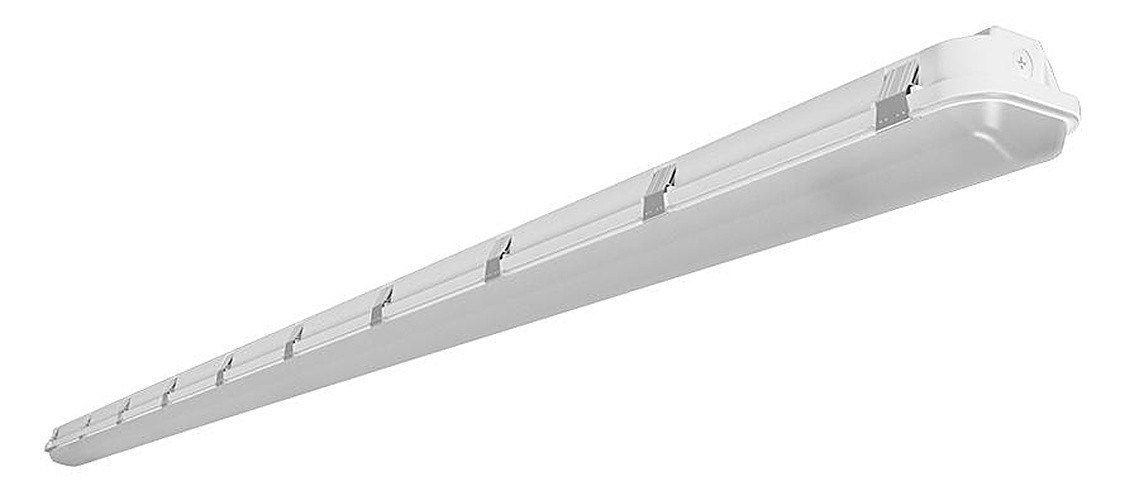

RAB SEAL8 Washdown is a field-adjustable 8-foot linear fixture delivering 8,220–13,700 lumens with selectable 100W/80W/60W power settings and 3500K/4000K/5000K color temperatures. Designed for harsh environments, this washdown-rated LED fixture is IP66 and NSF certified, making it ideal for food processing, industrial, and commercial applications where durability and sanitation are critical.
- Lumen Output: 8,220–13,700 lm
- Power: 100W / 80W / 60W field selectable
- Color Temperature: 3500K / 4000K / 5000K
- Voltage: 120–277V
- CRI: 80+
- IP Rating: IP66 washdown rated
- Certifications: UL Listed, NSF, DLC Premium
- Free shipping on orders over $250
Product Benefits
- Field-adjustable wattage and CCT provides installation flexibility.
- Washdown-rated and NSF certified for food-safe environments.
- Energy-efficient alternative to linear fluorescent fixtures.
- Durable construction with stainless steel hardware for long service life.
Key Features
- Selectable Power: 100W, 80W, or 60W
- Selectable CCT: 3500K, 4000K, 5000K
- Efficacy: 131–143 lm/W
- Lifespan: 100,000 hours (L70)
- Dimming: 0-10V dimming down to 10%
- Surge Protection: 2.5kV
- Housing: Impact-resistant polycarbonate with stainless steel clips
- Mounting: Includes surface brackets and V-Hooks
Technical Specifications
Electrical Specs
| Input Voltage | 120–277V, 50/60Hz |
| Driver Type | Constant Current, Class 2 |
| Power Factor | ≥0.95 |
| THD | <12% |
Performance Specs
| Lumen Output | 8,220–13,700 lm |
| Efficacy | 131–143 lm/W |
| Color Temp | 3500K / 4000K / 5000K |
| CRI | 80+ |
| Lifespan | 100,000 hours (L70) |
Construction Specs
| Housing | Polycarbonate with stainless steel door clips |
| Lens | Diffuse polycarbonate |
| Reflector | Cold-rolled steel |
| Gasket | High-temperature silicone |
| Weight | 14.9 lbs |
Compliance & Safety
| Certifications | UL Listed, NSF Certified, FCC Part 15B |
| NEMA Rating | 4X (corrosion resistant) |
| IP Rating | IP66 (dust and water tight) |
| DLC | DLC Premium Listed (Code: S-PEIZB4) |
Application Examples
- Food processing facilities
- Cold storage warehouses
- Commercial kitchens
- Industrial washdown areas
- Parking structures and canopies
Installation Tips
- Fixture includes snap-on surface brackets and V-Hooks for chain mounting.
- Ensure all gaskets are seated properly for watertight performance.
- Use weatherproof silicone sealant on unused conduit entries.
- Follow all NEC and local code requirements for safe wiring.
Frequently Asked Questions
Q: What wattage options are available?
A: The SEAL8 can be field-set at 100W, 80W, or 60W.
Q: Can I adjust the color temperature?
A: Yes, selectable CCT options include 3500K, 4000K, and 5000K.
Q: Is this fixture NSF certified?
A: Yes, it is NSF certified for food-safe applications.
Q: Does it support dimming?
A: Yes, it supports 0-10V dimming down to 10%.
Q: What is the IP rating?
A: The SEAL8 is IP66 rated, making it dustproof and water-resistant.
Q: What is the expected lifespan?
A: It is rated for 100,000 hours of operation (L70).
Q: Can this replace fluorescent fixtures?
A: Yes, it replaces up to (6) F32T8 or (3) F96T8 lamps.
Q: Is it suitable for cold environments?
A: Yes, it starts reliably in temperatures as low as -40°C.
