SB500W Outdoor Sensors Smart Box 180 Sensor 500W 120V White

Product Description

RAB SB500W Smart Box Outdoor Motion Sensor (White) adds reliable 180° motion-activated control to exterior lights, switching up to 500W incandescent at 120V and featuring daylight sensing, manual override, and an oversize wall plate that fits a single-gang cast box.

Benefits

• Hands-free security & convenience—lights turn on when motion is detected and off after the set delay.
• Energy savings via adjustable daylight sensing for night-only or 24-hour operation.
• Fast setup with a 5-second quick-test mode and “no-hands” auto-test to finish commissioning.
• Durable outdoor design—UL wet-location rating, RF-shielded circuitry, and surge protection.

Key Features

• 180° detection with tilt-down aiming to fine-tune coverage along building sides.
• Manual override by double-flipping the wall switch; automatically resets at dawn or after ~8 hours.
• Adjustable time, light level & sensitivity controls for site-specific tuning.
• Oversize wall plate fits a single-gang cast box for a clean, vandal-resistant install.
• Compatible with most electronic ballasts (not for instant-start ballasts).

Specifications

Technical Specs

Input Voltage	120V AC, 60Hz
Control Range	Time delay adjustable from 5 seconds to 15 minutes; daylight (photocell) adjustable for night-only or 24-hour operation
Manual Override	Double-flip wall switch logic; auto-reset after ~8 hours or at dawn
Surge / RF	3000V surge protection; fully shielded for RF immunity
Listings	UL Listed; suitable for wet locations
Compliance	BAA option may be available upon request

Electrical / Load Ratings

Incandescent (remote)	Up to 500W @ 120V
Fluorescent (remote)	Up to 240W @ 120V
Lights mounted to sensor	Switches up to 240W
Power Consumption	Negligible
Circuit Rating	5 A

Physical Specs

Color / Finish	White

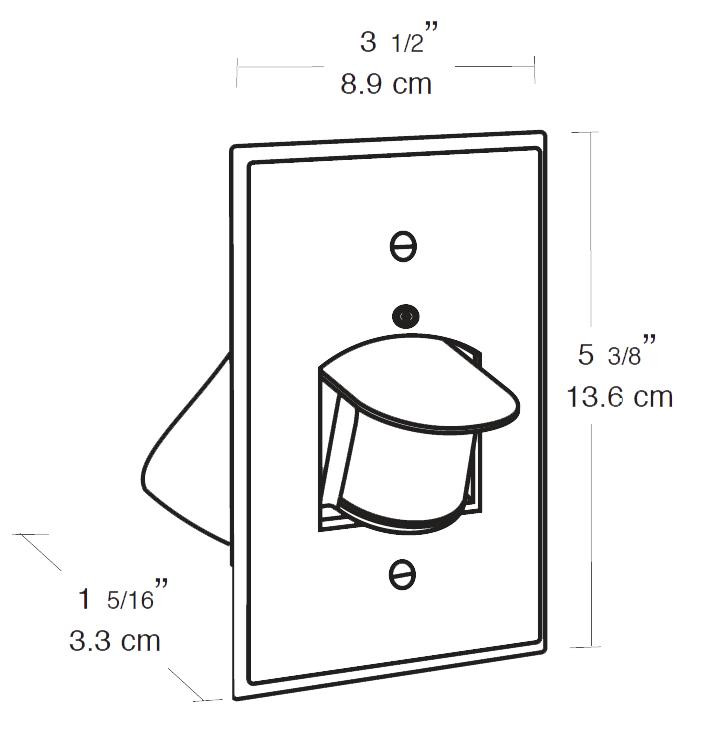

Plate Dimensions	3-1/2" W × 5-3/8" H
Projection	Approx. 1-5/16" D
Weight	0.3 lb
Mounting	Single-gang cast box; oversize wall plate included

Performance

Detection	180° coverage with tilt-down adjustment; sensitivity adjustable
Indicators	Red LED “on-guard” deterrent
Quick Test	5-second test for rapid commissioning

Application Examples

• Entry doors, porches and side yards
• Walkways, driveways and alleyways
• Perimeter and security lighting
• Small commercial storefronts and loading doors

Installation Tips

• Turn OFF power; follow NEC and local codes.
• Mount about 5–8 feet high for best coverage; aim so motion travels across the sensor, not directly toward it.
• Avoid circuits feeding motor loads (HVAC, appliances, garage doors) to prevent false triggers.
• Keep the sensor below and away from hot fixtures; use the 5-second Quick Test for aiming and walk tests.
• Use lens masks or tilt-down to limit range near roads or unwanted areas; seal around the wall plate for wet-location integrity.

Frequently Asked Questions

Is the SB500W rated for outdoor use?
Yes. It is UL Listed and suitable for wet locations.

How much load can it switch?
Up to 500W incandescent or 240W fluorescent (remote mount). If the lights are mounted directly to the sensor box, it switches up to 240W.

Can I run it during the day?
Yes. The photo control is adjustable for 24-hour operation or night-only.

How do I keep the lights on continuously?
Use the manual override by flipping the wall switch twice within 5 seconds; it will reset automatically at dawn or after roughly 8 hours.

What’s the detection coverage?
Wide 180° coverage with tilt-down aiming and adjustable sensitivity for site tuning.

Will it work with electronic ballasts or LED drivers?
It’s compatible with most electronic ballasts; do not use with instant-start ballasts.

Does it have surge and RF protection?
Yes—electronics are RF-shielded and rated for surges up to 3000V.
