Product Description

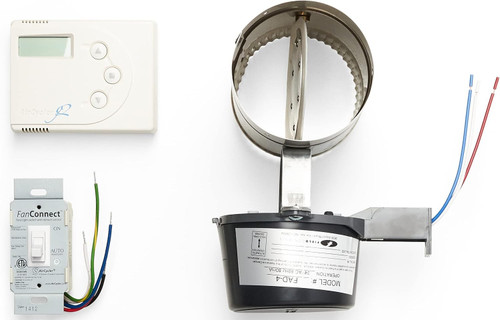

SACG2K-08 SelectCycler System is a whole house ventilation kit optimized for energy-efficient homes using 8” ductwork. This advanced ventilation solution includes a programmable wall controller, a FanConnect™ switch, and a motorized 8" stainless steel damper. Compatible with Panasonic WhisperGreen Select fans, the system supports Hybrid or Balanced modes and is fully programmable to meet ASHRAE 62.2 standards using patented run-time algorithms.
Brand: Panasonic / AirCycler
Model: SACG2K-08
Damper Size: 8" Diameter Stainless Steel
Voltage: 24 VAC controller & damper, 120 VAC FanConnect™ switch
Warranty: 6 years with WhisperGreen fan purchase
Free shipping on orders over $250
Product Benefits
- Meets ASHRAE 62.2 ventilation code with hybrid or balanced airflow strategies
- Reduces energy waste by using advanced runtime calculation logic
- Enhances IAQ with programmable hours of operation and fan delay controls
- Designed for larger homes with 8” duct requirement and powerful airflow management
Key Features
- Advanced Controller: LCD interface with programmable flow or time-based logic
- FanConnect™ Wall Switch: Operates bathroom fan/light with override control
- Motorized 8” Damper: Stainless steel, power open/close in 15 seconds
- Flexible Modes: Hybrid, Balanced, or Supply-Only configurations
- UL/cUL Safety Listings: All components certified to national standards
Technical Specifications
| Specifications | |
|---|---|
| Model | SACG2K-08 |
| Damper Size | 8" diameter stainless steel |
| Damper Voltage | 24 VAC, 0.125 A, 15 sec transit |
| Controller Voltage | 24 VAC (up to 30 VAC) |
| Controller Draw | 0.07 Amps |
| FanConnect™ Switch | 120 VAC ±10%, Fan: 150W, Light: 450W |
| Wiring Requirement | Minimum 19 AWG |
Application Examples
- Large residential homes requiring 8" duct airflow
- Energy Star® certified builds needing hybrid ventilation
- ASHRAE 62.2 compliant HVAC installations
- Smart home applications using automated IAQ systems
Installation Tips
- Install damper as close to return plenum as possible for efficiency
- Mount controller on wall near HVAC system or in mechanical closet
- Power system using 24VAC transformer for both controller and damper
- Ensure fresh air intake is ≥10 ft. from pollutant sources and ≥3 ft. above grade
- Interrupt G wire during installation to allow AirCycler® to control fan cycling
Frequently Asked Questions
Q: What is the duct size supported by the SACG2K-08 model?
A: The SACG2K-08 kit includes an 8" stainless steel damper, ideal for high airflow residential systems.
Q: How does the controller determine fan run time?
A: It uses a patented algorithm in either Calculated Flow or Calculated Time mode based on measured airflow and ASHRAE standards:contentReference[oaicite:0]{index=0}.
Q: What happens if the exhaust fan runs longer than needed?
A: The system will indicate an error via the blinking EXH icon if the FanConnect™ switch exceeds 4 hours:contentReference[oaicite:1]{index=1}.
Q: Can the damper be installed vertically?
A: Yes, it can be installed in any position, but horizontal with the motor at 12 o'clock is recommended for optimal reliability:contentReference[oaicite:2]{index=2}.
Q: Is the system safe for bathroom exhaust fan use?
A: Yes, the FanConnect™ switch can control both fan and light, rated up to 150W fan and 450W light load:contentReference[oaicite:3]{index=3}.
Q: Does the controller need a common (C) wire?
A: Yes, the AirCycler® g2 controller requires a 24VAC common connection for power:contentReference[oaicite:4]{index=4}.
