Product Description

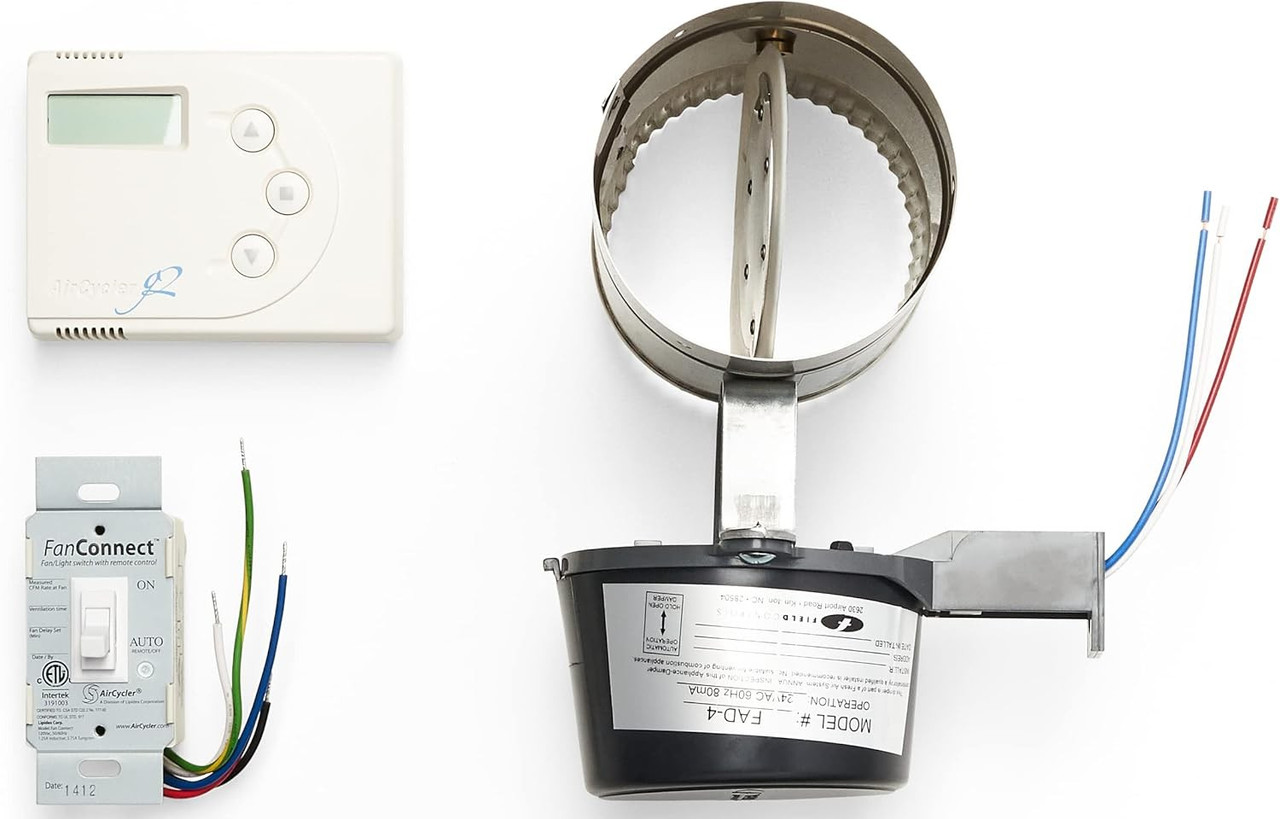

SACG2K-04 SelectCycler System is a comprehensive whole house ventilation kit featuring a wall-mounted controller, a FanConnect™ switch, and a 4" stainless steel motorized damper. Designed to work with Panasonic WhisperGreen Select fans, this system intelligently balances fresh air intake and exhaust ventilation to meet ASHRAE 62.2 standards. With flexible installation and programmable setup via LCD interface, it ensures energy-efficient, code-compliant indoor air quality control in residential environments.
Brand: Panasonic / AirCycler
Model: SACG2K-04
Damper Size: 4" Diameter, Stainless Steel
Controller Voltage: 24 VAC (up to 30 VAC max)
Switch Voltage: 120 VAC ±10%
System Modes: Hybrid / Balanced / Supply Only
Warranty: 6 years (with WhisperGreen fan)
Free shipping on orders over $250
Product Benefits
- Provides code-compliant ventilation per ASHRAE 62.2
- Reduces energy usage with demand-based supply and exhaust control
- Minimizes over-ventilation through intelligent algorithmic cycles
- Compatible with ultra-quiet Panasonic WhisperGreen Select fans
Key Features
- LCD Wall Controller: Programmable run time, CFM calculations, and delay settings
- FanConnect™ Switch: Operates exhaust fan and optional light with override functionality
- 4" Motorized Damper: 24VAC, power-open/power-close operation, stainless steel construction
- Flexible Setup: Choose between calculated flow or time-based setup
- UL/cUL Listed: All components tested to national safety standards
Technical Specifications
| Specifications | |
|---|---|
| Model | SACG2K-04 |
| Damper Size | 4" diameter |
| Damper Transit Time | 15 seconds |
| Controller Voltage | 24 VAC (up to 30 VAC max) |
| Damper Power Draw | 3W (transit), 1W (idle) |
| Switch Voltage | 120 VAC ±10% |
| Fan Load | 150W max |
| Light Load | 450W max |
| Wiring Requirements | Minimum 19 AWG |
Application Examples
- Single-family homes needing ASHRAE-compliant ventilation
- LEED, CALGreen, and ENERGY STAR® certified construction
- Retrofit installations requiring precise indoor air quality management
- High-efficiency builds using Panasonic WhisperGreen Select fans
Installation Tips
- Mount damper close to the air handler on the fresh air inlet duct
- Install controller on wall near thermostat or inside mechanical closet
- Always power damper and controller using 24VAC transformer
- Ensure exhaust intake is 10’ from pollutant sources and 3’ above grade
- Use proper wiring per diagram; interrupt the G wire as required
Frequently Asked Questions
Q: What size damper is included in the SACG2K-04 kit?
A: This kit includes a 4" stainless steel motorized damper suitable for standard ducting applications.
Q: Can I use this with multi-speed fans?
A: Yes, but fans should be set to a single-speed mode when using the FanConnect™ switch.
Q: What’s the difference between Calculated Flow and Calculated Time setup?
A: Calculated Flow uses CFM data to determine runtime, while Calculated Time sets runtime in minutes per hour manually.
Q: Is the system UL listed?
A: Yes, all components are evaluated by UL and cUL to meet safety requirements:contentReference[oaicite:0]{index=0}.
Q: How do I wire the controller?
A: Refer to the included wiring diagram; ensure the controller is powered with 24VAC and the G wire is correctly interrupted:contentReference[oaicite:1]{index=1}.
Q: Is the damper position critical for airflow?
A: While the damper can be installed in any position, horizontal mounting with the motor at 12 o’clock is recommended for reliability:contentReference[oaicite:2]{index=2}.
