Product Description

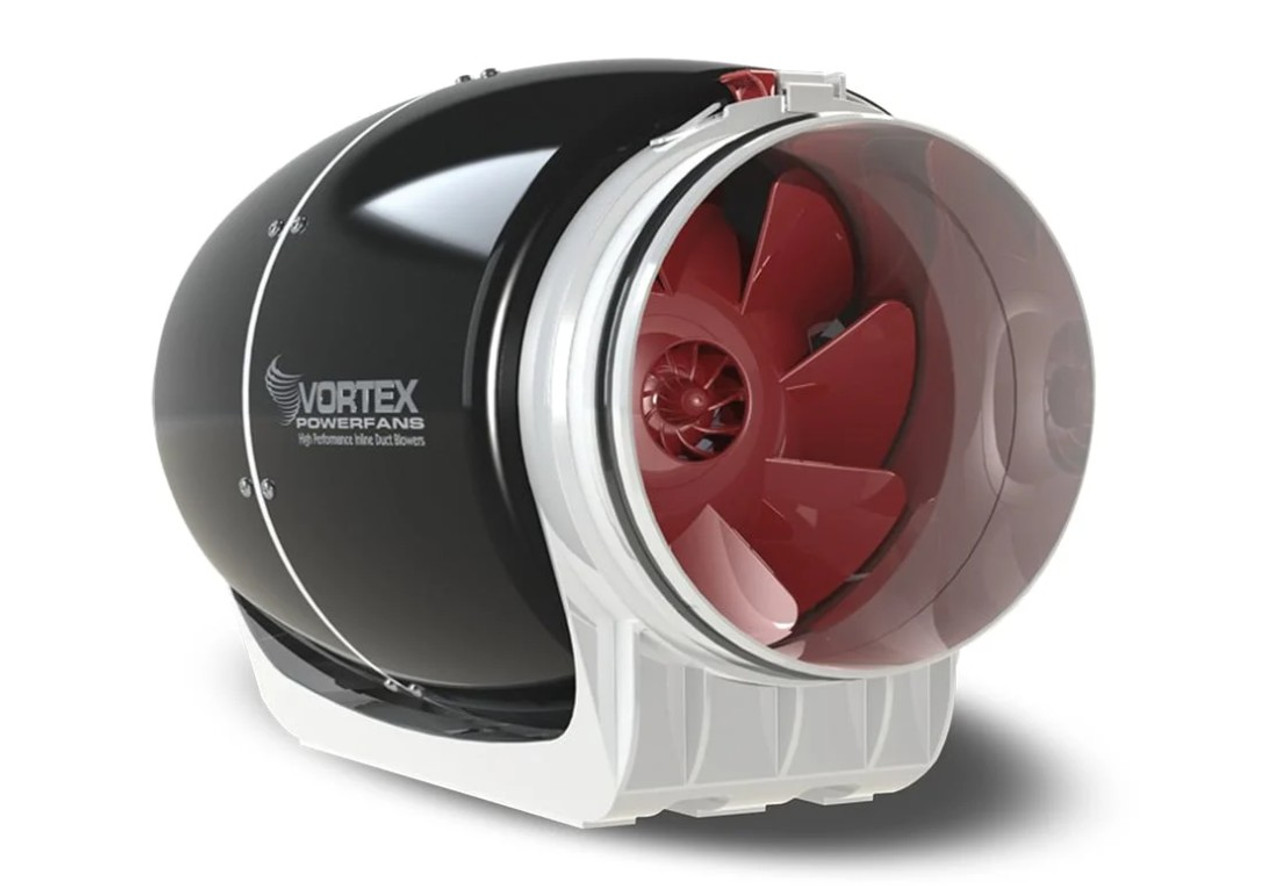

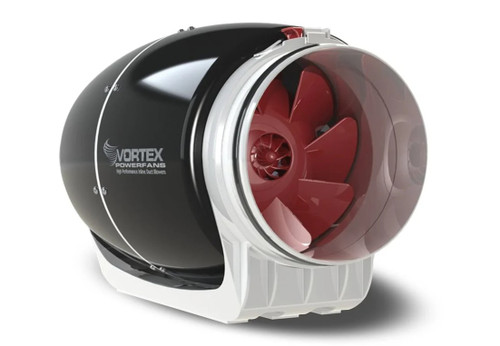

S-800 Atmosphere Inline Fan is a robust 8" inline duct fan from the S-Series, engineered to deliver high airflow performance with low noise levels. With an airflow capacity of 688 CFM at 0.2" static pressure and a mixed-flow impeller for superior efficiency, this model is ideal for residential and commercial ventilation setups requiring durable, quiet, and energy-efficient solutions.
Brand: Atmosphere / Panasonic
Model: S-800
Duct Size: 8"
Airflow: 688 CFM @ 0.2” SP
Power: 232W / 1.99 Amps
Housing: Polycarbonate with double insulation
Warranty: 10-Year Manufacturer’s Warranty
Free shipping on orders over $250
Product Benefits
- Delivers powerful ventilation for large grow rooms, HVAC zones, or industrial spaces
- Double-insulated housing minimizes sound and condensation buildup
- Tool-less flange access simplifies maintenance and installation
- Integrated backdraft damper prevents air leakage when the unit is idle
Key Features
- High-Performance Mixed Flow Impeller: Maximizes airflow with reduced noise
- 100% Speed Controllable: Adjust output to match system demand
- Built-In Thermal Protection: Automatically resets after overheating
- ETL and AMCA Listed: Meets U.S. and Canadian safety and airflow standards
- Heavy-Duty Polycarbonate Housing: Impact-resistant casing ideal for demanding environments
Technical Specifications
| Technical Specs | |
|---|---|
| Input Voltage | 120V |
| Frequency | 60 Hz |
| Power | 232 Watts |
| Amperage | 1.99 Amps |
| Speed (RPM) | 3150 RPM |
| Speed Control | Solid-state compatible |
| Performance Specs | |
|---|---|
| Max CFM | 711 CFM |
| CFM @ 0.125” SP | 657 CFM |
| CFM @ 0.2” SP | 688 CFM |
| CFM @ 1.0” SP | 562 CFM |
| Maximum Static Pressure | 1.844” W.G. |
| Physical Specs | |
|---|---|
| Duct Diameter | 8" |
| Length | 16.64" |
| Height | 12.17" |
| Width | 10.38" |
| Weight | 13.2 lbs |
| Compliance & Safety | |
|---|---|
| Certifications | ETL Listed, AMCA Air Listed |
| Overload Protection | Yes, thermal reset |
| Warranty | 10-Year Limited Manufacturer Warranty |
Application Examples
- Hydroponic and grow room ventilation
- Residential or commercial duct boosting
- Exhaust for workshops, attics, or greenhouses
- Server rooms or electronics cooling systems
Installation Tips
- Detach fan using the LIFT-button and security tab for bracket access
- Secure mounting bracket to a stable structure using included hardware
- Attach ducting to the mounting bracket, then re-secure fan assembly
- Maintain at least 1 meter clearance from accessible duct openings
- Ensure airflow is directed outward and vented to the exterior
Frequently Asked Questions
Q: What is the airflow capacity at 0.2” static pressure?
A: The S-800 delivers 688 CFM at 0.2" SP and up to 711 CFM maximum airflow.
Q: Does it include thermal overload protection?
A: Yes, the motor includes automatic reset thermal overload protection.
Q: Can this fan be installed in a grow tent or greenhouse?
A: Absolutely, the S-800 is ideal for grow room exhaust and filtration systems.
Q: Is this fan loud during operation?
A: No, its mixed flow impeller and insulated casing ensure quiet operation.
Q: Can the fan speed be controlled?
A: Yes, it is compatible with solid-state speed controllers for full range control.
Q: What type of housing does the fan use?
A: It’s built with a heavy-duty polycarbonate casing for durability and insulation.
Q: What is the installation process like?
A: The fan includes a tool-free locking flange and mounting bracket system for fast setup.
Q: Does this unit include a backdraft damper?
A: Yes, it has an integrated damper to prevent reverse airflow when not in use.
