Product Description

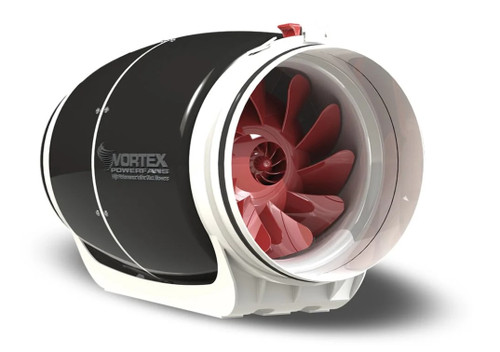

S-600 Atmosphere Inline Fan is a high-performance 6" S-Series inline duct fan engineered for efficient and quiet ventilation in demanding environments. Designed with a mixed flow impeller and acoustically insulated housing, this unit offers powerful airflow at low noise levels—ideal for HVAC, hydroponics, or general exhaust applications requiring 312 CFM at up to 2.2" static pressure.
Brand: Atmosphere / Panasonic
Model: S-600
Duct Size: 6"
Airflow: 312 CFM
Static Pressure: Up to 2.2"
Speed Control: 100% variable
Housing: Double-insulated polycarbonate
Warranty: 10-Year Manufacturer’s Warranty
Free shipping on orders over $250
Product Benefits
- Delivers quiet yet powerful ventilation with a mixed flow impeller
- Double-insulated casing reduces vibration and condensation
- Backdraft damper prevents air leakage when fan is off
- Perfect for duct boosting, grow rooms, workshops, and attic ventilation
Key Features
- High-Impact Polycarbonate Housing: Built for durability in rugged environments
- 100% Speed Controllable: Easily adjust airflow to suit specific needs
- ETL & AMCA Listed: Compliant with North American safety and airflow standards
- Thermal Overload Protection: Automatically resets if overheated
- Tool-Free Mounting: Unique LIFT-button system simplifies installation
Technical Specifications
| Technical Specs | |
|---|---|
| Input Voltage | 120V |
| Frequency | 60 Hz |
| Power | 72W |
| Amperage | 0.68 Amps |
| Speed (RPM) | 2720 RPM |
| Mounting System | Lift-button locking flange |
| Performance Specs | |
|---|---|
| Max CFM | 340 CFM |
| CFM @ 0.25” SP | 312 CFM |
| CFM @ 1.0” SP | 265 CFM |
| CFM @ 2.0” SP | 146 CFM |
| Maximum Static Pressure | 2.2” W.G. |
| Physical Specs | |
|---|---|
| Duct Diameter | 6" |
| Length | 15.37" |
| Width | 9.02" |
| Height | 12.81" |
| Weight | 10.6 lbs |
| Compliance & Safety | |
|---|---|
| Certifications | ETL Listed, AMCA Air Listed |
| Thermal Protection | Auto-Reset Thermal Overload |
| Warranty | 10-Year Limited Warranty |
Application Examples
- Grow room air circulation and carbon filter ventilation
- Residential HVAC and duct boosting for long runs
- Bathroom, attic, and crawlspace ventilation
- Light industrial exhaust applications
Installation Tips
- Detach fan from the flange using the lift-button system
- Secure the mounting bracket to a fixed structure with provided screws
- Install ductwork to both ends before re-securing the fan housing
- Ensure the backdraft damper is functional and vented outdoors
- Do not install within one meter of any accessible duct opening
Frequently Asked Questions
Q: What is the airflow capacity of the S-600?
A: It delivers up to 312 CFM at 0.25” static pressure, and 340 CFM maximum.
Q: Can the fan speed be adjusted?
A: Yes, the motor is 100% speed controllable using compatible speed controllers.
Q: Is this fan quiet?
A: Yes, the mixed flow impeller and insulated casing minimize operating noise.
Q: What material is the housing made of?
A: The S-600 uses high-impact polycarbonate with acoustic insulation for strength and noise control.
Q: Can this be used in an attic?
A: Yes, it's suitable for attic installation but must be vented to unoccupied space and installed per code.
Q: Is the fan prewired?
A: Yes, it includes an integrated terminal for direct wiring. Follow the provided installation guide.
Q: What type of thermal protection is included?
A: The fan has a built-in thermal overload protection with automatic reset.
Q: What’s the recommended maintenance?
A: Inspect annually for dust buildup and wipe the impeller clean with a damp cloth as needed.
Q: What’s the warranty coverage?
A: It includes a 10-year manufacturer warranty from Atmosphere.
