RR-PROC3-KIT Lutron Radiora 3 All-in One Processor Starter Kit- Includes

Product Description

Lutron RR-PROC3-KIT RadioRA 3 All-in-One Processor Starter Kit is a complete smart lighting control solution designed to power, manage, and automate RadioRA 3 systems. This all-in-one kit includes the processor, mounting hardware, PoE injector, and Ethernet cables, providing everything needed to configure, control, and monitor lighting, shades, and connected devices through the Lutron App or integrated smart home systems.

Product Benefits

• All-in-one starter kit includes processor, PoE injector, and mounting accessories for streamlined installation.
• Enables centralized control of lighting, shades, and smart devices via mobile app or automation schedules.
• Scalable system supports large installations with up to 200 devices and multiple processors.
• Seamless integration with major smart home ecosystems enhances automation and user convenience.

Key Features

• Complete Kit: Includes processor, shelf-mount adapter, PoE injector, and Ethernet cables
• App-Based Control: Setup, monitor, and control via Lutron App
• Scene Control: Create and manage custom lighting scenes
• Timeclock Scheduling: Automate daily lighting events
• Remote Access: Control system from anywhere
• Smart Integration: Compatible with Alexa, Apple HomeKit, Google Assistant, and more
• PoE Powered: Simplified installation with Ethernet-based power
• Fail-Safe Operation: Devices continue to function if internet is lost
• Expandable System: Supports additional repeaters and processors

Specifications

Technical Specifications

Power Supply	PoE (IEEE 802.3af/at/bt)
Power Consumption	1.5W typical, 4.0W max
Connection	Ethernet (Cat5e minimum)
Max Cable Length	328 ft (100 m)
Wireless Frequency	2.4 GHz (Type X), 434 MHz (Type A)
Range	Up to 75 ft (Type X devices)
Operating Temperature	0°C to 40°C
Humidity	0% to 90% non-condensing

System Capacity

Processors per System	Up to 4
Clear Connect Type X Devices	Up to 200
Clear Connect Type A Devices	Up to 198
Repeaters	Up to 4

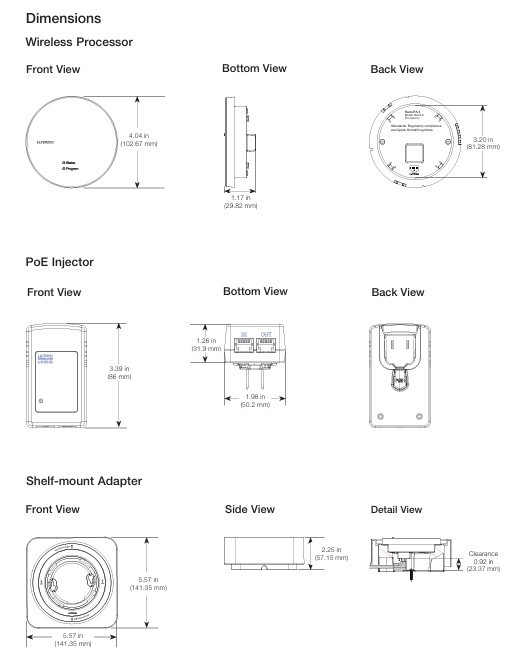

Physical & Kit Contents

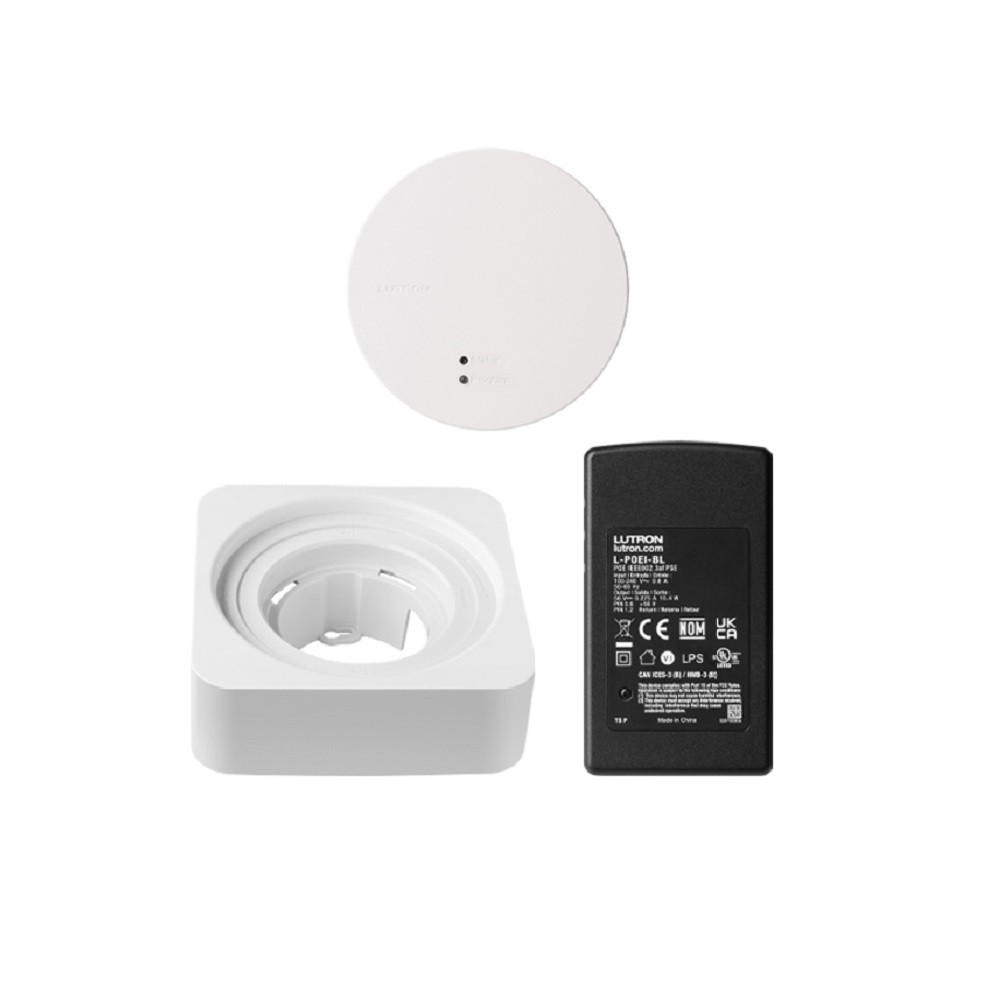

Included Components	Processor, shelf-mount adapter, PoE injector, 6 ft Ethernet cable, 3 ft Ethernet cable
Mounting Options	Shelf mount (included), optional recessed or junction box adapters
Installation	Central location recommended for optimal wireless performance

Applications

• Whole-home smart lighting control systems
• Commercial lighting automation projects
• Integration with shading and A/V systems
• Residential smart home upgrades
• Centralized lighting management in large properties

Installation Tips

• Install processor in a central location to maximize wireless coverage.
• Maintain at least 5 ft distance from sources of wireless interference.
• Use Cat5e or higher Ethernet cable for reliable connectivity.
• Ensure PoE power source complies with IEEE 802.3af/at/bt standards.
• Keep PoE wiring indoors and avoid installation in metal enclosures.

FAQ

What does this starter kit include?

The kit includes a RadioRA 3 processor, shelf-mount adapter, PoE injector, and Ethernet cables for installation.

Can I control the system remotely?

Yes, the system can be controlled remotely using the Lutron App from anywhere with internet access.

Does the system work without internet?

Yes, local device operation continues even if the internet connection is lost.

How many devices can this system support?

It supports up to 200 Clear Connect Type X devices and 198 Type A devices per system.

Is this compatible with voice assistants?

Yes, it integrates with Amazon Alexa, Apple HomeKit, and Google Assistant.

How is the processor powered?

The processor is powered via Power over Ethernet (PoE).

Can I expand the system later?

Yes, additional processors and repeaters can be added to expand system capacity.

Where should the processor be installed?

It should be installed in a central indoor location to ensure optimal wireless communication.
