Product Description

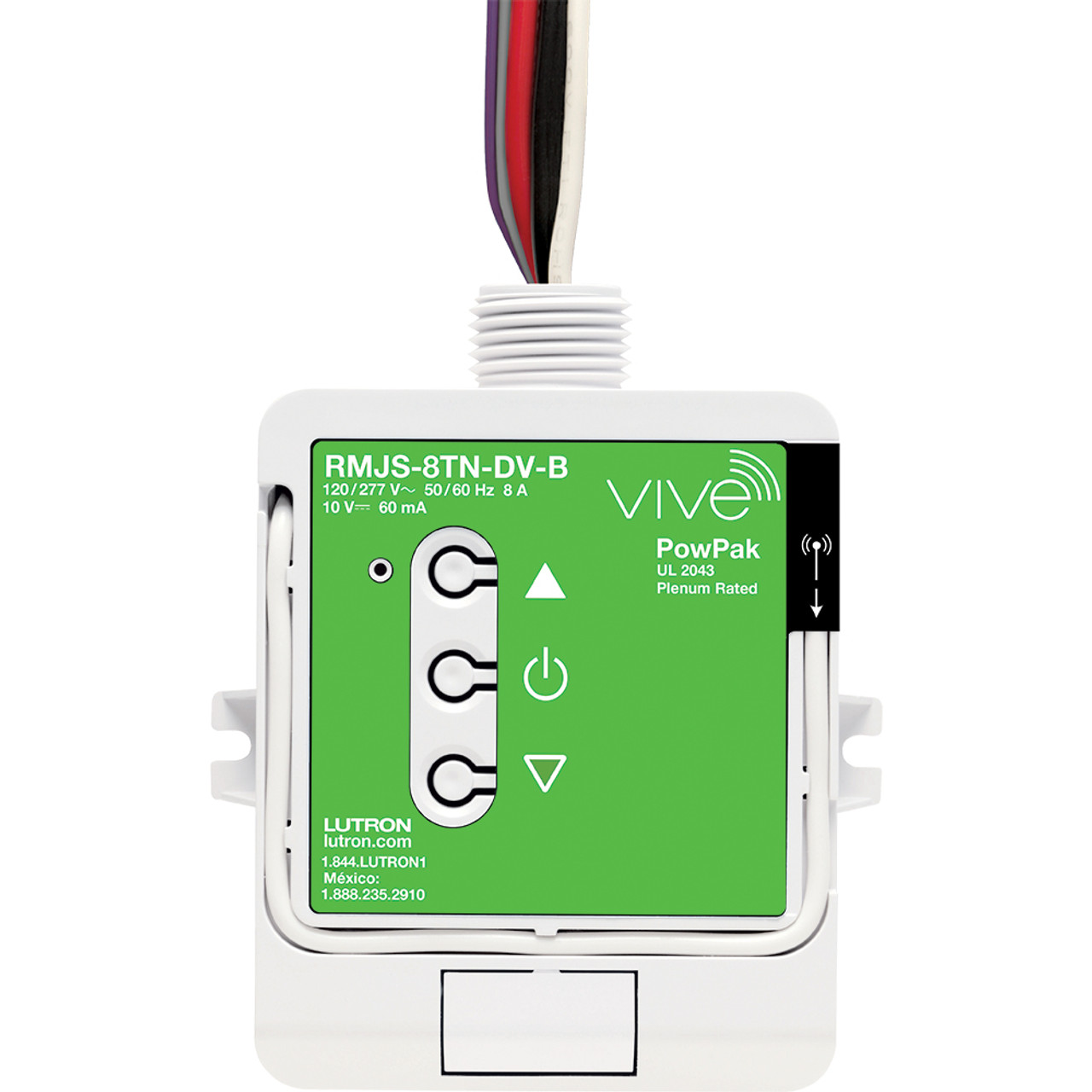

Lutron RMJS-8TN-DV-B Vive PowPak Dimming Module provides reliable wireless 0–10V control for LED drivers and fluorescent ballasts. Designed for commercial lighting systems, this 120/277V module communicates via Clear Connect RF Technology at 434 MHz and integrates with Pico remotes, Radio Powr Savr sensors, and Vive hub systems for flexible, scalable lighting control.
Model: RMJS-8TN-DV-B
Input Voltage: 120/277 Vac, 50/60 Hz
Frequency Band: 433.05–434.79 MHz
Load Capacity: 8A switching output
Control Output: 0–10V, up to 60 mA sourcing/sinking
Mounting: External to junction box through ½" knockout
Technology: Lutron Clear Connect RF
System Range: Up to 60 ft (18 m) line-of-sight
Free Shipping: On orders over $250
Product Benefits
- Wireless installation—reduces wiring complexity and labor time by eliminating control wiring between sensors and fixtures.
- Scalable performance—can function standalone or integrate with Vive hub systems for networked building control.
- Seamless compatibility—works with Lutron Pico remotes, Radio Powr Savr occupancy and daylight sensors.
- Energy-efficient operation—provides dimming control down to 0% with programmable high/low trims for maximum savings.
Key Features
- Operates 0–10V-controlled ballasts or LED drivers up to 60 mA total load.
- 8A switch capacity for resistive or capacitive loads.
- High/low-end trim configurable directly on the device for precise lighting levels.
- Clear Connect RF Technology ensures reliable, interference-free communication.
- Mounts externally to junction boxes for easy accessibility and optimal RF range.
Specifications
Electrical & Performance
| Operating Voltage | 120/277 Vac, 50/60 Hz |
| Load Rating | 8A total, resistive or capacitive |
| Control Output | 0–10V dimming, 60 mA max (source/sink) |
| Standby Power | 550–610 mW typical |
| Communication Frequency | 433.05–434.79 MHz (Clear Connect RF) |
| Range | 60 ft line-of-sight or 30 ft through walls |
Physical & Environmental

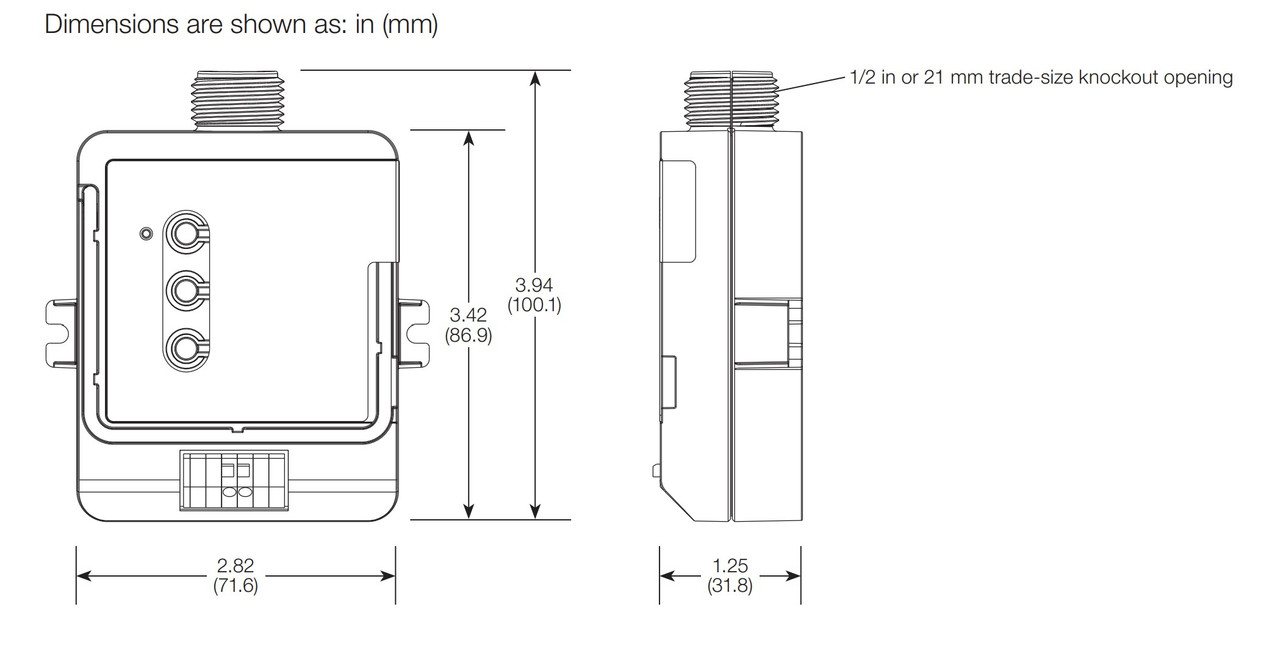

| Dimensions | 3.94" H × 3.42" W × 1.25" D (100 × 87 × 32 mm) |
| Mounting | External ½" knockout; U.S.-style junction box |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Humidity | 0–90%, non-condensing |
| For Indoor Use | Yes |
Compliance & Safety
| Certifications | UL Listed, FCC Compliant, NOM & COFETEL (Mexico) |
| Plenum Rated | Yes, per NEC 300.22(C)(3) |
| Warranty | 1-year limited (extendable to 5 years with registration) |
Application Examples
- Classrooms and offices—enables daylight harvesting and occupancy-based dimming.
- Conference rooms—wirelessly pairs with Pico scene remotes for intuitive control.
- Open office layouts—easily integrates with Vive hub for centralized scheduling.
- Retrofit projects—installs externally to junction boxes for quick upgrades.
Installation Tips
- Mount the module externally to a junction box; do not install inside metal enclosures.
- Maintain RF line-of-sight within 60 ft for best performance.
- Wire 0–10V controls using Class 1 or Class 2 methods per NEC standards.
- Pair sensors and Pico remotes before ceiling installation to simplify setup.
- Consult local electrical codes for plenum or environmental air space installations.
FAQ
What does the RMJS-8TN-DV-B control?
It operates 0–10V dimmable ballasts and LED drivers for up to 60 mA combined current load.
What is the difference between RMJS-8TN-DV-B and RMJS-8T-DV-B?
Both offer identical functionality; the “N” variant may denote specific revisions or network optimizations for regional compliance.
Can it integrate with a Vive hub?
Yes. Adding a Vive hub allows remote monitoring, scheduling, and advanced configuration via a web browser.
What RF frequency does it use?
Operates on 433.05–434.79 MHz Clear Connect RF band for robust communication.
Is it compatible with Pico remotes?
Yes. Supports up to 10 Pico remotes and 10 Radio Powr Savr occupancy sensors per module.
Does it support daylight sensors?
Yes. One Radio Powr Savr daylight sensor can be connected per module.
Is it plenum rated?
Yes, suitable for installation in environmental air spaces.
Can it be used for emergency lighting?
No, use model RMJS-8T-DV-B-EM for emergency operation applications.
What is the wireless range?
Up to 60 ft line-of-sight, or 30 ft through typical walls.
What’s the warranty?
Standard 1-year limited warranty, extendable to 5 years upon registration.
