Product Description

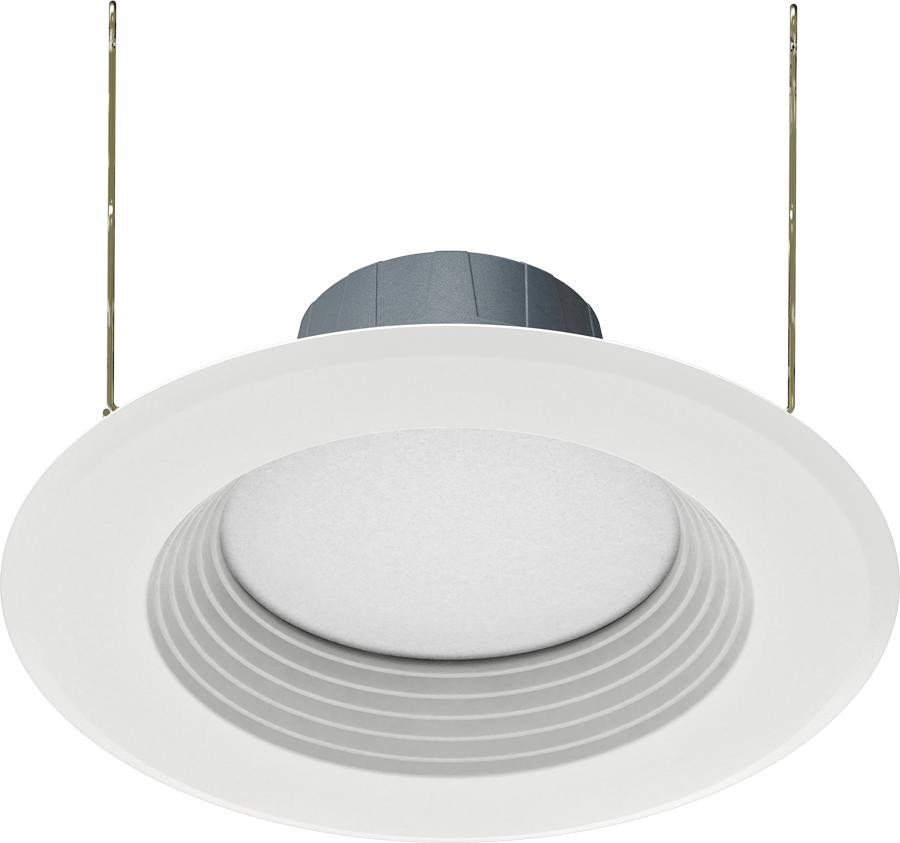

RAB R6R8830120WB Retrofit Downlight delivers a high-performance, energy-efficient LED solution designed to replace traditional 75W incandescent fixtures. Offering 880 lumens of warm 3000K illumination, this 6-inch retrofit baffle downlight combines easy installation, durable construction, and long-lasting performance for both residential and commercial applications.
Brand: RAB Lighting
Model: R6R8830120WB
Lumen Output: 880 lm
Wattage: 8W (replaces 75W incandescent)
Color Temperature: 3000K (Warm White)
Voltage: 120V
CRI: 80
Rated Life: 50,000 Hours
Trim Style: Baffle, Matte White Finish
Certification: ENERGY STAR®, UL Classified, NEC Compliant
Free Shipping on orders over $250
Product Benefits
- Energy Efficient: Consumes only 8 watts while delivering 880 lumens—up to 85% energy savings compared to incandescent bulbs.
- Easy Installation: Equipped with torsion springs and an E26 socket adapter for quick retrofit into most 5" or 6" recessed housings.
- Long Lifespan: 50,000-hour rated LED lifespan minimizes maintenance and replacement costs.
- Versatile Performance: Ideal for both wet and dry locations—suitable for residential, retail, or hospitality environments.
Key Features
- High Performance LEDs: Up to 110 lumens per watt efficacy.
- Dimming Capability: Compatible with TRIAC dimmers, allowing dimming down to 5%.
- Durable Build: Constructed from robust steel sheet metal with a frosted polycarbonate diffusion lens.
- Environmentally Friendly: Mercury and UV free; RoHS compliant.
- Cold Weather Rated: Operates in temperatures as low as -22°F (-30°C).
Enhanced Specifications
| Technical Specifications | |
|---|---|
| Input Voltage | 120V, 60Hz |
| Power Factor | ≥ 0.9 |
| THD | < 20% |
| Dimming | TRIAC dimmer compatible down to 5% |
| Driver Type | Constant Current |
| Physical Specifications | |
|---|---|
| Shape | Round |
| Trim Style | Baffle |
| Lens | Frosted Polycarbonate Diffuser |
| Finish | Matte White |
| Dimensions | Ø 7-3/8” x 2-3/4” height |
| Weight | 0.8 lbs |
| Performance & Compliance | |
|---|---|
| Lumen Output | 880 Lumens |
| Efficacy | 110 lm/W |
| Color Temperature | 3000K Warm White |
| CRI | 80+ |
| Operating Temp | -22°F to 104°F (-30°C to 40°C) |
| Certifications | ENERGY STAR®, UL Classified for Wet Locations, NEC Compliant |
| Warranty | 5-Year No-Compromise Warranty |
Application Examples
- Residential recessed lighting upgrades
- Hospitality and hotel corridors
- Retail stores and showrooms
- Offices and conference rooms
- Kitchens, bathrooms, and wet areas
Installation Tips
- Ensure power is turned off before installation.
- Remove existing trim and bulb, then screw in the included E26 adapter.
- Connect the downlight and compress torsion springs into housing brackets.
- Push fixture flush to ceiling for a seamless fit.
- Only install in luminaires designed for LED retrofit use; do not use incandescent lamps in this fixture.
Frequently Asked Questions
Q: Is this retrofit suitable for wet locations?
A: Yes, it is UL classified for wet locations, making it ideal for bathrooms and covered outdoor applications.
Q: Can I use this fixture in a 5-inch housing?
A: Yes, it’s compatible with most 5" and 6" recessed housings.
Q: Does it support dimming?
A: Yes, it’s compatible with TRIAC dimmers and can dim down to 5%.
Q: What is the color temperature of this model?
A: The R6R8830120WB emits a warm 3000K color temperature.
Q: What is the lifespan of the LED module?
A: It’s rated for 50,000 hours based on LM-80 and TM-21 standards.
Q: Is this fixture Energy Star rated?
A: Yes, it’s ENERGY STAR® Version 1.0 certified.
Q: What’s included in the package?
A: One retrofit downlight, an E26 socket adapter, and a compliance sticker.
Q: Can I install it in cold environments?
A: Yes, it starts reliably at -22°F (-30°C).
Q: Is there a warranty?
A: RAB provides a 5-year no-compromise warranty covering performance, color stability, and finish.
